Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Decorative Materials Track Purlin Stud And Track Roll Forming Machine | Dimension(L*W*H): | 6500 Mm*1500 Mm*1500 Mm |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Working Speed: | 30 M/min - 50 M/min |
| Material Thickness: | 0.3 Mm - 0.8 Mm | Type: | New |
| High Light: | ridge cap roll forming machine,metal stud roll forming machine |
||

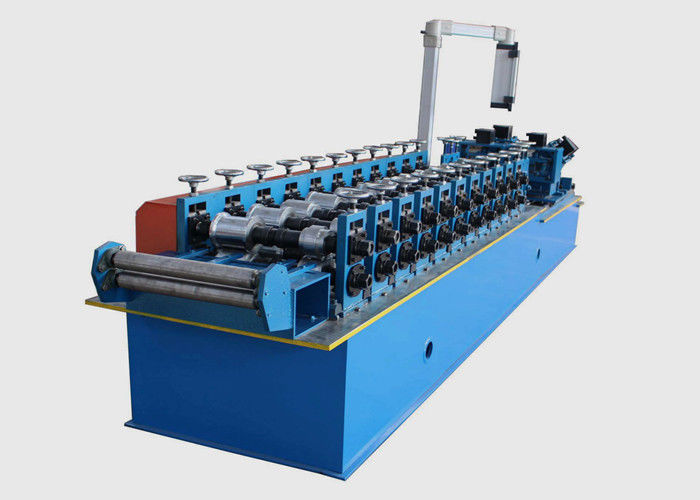

Metal Decorative Materials Track Purlin Stud and Track Roll Forming Machine
Profile
Also can punch the hole and lettering
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 20-30 GA |
| 3 | Working Speed | 30-50 m/min |
| 4 | Roller Station | 14 Raws |
| 5 |
Dimension (L*W*H) |
6000 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 4500 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
