Convenient Roll Forming Machine Components High Speed 10 - 30 M / Min

Convenient Roll Forming Machine Components  High Speed 10  - 30 M / Min
Convenient Roll Forming Machine Components  High Speed 10  - 30 M / Min Convenient Roll Forming Machine Components  High Speed 10  - 30 M / Min

Large Image :  Convenient Roll Forming Machine Components High Speed 10 - 30 M / Min

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: 5T- Auto Hydraulic Decoiler With Car
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20 ' FLC
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 100 Sets Per Month
Detailed Product Description
Product Name: 5 Tons Fully Automatic Hydraulic Coil Decoiler Roll Forming Machine Accessories Coil Material: Galvalume, Galvanized, PPGI, Aluminum,Copper
Dimension(L*W*H): 2600 Mm*1600 Mm* 1750 Mm Coil Width: 925 Mm - 1250 Mm
Working Speed: 10 M/min - 30 M/min Loading Weigth: 5 Tons
High Light:

roll forming machine accessories

,

roll forming machine parts

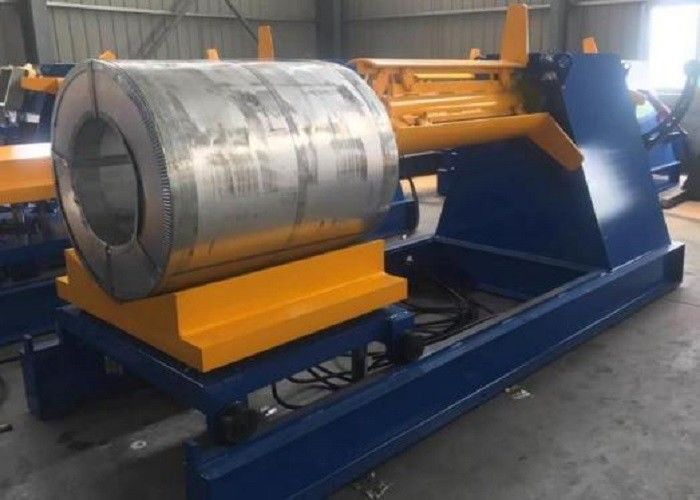

5 Tons Fully Automatic Hydraulic Coil Decoiler Roll Forming Machine Accessories







Specification



5 Tons Fully Automatic Hydraulic Coil Decoiler Parameter



No. Item Description
1 Dimension (L*W*H) 2600 mm*1600 mm*1750 mm
2 Weight 2.5 Tons
3

Hydraulic Pump

5-way solenoid valve, 3kw, 380 V

4

Motor power

4kw, cycloid reducer

5

Frame

Base with 300H GB I-beam, the box is welded with16mm thick steel plate

6

Main shaft

Thick-walled seamless steel tube, diameter 194*45 mm

7

Feeding width

925 mm-1250 mm(can be customized)

8

Coil inner diameter

470-530 mm,± 2 mm

9

Loading weight

5 tons

10

Hydraulic cylinder

cylinder diameter 125mm, 1 (plus rotation)

11

Computer control system

Taiwan Delta inverter (5.5kw), and domestic Zhengtai electrical control parts, inverter





5 Tons Fully Automatic Loading Car Parameter



N0. Item Description
1

Lifting

Double cylinder, diameter 90mm, stroke 240mm

2

Forward

450 #, hydraulic motor

3

Dimensions(L*W)

1250 Mm*1100 m

4

Car Track

1.05 m *2.5 m (L*W)

5

Trip Distance

0.4 m height, 2.5 m length

6

Weight

900 KG

7

Moving Speed

2 m / min





Advantages



1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong             strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
