Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally  Install
Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally  Install Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally  Install

Large Image :  Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Mega Rib
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: USA Mega Rib Panel Metal Roofing Wall And Roof Panels Roof Roll Forming Machine Raw Material: Galvalume, Galvanized, PPGI, Aluminum
Condition: New Forming Speed: 20 - 30 M/min
Control System: PLC Warranty: 1 Year
High Light:

highway guardrail making machine

,

guard rail roll forming machine

USA Mega Rib Panel Metal Roofing Wall And Roof Panels Roof Roll Forming Machine

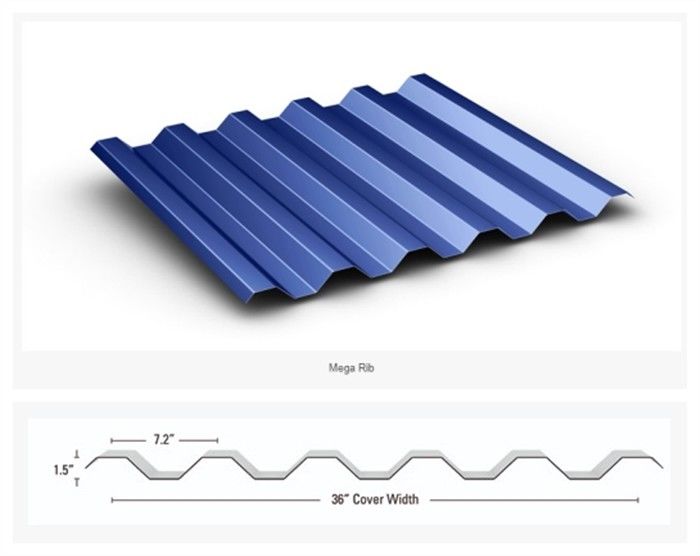

Mega-Rib is a 7.2 exposed fastener panel that provides optimum strength and spanning capabilities. Mega-Rib is a metal roof and wall panel that is equally well suited for industrial and commercial applications. Installed horizontally, Mega-Rib's bold ribs provide a hard to beat architectural statement.





Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 20-30 GA
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 19 Raws
5

Dimension (L*W*H)

6500 mm*1500 mm*1500 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

5KW
9

Hydraulic Station Power

4 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
