Name: EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Sandwich Panel Roll Forming Machine
Price: 40,500.00 USD
Availability: InStock

Home > Products > Sandwich Panel Roll Forming Machine >

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

Place of Origin:

china

Brand Name:

FMS

Certification:

Model Number:

Sandwich Panel Roll Forming Machine

Request A Quote

Product Details

Diameter Of Shaft:

70mm Or As Your Requirement

Material Of Shafts:

High Grade 45# Forged Steel

Cutting Blade:

Cr12 Mould Steel With Quenched Treatment

Forming Speed:

8-15m/min

Cutting Blade Material:

Cr12Mov, Heat Treatment

Power Supply:

380V, 3 Phase, 50Hz

Shaft Material:

High Grade 45# Steel, Diameter 70mm

Thickness:

0.3-0.8mm

Forming Steps:

11 Stations

Power:

5.5KW

Material Width:

1200mm

Highlight:

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiable

Packaging Details

Naked with Plastic Film.

Delivery Time

45 worl days

Payment Terms

T/T, L/C

Supply Ability

20sets per month

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Get Best Price

Video

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Get Best Price

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Get Best Price

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Get Best Price

Contact Now

Product Description

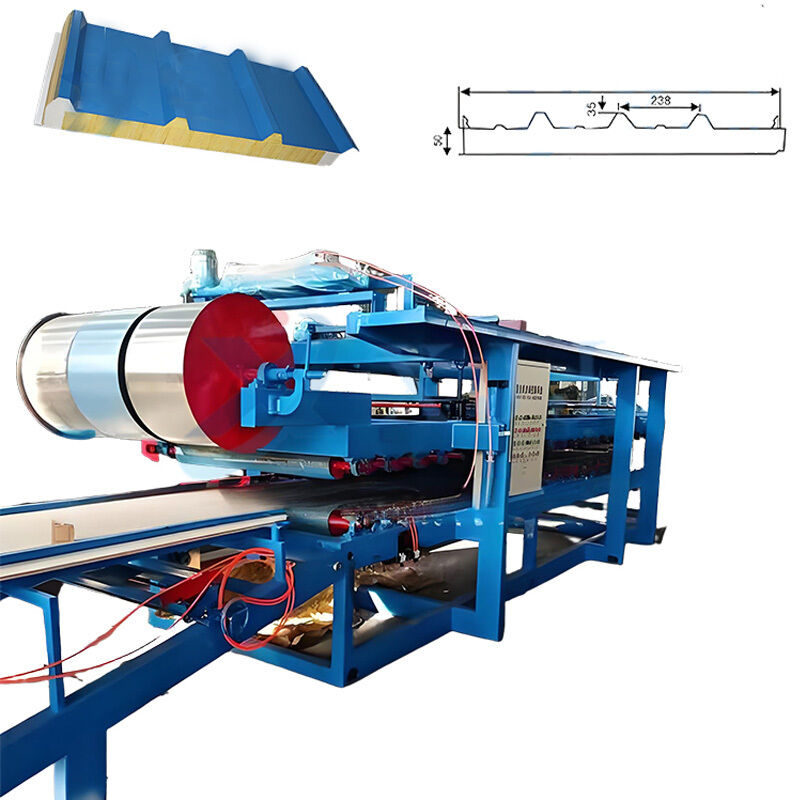

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

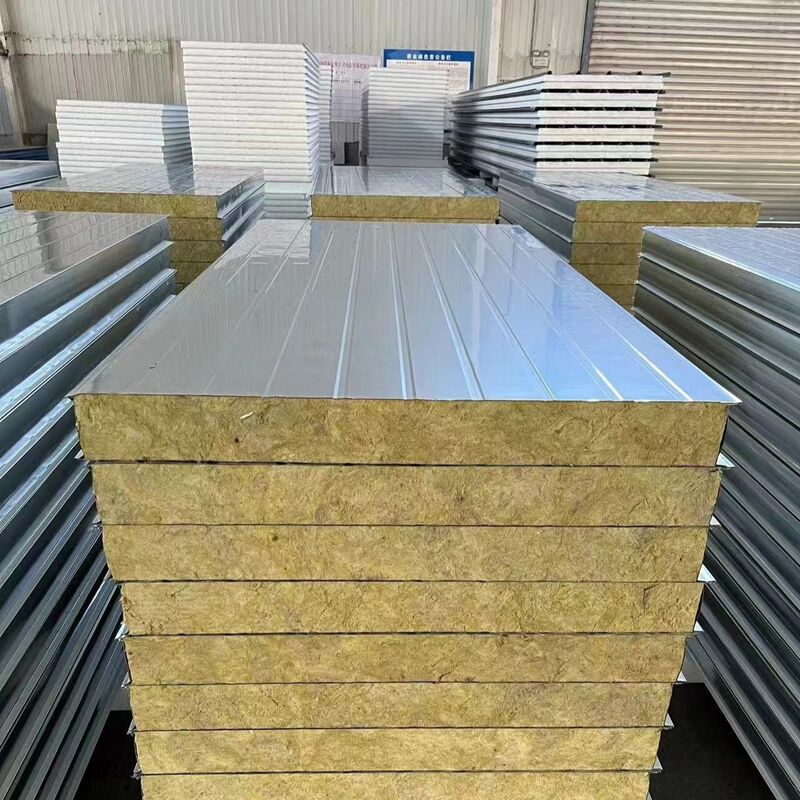

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.

Main Functions

EPS board processing: cutting and trimming operations
Rock wool processing: cutting and precise paving
Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
Final molding: forming composite boards to meet required specifications

Equipment Composition

EPS board processing unit: handles cutting and trimming of EPS boards
Rock wool processing unit: manages cutting and paving of rock wool
Composite unit: bonds EPS board and rock wool together
Molding unit: ensures composite boards meet dimensional specifications
Control system: automated control of the entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Main Motor Power	7.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed during the guarantee period in the following circumstances:

Damage occurs due to natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.

What support do you provide if the machine breaks down?

Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.

Can you handle transportation?

Yes, please provide your destination port or address. We have extensive experience in transportation logistics.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide custom solutions?

Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
