Home > Products > CZ Purlin Roll Forming Machine >
2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency

2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency

CZ purlin roll forming machine 1mm-3mm thickness

high efficiency CZ purlin roll forming machine

2026 CZ purlin roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

C Purlin Machine

Contact Us
Request A Quote
2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency
2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency
Product Details
Product Name:
Simi - Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine
Raw Material:
Galvalume, Galvanized
Dimension(L*W*H):
7000 Mm*1500 Mm* 1500
Material Thickness:
1 Mm - 3 Mm
Weight:
4.5T
Production Capacity:
10-25 M/min
Highlight:

CZ purlin roll forming machine 1mm-3mm thickness

,

high efficiency CZ purlin roll forming machine

,

2026 CZ purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price CZ Purlin Roll Forming Machine with 16 Roller Stations Automatic Fixed-Length Cutting and Hydraulic Station for High Efficiency online Video

CZ Purlin Roll Forming Machine with 16 Roller Stations Automatic Fixed-Length Cutting and Hydraulic Station for High Efficiency

Get Best Price
Good price High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction online Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Get Best Price
Good price Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings online Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Get Best Price
Good price CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency online Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Get Best Price
CONTACT US
Contact Now
Product Description
2026 CZ Purlin Roll Forming Machine - 1mm-3mm Thickness High Efficiency

Semi-Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine

This model features semi-automatic adjustment for different sizes. Scale buttons are located on one side for easy size changes with simple button presses.

Technical Specifications
Item Specification
Coil Material Galvanized
Material Thickness 1 mm - 3 mm
Working Speed 10 - 20 m/min (excluding cutting time)
Roller Station 16 Rows
Dimension (L×W×H) 7000 mm × 1000 mm × 1300 mm
Machine Weight 4500 KG
Electrical Control System Panasonic PLC (customizable)
Drive Motor Power 15 KW
Hydraulic Station Power 15 KW
Power Supply 360V, 60HZ, 3 PHASES (customizable)
Cutting Accuracy ±2 mm
Driving Mode Single Chain 2 inch
Material of Shaft 80 mm 45# steel forged
Material of Roller 45# Steel Finish Machining, Plated Hard

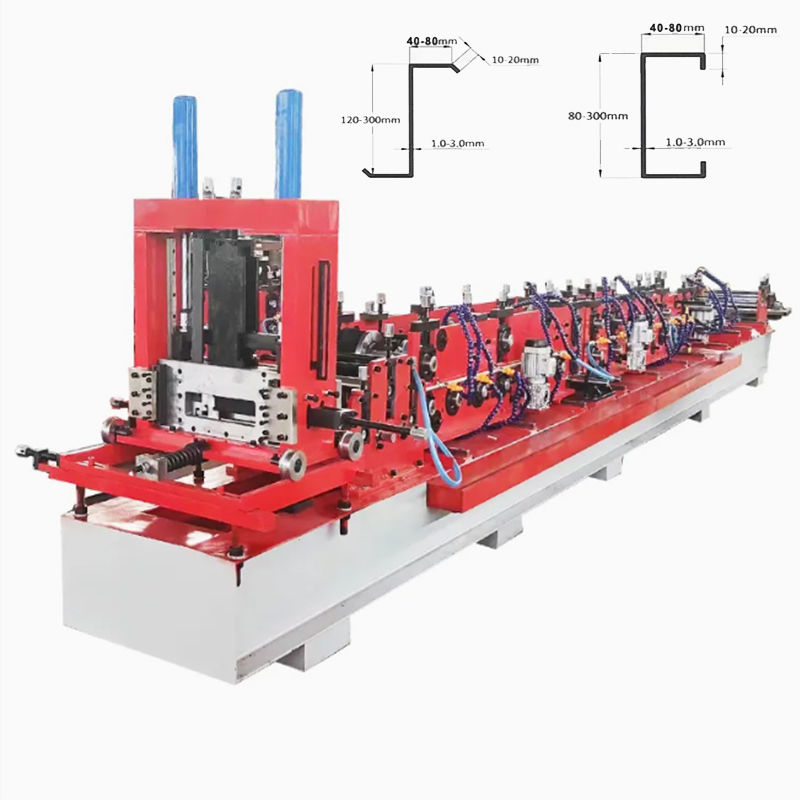

C Purlin Size Reference
2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 0
Warranty & Guarantee
  • 1-year guarantee against manufacturing defects (excluding electrical parts) from date of purchase
  • Repairs not covered during guarantee period for:
    • Damage from natural disasters
    • Malfunctions due to user error
    • Issues from modifications
    • Problems from movement or shipment after installation
Payment Terms
  • 40% advance down payment
  • 60% balance paid before shipment processing
Delivery Information
  • FOB: Tianjin Xingang Port
  • Delivery Time: 30 days after down payment receipt
2026 CZ Purlin Roll Forming Machine 1mm- 3mm Thickness High Eficiency 1
