Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

2mm C purlin roll forming machine

auto size changeable roll forming machine

steel frame C purlin machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CZ Channel Manual Adjustable Purlin Roll Forming Machine

Certification:

ISO CE

Model Number:

CZ

Contact Us
Request A Quote
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Product Details
Product Name:
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Raw Material:
Galvalume, Galvanized
Dimension(L*W*H):
8000 Mm*1500 Mm* 1500
Material Thickness:
1-2.2 Mm
Weight:
4.8T
Production Capacity:
10-28m/min
Voltage:
380V/50HZ/3PH
Main Motor Power::
15Kw
Highlight:

2mm C purlin roll forming machine

,

auto size changeable roll forming machine

,

steel frame C purlin machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Automatic Cold Roll Forming Macine For Z/c Purlin online Video

Automatic Cold Roll Forming Macine For Z/c Purlin

Get Best Price
Good price CU CZ stud Channel Strut Touch Screen Purlin Roll Forming Line online Video

CU CZ stud Channel Strut Touch Screen Purlin Roll Forming Line

Get Best Price
Good price 16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving online Video

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price
Good price Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former online Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

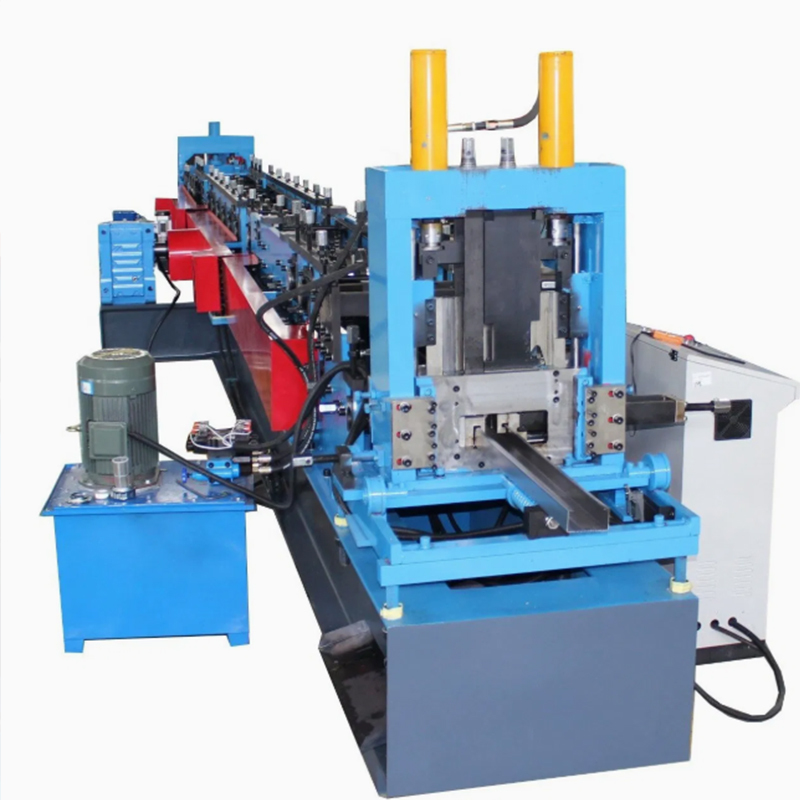

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
PLC control Size Roof structure Purlin Machine CZ Purlin Roll Forming Machine is a special equipment for producing CZ steel (C and Z steel), mainly used in the construction and industrial fields to manufacture roof and wall support structures.
Main Features
  • High automation: It has automatic feeding, forming, cutting and other functions to improve production efficiency.
  • High precision: Ensure that the size and shape of the steel meet the design requirements and ensure installation accuracy.

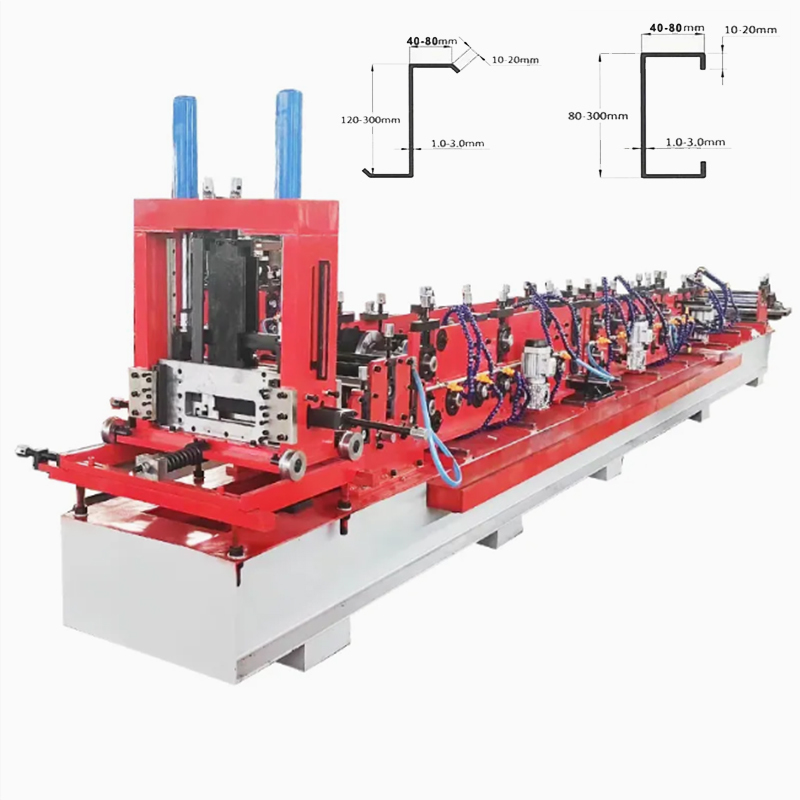

  • Multi-function: It can produce C and Z steel to meet different needs.
  • High efficiency: Automated operation greatly shortens the production cycle and reduces labor costs.
Working Principle
  • Feeding: Metal coils enter the equipment through the feeding device.
  • Forming: Through multiple rolling processes, the metal material is processed into C or Z shape.
  • Cutting: Cut the formed material according to the set length.
  • Output: The finished steel is output for subsequent processing or direct use.
Application Field
  • Building structure: Used for roof and wall support structure.
  • Industrial plant: Used for roof and wall support of industrial plant.
  • Warehousing facilities: Support structures for large warehouses.
Advantages
  • Reduce costs: Automated production reduces labor and material waste.
  • Improve quality: High-precision equipment ensures the quality of steel.
  • Shorten cycle time: Automated processes speed up production.
CZ Purlin forming machines are key equipment in the construction and industrial fields. Through automated and high-precision processing, they meet the manufacturing needs of C- and Z-shaped steels and improve efficiency and quality.
Specification
No. Item Description
1 Coil Galvanized
2 Material Thickness 1 mm - 3.5 mm
3 Working Speed 15-20 m/min (not including the cutting time)
4 Roller Station 12-16 Raws
5 Dimension (L*W*H) 7000 mm*1000 mm*1300 mm
6 Machine Weight 4000 KG
7 Electrical Control System Panasonic PLC
8 Drive Motor Power 15KW
9 Hydraulic Station Power 15 KW
10 Power Supply 360V/60HZ/3PH
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 2 inch
13 Material of Shaft 80 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame 0
