Name: Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: IBR And Corrugated
Price: 28,000.00 USD
Availability: InStock

Home > Products > Roof Roll Forming Machine >

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

galvanized corrugated sheets machine

roof roll forming machine with warranty

standard corrugated sheets production line

Place of Origin:

China

Brand Name:

cangzhou willing

Certification:

CE,ISO

Model Number:

IBR And Corrugated

Request A Quote

Product Details

Product Description:

IBR And Corrugated Roof Panel Roll Forming Machine

Thickness:

0.2-0.8mm

Shaft Material:

Material Is 45# Forge Steel

Dimension(l*w*h):

6500*1550*1500mm

Control System:

PLC

Speed:

10-20M/Min

Voltage:

380V 50HZ 3PH

Weight:

5.5 T

Highlight:

galvanized corrugated sheets machine

roof roll forming machine with warranty

standard corrugated sheets production line

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T,Western Union

Supply Ability

30 sets per month

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Get Best Price

Video

2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine

Get Best Price

Video

Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

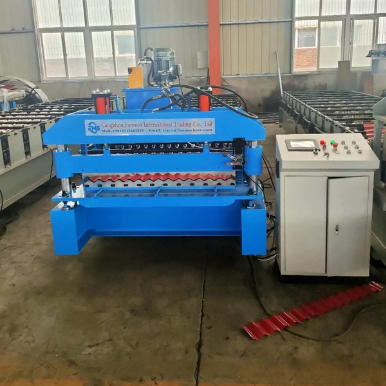

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

This 2 in 1 roof roll forming machine can make two different tiles drawings in one machine, which can save more space and money than using two different machines.

Equipment Detailed Parameters

Parameter	Specification
Suitable Material	PPGL, PPGI, PI, GI
Width of the raw material	1000mm
Rows of rollers	15 rows & 16 rows
Dimension	730015501200mm
Main servo	7.5kw
Hydraulic station power	11kw
Thickness of raw material	0.2-0.8mm
Productivity	15-20m/min
Diameter of shaft	￠70mm
Voltage	380V 50Hz 3phases
Frame	350H steel
Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two roll forming machines into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine has no defects and is beautiful and novel. The appearance is flat, the corrugation is uniform, and the utilization rate is high.

Advantage

Cangzhou willing roll forming machine manufacturer, we have many years of industry experience in design, research and development and production of colored steel equipment. We have a qualified team, skilled talents and strong technical force in design, research and development, production, marketing and after-sales service. Strong independent research and development capabilities and production and processing equipment. The perfect after-sales service system has enabled our products to be well received by domestic and foreign customers.
