Automatic Cold Roll Forming Macine For Z/c Purlin

Automatic Cold Roll Forming Macine For Z/c Purlin

automatic cold roll forming machine

Z purlin roll forming machine

C purlin roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Full Automatic C Purlin Machine

Contact Us
Request A Quote
Automatic Cold Roll Forming Macine For Z/c Purlin
Automatic Cold Roll Forming Macine For Z/c Purlin
Product Details
Product Name:
Full Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine
Raw Material:
Galvalume, Galvanized
Dimension(L*W*H):
7000 Mm*1500 Mm* 1500
Material Thickness:
1 Mm - 3 Mm
Weight:
4 Tons
Warranty:
1 Year
Highlight:

automatic cold roll forming machine

,

Z purlin roll forming machine

,

C purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C,T/T,D/A,D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price CU CZ stud Channel Strut Touch Screen Purlin Roll Forming Line online Video

CU CZ stud Channel Strut Touch Screen Purlin Roll Forming Line

Get Best Price
Good price 16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving online Video

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price
Good price Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former online Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price
Good price Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing online Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

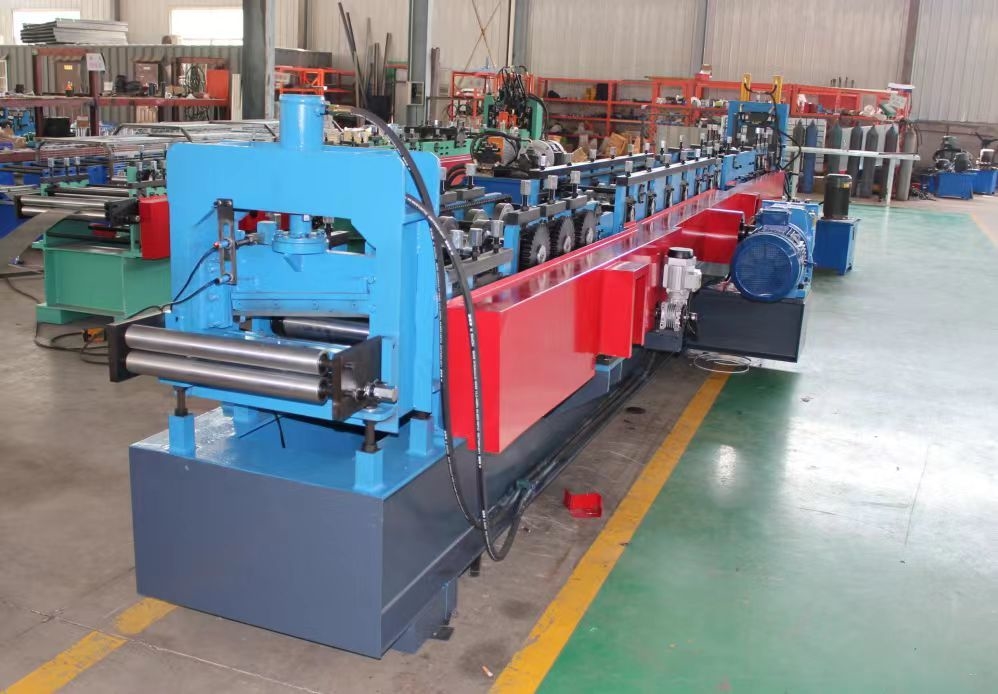

Automatic Cold Roll Forming Macine For Z/c Purlin
This model is full automatic production. Especially, exchange the different sizes by computer control and more faster. Only 1-2 minites can finished the changing size.
Specification
No. Item Description
1 Coil Galvanized
Material Thickness 1 mm- 3 mm
3 Working Speed 10- 20 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5 Dimension (L*W*H) 8000 mm*1000 mm*1300 mm
6 Machine Weight 4500 KG
7 Electrical Control System Panasonic PLC (can be customized)
8 Drive Motor Power 15KW
9 Hydraulic Station Power 15 KW
10 Power Supply 360V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 2 inch
13 Material of Shaft 80 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard
C Purlin Size
Automatic Cold Roll Forming Macine For Z/c Purlin 0
Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

  • Damage occurs due to a natural disaster
  • Malfunction occurs due to user error
  • Malfunction occurs due to modifications
  • Malfunction occurs due to further movement or shipment after installation
Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
