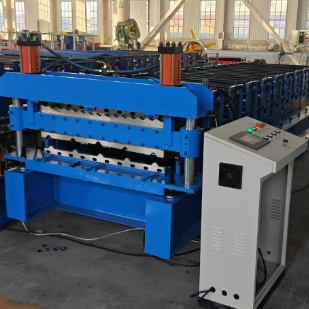

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Double Layer Roll Forming Machine 0.3-0.8mm thickness

Double Layer Roll Forming Machine 8-15M/Min speed

Double Layer Roll Forming Machine with warranty

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

Double Layer

Contact Us
Request A Quote
Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min
Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min
Product Details
Product Description:
Double Layer Corrugated Roofing Sheet Metal Roll Forming Machine High Efficiency
Thickness:
0.3-0.8mm
Shaft Material:
Material Is 45# Forge Steel
Dimension(l*w*h):
6500*1200*1500 Mm
Control System:
PLC
Speed:
8-15M/Min
Voltage:
380V 50HZ 3PH
Weight:
3500 Kg
Highlight:

Double Layer Roll Forming Machine 0.3-0.8mm thickness

,

Double Layer Roll Forming Machine 8-15M/Min speed

,

Double Layer Roll Forming Machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T,L/C,D/A,D/P,T/T
Supply Ability
35 sets per month
RELATED PRODUCTS
Good price 0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine online

0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine

Get Best Price
Good price Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min online Video

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Get Best Price
Good price Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min online Video

Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min

Get Best Price
Good price Corrugated and IBR Double Layer Roll Forming Machine Full Automatic Plc Control online Video

Corrugated and IBR Double Layer Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description
Aluminum Sheet Automatic Double Layer Roll Forming Machine
This high-efficiency machine produces two different aluminum sheet profiles simultaneously with fast operation and superior quality. By combining two production lines into one unit, it saves significant floor space and reduces equipment costs compared to operating separate machines.
Key Features
  • Produces two customized profiles simultaneously
  • Space-saving dual-layer design reduces facility requirements
  • Cost-effective alternative to purchasing two separate machines
  • Customizable for your specific profile requirements
  • Advanced PLC control system for simple operation
Technical Specifications
Parameter Specification
Suitable Material PPGI (235Mpa)
Warranty of Core Components 1 Year
Rows of Rollers 15 rows & 16 rows
Dimension 6500×1200×1500 mm
Cutting Power 3kw
Main Motor Power 3kw
Thickness of Raw Material 0.3-0.8mm
Productivity 8-15m/min
Diameter of Shaft ￠75mm
Voltage 380V 50Hz 3phases
Frame 350H steel
Middle Plate 16mm
Applications
This dual-layer forming machine provides an economical solution for producing multiple aluminum sheet profiles. It combines two production processes into one compact unit, significantly reducing both floor space requirements and equipment costs compared to operating separate single-layer machines. The machine produces sheets with excellent flatness, uniform corrugation, and high material utilization.
Operational Advantages
  • PLC control system for simple, user-friendly operation
  • Advanced automatic control software for superior performance
  • Easy maintenance and mechanical debugging
  • Quick mold replacement capability
  • Produces high-quality sheets with consistent profiles
Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min 0
