Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min

Double Layer Tile Roll Forming Machine

0.3-0.8mm Thickness Roll Forming Machine

12m/min Double Layer Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Description:

Double Layer Roofing Tile Sheet Making Roll Forming Machine Production Line

Production Capacity:

0-20m/min

Key Selling Points:

Easy To Operate

Rollers Material:

GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62（optional）

Control System:

PLC

Voltage:

380V 50HZ 3PH

Cutting Blade Material:

Cr 12 Mov,Quenched

Rolling Thinckness:

0.3-0.8mm

Warranty:

2 Years

Highlight:

Double Layer Tile Roll Forming Machine

0.3-0.8mm Thickness Roll Forming Machine

12m/min Double Layer Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T,Western Union,L/C

Supply Ability

35 sets per month

0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine

Get Best Price

Video

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Get Best Price

Video

Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min

Get Best Price

Video

Corrugated and IBR Double Layer Roll Forming Machine Full Automatic Plc Control

Get Best Price

86-317-2016816

Contact Now

Product Description

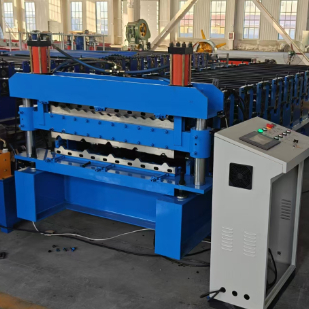

High Speed Double Layer Tile Roll Forming Machine

This double layer metal tile/panel roll forming machine can produce two different types of roofing tiles/panels with a single machine. Offering versatility and space efficiency, it's ideal for various construction applications including roofs and walls. Suitable for gyms, warehouses, factories, and other commercial buildings.

Key Features

Produces two different tile/panel types with one machine
Saves space and reduces equipment costs
Wide application in commercial and industrial construction
High production capacity of 12 meters per minute

Technical Specifications

Parameter	Specification
Suitable Material	PPGI (235Mpa)
Roller Material	45# steel plated with chrome
Rows of Rollers	15 rows & 16 rows
Drive Method	Chain drive, Gearbox drive (optional)
Product Automatic Stacker	6m length
Feeding Width	1220mm
Production Capacity	12 m/min
Rolling Thickness	0.3-0.8mm
Shaft Diameter	￠75mm
Voltage	380V 50Hz 3phases
Main Motor Power	5.5kw
Hydraulic Station Power	4kw

Warranty Information

1-year guarantee against manufacturing defects (excluding electrical parts). Warranty does not cover:

Damage from natural disasters
Malfunctions due to user error
Issues caused by modifications
Problems arising from movement after installation

Payment Terms

40% advance payment, 60% balance paid before shipment.

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after receiving down payment.
