Name: high speed Roofing Sheets crimping bending Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Curved Arch Roof
Price: 28,000.00 USD
Availability: InStock

Home > products > Roof Roll Forming Machine >

high speed Roofing Sheets crimping bending Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Curved Arch Roof

Request A Quote

Product Details

Product Name:

Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic

Raw Material:

PPGL,GL，PPGI,GI，

Dimension(L*W*H):

2050*1500*1300

Weight:

4Tons

Shaft Material:

45# Steel Outer Diameter: 70mm

Feeding Width:

925mm

Control System:

PLC

Voltage:

220V/380V/440V

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C,T/T,D/A,D/P

Supply Ability

40 Sets Per Month

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price

Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price

Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price

86-317-2016816

Contact Now

Product Description

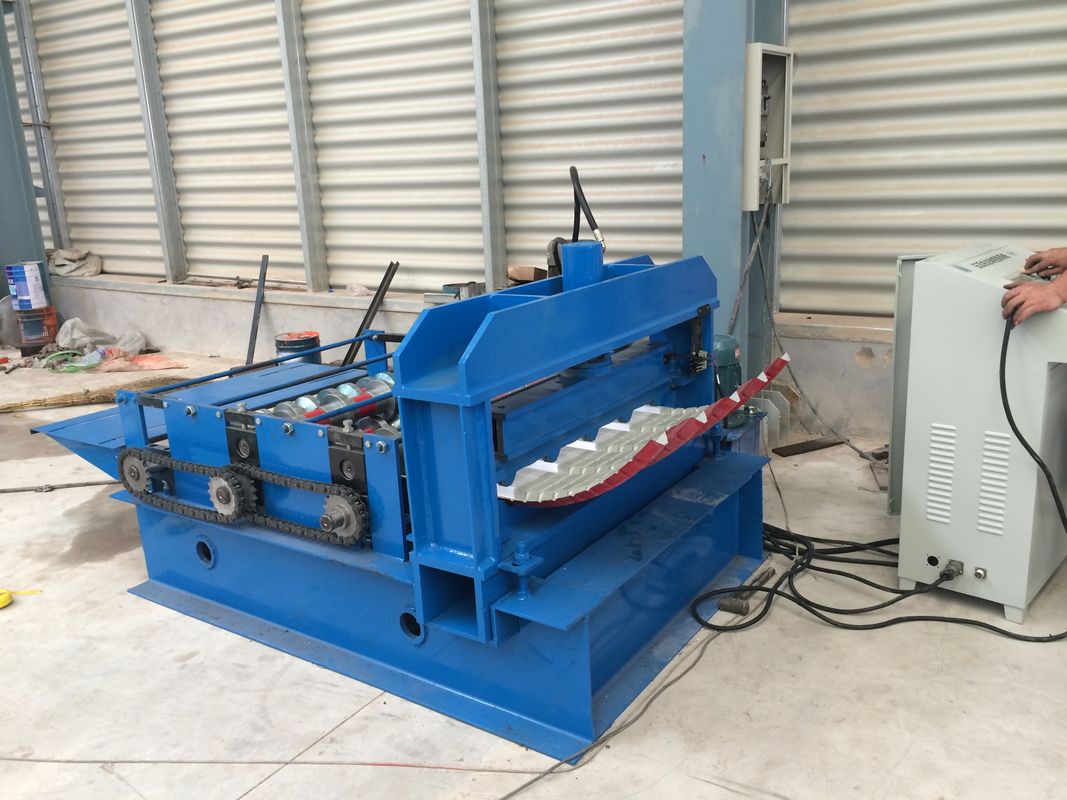

Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic

1. Famous Brand, quality is guaranteed.

2. Full Automatic Computer Control make easy to operation.

3. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat treatment 58℃-62 ℃ . The product quality is durable and long service life .

Specification

Weight	4Tons
Frame Material	350H Steel
Side Panel Of Machine	16mm
Color	All colors(standard international color)or (Customized)
Rollers	5 rollers
Roller material	45# steel Cr12 Mov HRC 58-62
Diameter Of The Shaft	Φ70mm
Drive Mode	Chain Wheel and Cycle Chain Length:1 Inch
Productivity	10-15m/min
Voltage	380V 50Hz 3phases(Can be customized according to local voltage)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
