2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Sleflock

Contact Us
Request A Quote
Product Details
Product Name:
Metal Picket Fence Roll Forming Machine Fence Lines America Style Fence
Production Capacity:
20M/MIN
Weight:
3000 Kg
Dimension(L*W*H):
5500*1300*900mm
Roller Material:
High Grade 45# Steel
Rolling Thinckness:
0.3-0.8mm
Cutter Material:
Cr12MOV, Heat Treatment
Control:
PLC(detla) System
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C,T/T,D/A,D/P
Supply Ability
20 Sets Per Month
Product Description

Metal Picket Fence Roll Forming Machine Fence Lines America Style Fence



  Metal Picket fence is a new solution to the classical approach to the construction of fences.
It is roll formed from light-gauge sheet metal with polymer coating.

  Being an original solution of landscape design, a fence made of Metal Picket fence imitates a natural fence made of wood and, thanks to its structure, allows creating an attractive appearance around the enclosed territory.

The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.companies manufactures roll forming machines for production profile "Metal Picket fence " of any type.If it is necessary to increase the productivity or product range, we are also ready to offer you a line for production of a metal picket fence in single stream or in double stream options.





Specification



No
TYPE
SPECIFICATION


1

Raw material
material
PPGI GI
Feeding width
as drawing
thickness
0.3-0.8mm
2


Decoiler
operate
manual
weight capacity
5ton






3







Roll forming machine
roller station
14
Diameter of shaft
55mm
Roller material
45# with 0.05mm chrome
Frame
steel sheet welding
Frame thickness
18mm
Cutting Material
Cr 12
Operation
automatic cutting
Working speed
15-20m/minute


4


Power
Driving way
chain
Main motor
4kw
Voltage
380v 50hz


Application



  selflock color steel has been specially processed, with strong anti -external power capacity, beautiful and solid external nature, and it is more appropriate to make wall panels and layers. By adjusting the freedom side, it can also be completely separated by rain.



Payment terms

  40% in advance as advance payment
  60% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port or CNF
  The Delivery Time: 30 days after the down payment is received.

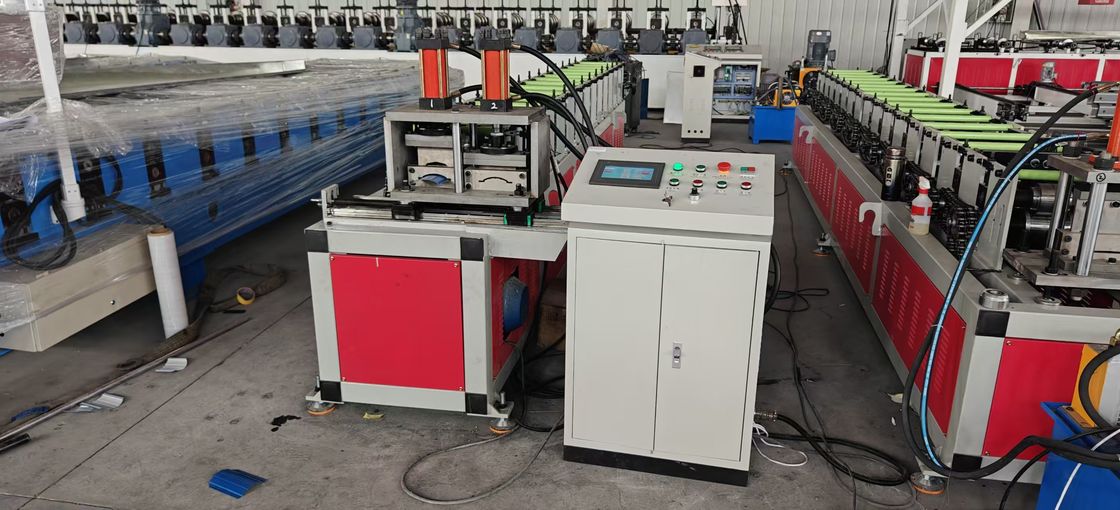

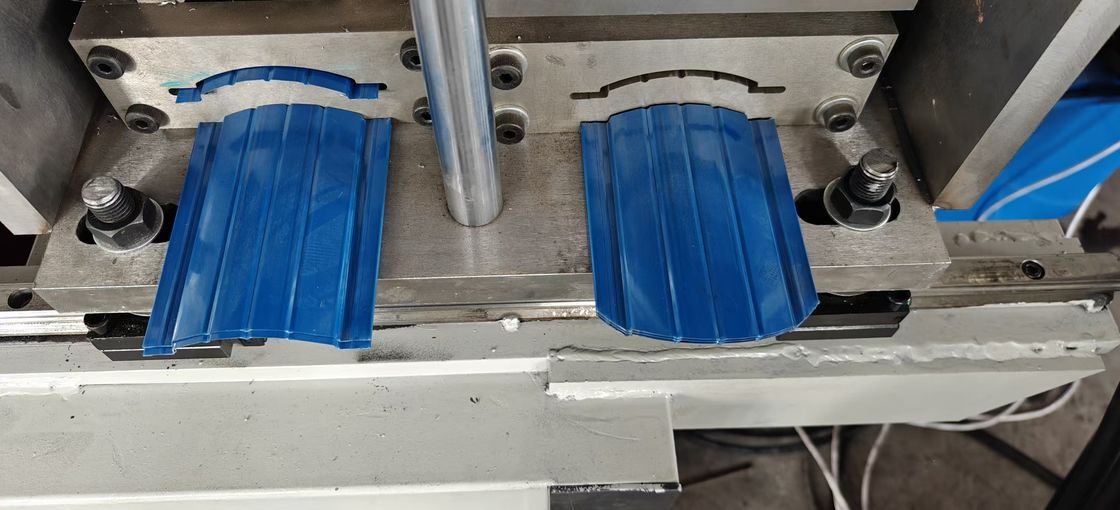

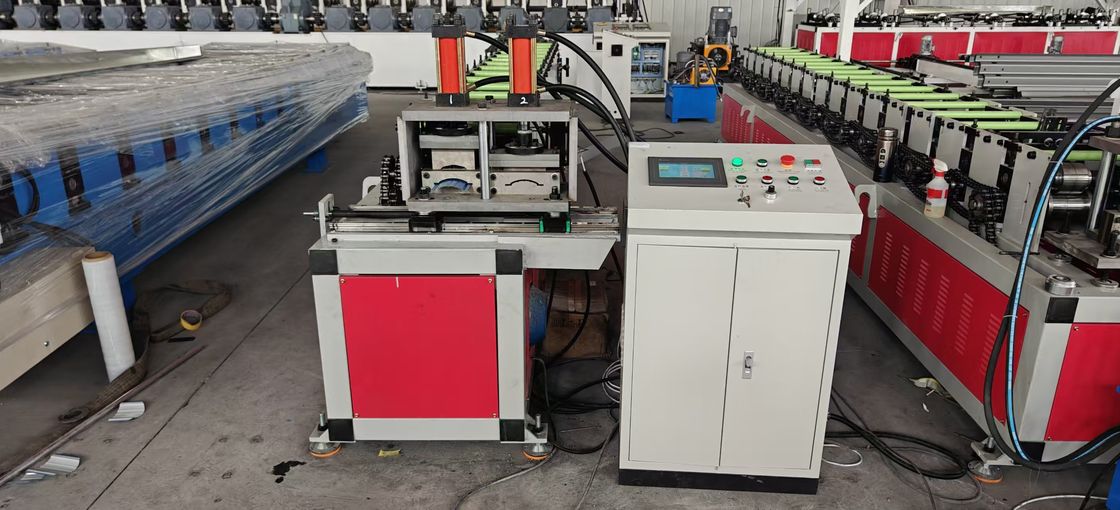

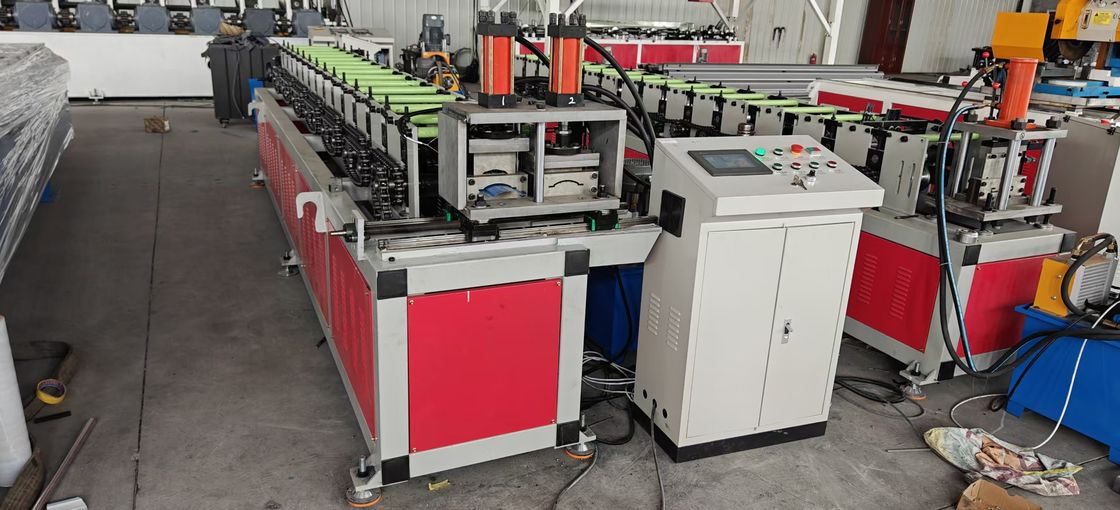

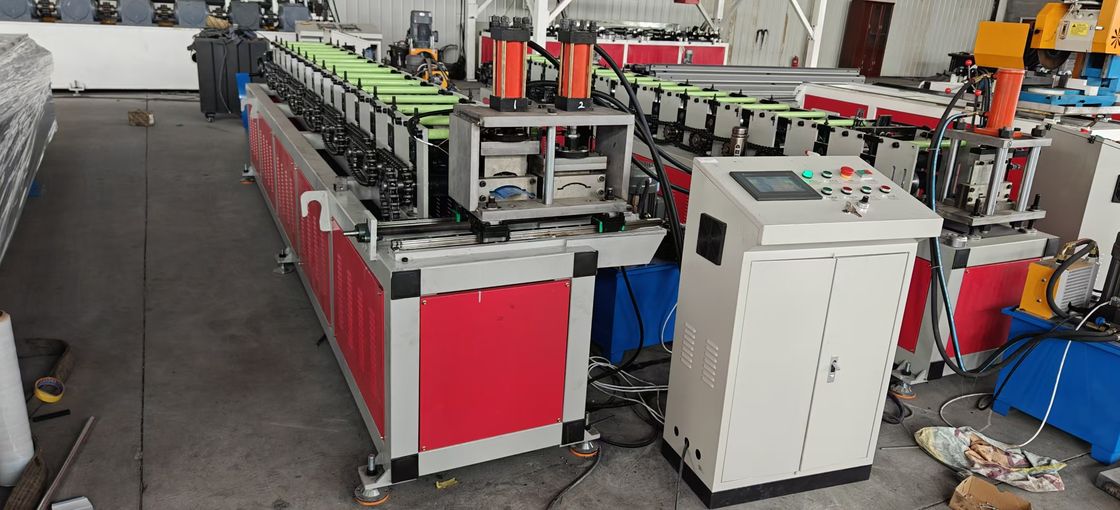

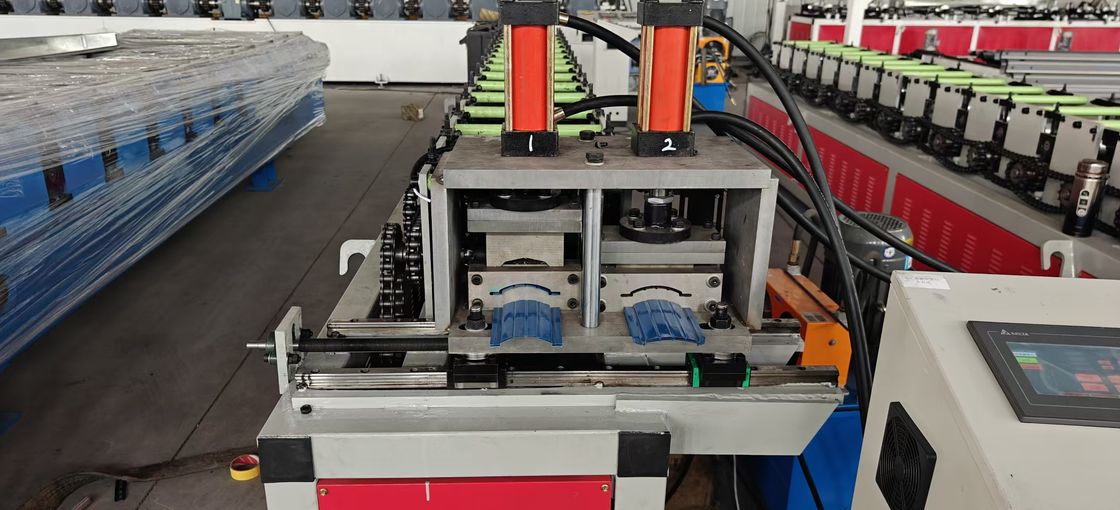

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style 0
