Product Description:
Foam composite board is a multi-functional building material, which can be widely used in building walls, roofs, sound insulation, thermal insulation, greenhouses, refrigerators, ships, aircraft and other fields, with good physical properties and chemical stability.
Technical Parameters:
| Main Motor Power |
Total 32KW |
| Total Weight |
30T |
| Dimension |
45m*2.5m*2.4m |
| Forming Speed |
3-6m/min |
| Material Width |
1250mm |
| Voltage |
380V/50HZ/3Phase |
| Warranty |
2 Year |
| Material Thickness |
0.3-0.8mm |
| Control System |
PLC |
| Cutting Length Error |
±2mm |
Applications:

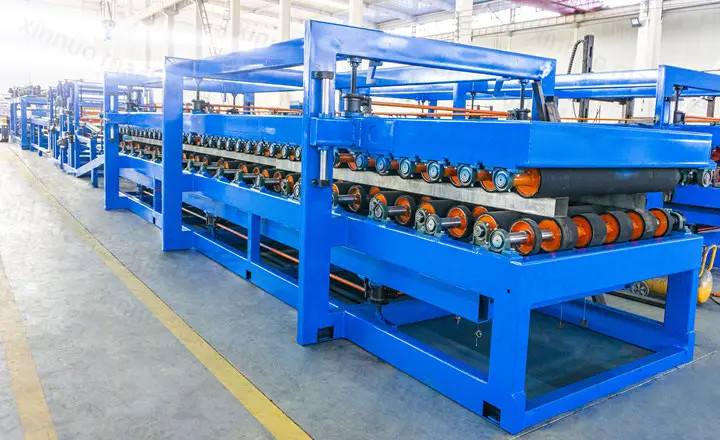

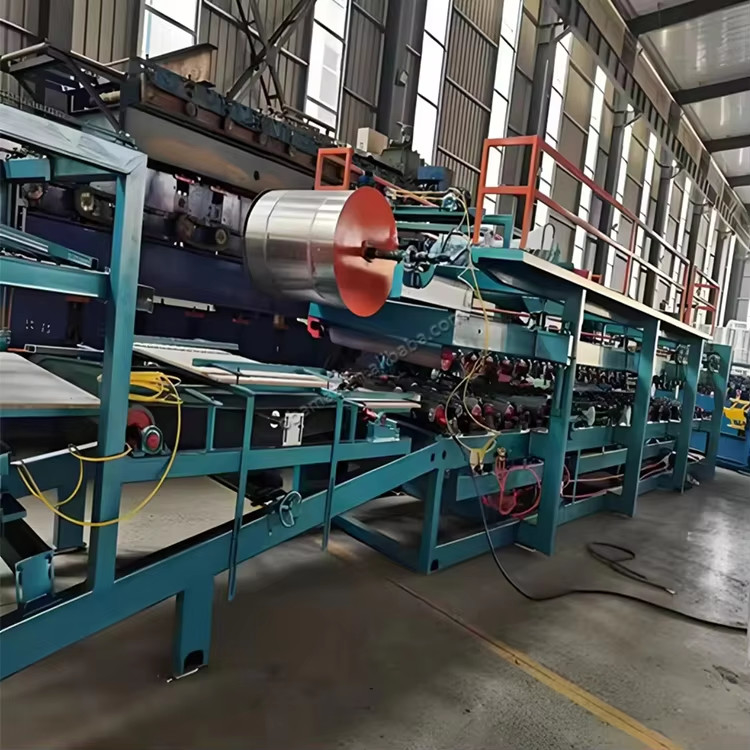

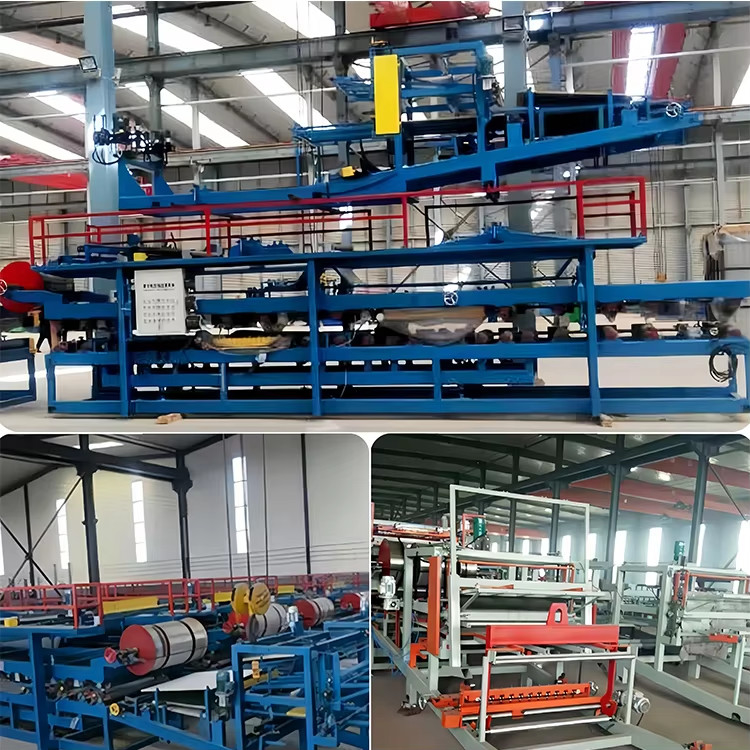

The sandwich panel production line system is a fully automated equipment system used to produce sandwich panels of various shapes.
The features of this machine
1. The machine can be customized for producing different shapes.
2. Our machine's design philosophy is easy to install and operate.
3. The machine is fully automatic and saves manpower.

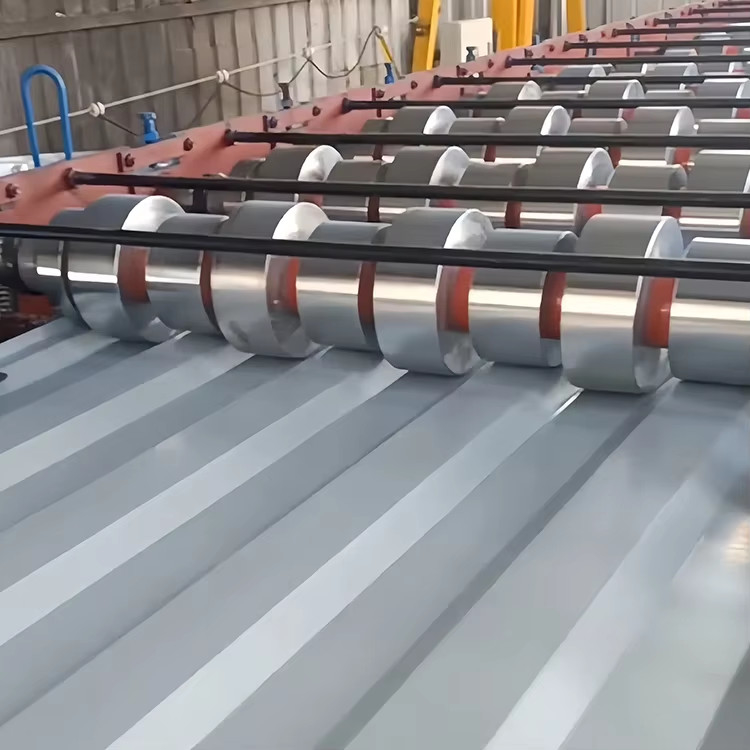

4. The roller with built-in bearings can eliminate inconsistent linear speeds, making the final product flawless.
Packing:
1. Main parts are all coated with anti-rust oil.
2. The whole machine and accessories are packed with bubble film.
3. All parts are fixed to the container with steel wire.
4. The samples are covered with film and packed in wooden boxes.
Payment Terms:
30% T/T or Alibaba link deposit in advance, balanced payment before delivery.
FAQ:
1.Q: Are you a manufacturer or trading company? A: We are a production and trading company.
2.Q: What information do you need before you make a suggestion?
A: You need to provide the thickness of the material, the size range of the material or profile drawing, your special
requirements.
3.Q: What is the minimum order quantity?
A:One
4.Q: Do you provide overseas installation and debugging?
A: Overseas machine installation and worker training services are optional.
5.Q: Can you manufacture this machine according to my design or prototype?
A: Yes, we have an experienced team who can make the most suitable design and production plan for the machine you want to order.
6. Q: How does your factory do in terms of quality control?
A: It is strict in terms of quality control. Quality control complies with international CE certification & SGS certification.
Each machine must undergo operational testing before being packaged for shipment.
7. Q: How can I trust your machine to paste test run before shipping?
A: We have recorded a test video for your reference We welcome you to visit our factory and test the machine yourself.
8. Q: How is our after-sales service?
A: We provide online technical support and provide overseas services by skilled technicians.
9. Q: What should I do if I just start a business?
A: Contact us immediately, we provide free pre-sales consulting services. We can also help you solve material (steel coil)
procurement, worker training, and international market prices.
10.Q: Can I come to your factory to inspect the machine on site? What should I bring when visiting your factory?
A: We are a manufacturer and we welcome customers to visit our factory. For special product design and development, we ask that
you bring a piece of test material that you can perform on-site testing on our machines.
