Metal Slat Steel Roller Rolling Up Shutter Door Profile Roof Tile Panel Sheet Roller Shutter Door Forming Machine

Metal Slat Steel Roller Rolling Up Shutter Door Profile Roof Tile Panel Sheet Roller Shutter Door Forming Machine

Steel Roller Shutter Door Forming Machine

Metal Shutter Door Roll Forming Machine

Slat Shutter Door Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE

Model Number:

shutter door

Contact Us
Request A Quote
Product Details
Forming Speed:
10-15m/min
Thinckness:
0.8-1.2mm
Power:
7.5KW
Control System:
PLC
Warranty:
1 Year
Cutting Type:
Hydraulic Cutting
Roller Material:
45# Steel
Roller Stations:
18 Stations
Highlight:

Steel Roller Shutter Door Forming Machine

,

Metal Shutter Door Roll Forming Machine

,

Slat Shutter Door Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
7000-10000
Packaging Details
Naked with Plastic Film.
Delivery Time
45 days
Payment Terms
T/T, L/C,
Supply Ability
20 Set /Month
Product Description


Technical Parameters:

Product Name Shutter Door Roll Forming Machine
Cutting Type Hydraulic Cutting
Thickness 0.8-1.2mm
Forming Speed 10-15m/min
Power 7.5KW
Voltage 380V/50Hz/3Phase
Control System PLC
Roller Material 45# Steel
Dimension 6.5m*0.95m*1.2m
Warranty 1 Year

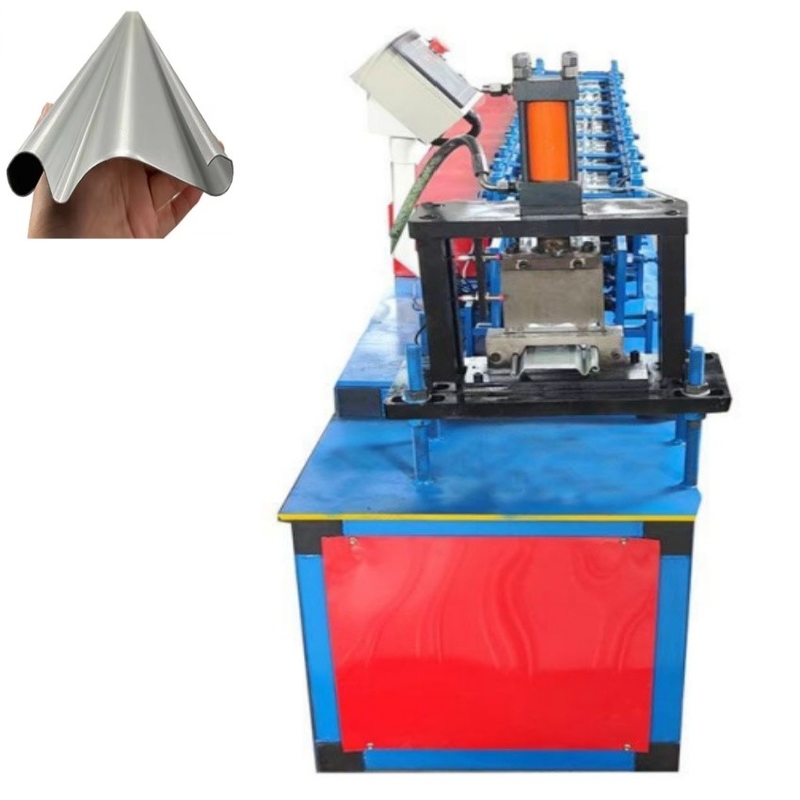

This product is also known as slat machine, roll up door forming machine, or rolling shutter machine.

Metal Slat Steel Roller Rolling Up Shutter Door Profile Roof Tile Panel Sheet Roller Shutter Door Forming Machine 0Metal Slat Steel Roller Rolling Up Shutter Door Profile Roof Tile Panel Sheet Roller Shutter Door Forming Machine 1

Applications:

1. More efficient and accurate execution of production orders.

2. High equipment reliability.

3. Little waste of materials and energy.

4. High productivity.

5. High quality materials, get a longer service life.

6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to
ensure that customers can get qualified products at the same time, it can avoid the scratch of the color
steel surface paint, and increase the service life of the roll.
7. Customized coil processing solutions to solve all aspects of technical problems.

Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation





Advantage



Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.

Double layer roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.

Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.

In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and operation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
