High Speed Roofing Tiles Machine Customization Double Layer Roof Sheet Roll Forming Machine for Ibr Corrugated Glazed

High Speed Roofing Tiles Machine Customization Double Layer Roof Sheet Roll Forming Machine for Ibr Corrugated Glazed

Ibr Roof Sheet Roll Forming Machine

High Speed ibr making machine

Customization ibr roof sheet making machine

Place of Origin:

china

Brand Name:

fms

Certification:

ce

Model Number:

836/840/686/925/1200

Contact Us
Request A Quote
Product Details
Function:
Roofing Metal Panels Making
Roll Station:
10-18 Stations Or Depends On Profile
Coil Width:
1000 Mm Or Custom-made
Material Width:
Depend On Customer’s Requirement
Control Systeplcm:
PLC
Machinery Test Report:
Provided
After-Sales Service:
Engineers Available To Service Machinery Overseas
Condition:
New
Color:
Customers Requirement
Yield Stress:
550
Industial Name:
Roll Forming Machine
Forming Stations:
16-18 Stations (depend On Profiles)
Highlight:

Ibr Roof Sheet Roll Forming Machine

,

High Speed ibr making machine

,

Customization ibr roof sheet making machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
8000usd-12000usd
Packaging Details
nude
Delivery Time
45dayes
Payment Terms
T/T
Supply Ability
1000
Product Description
Product Description

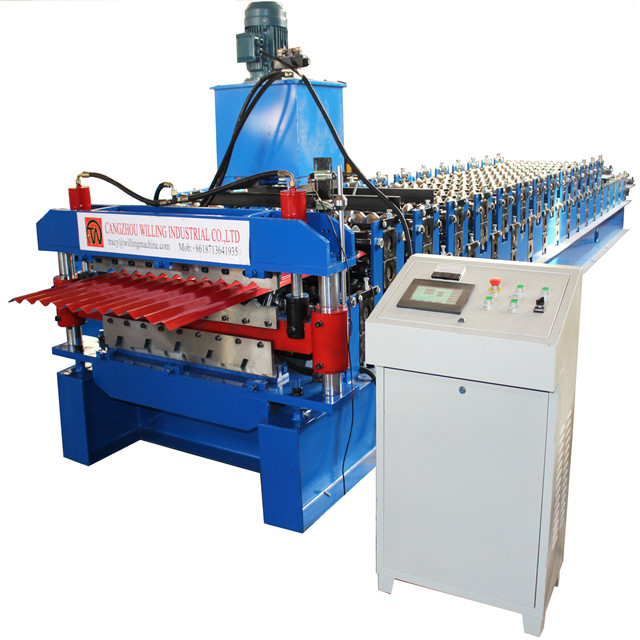

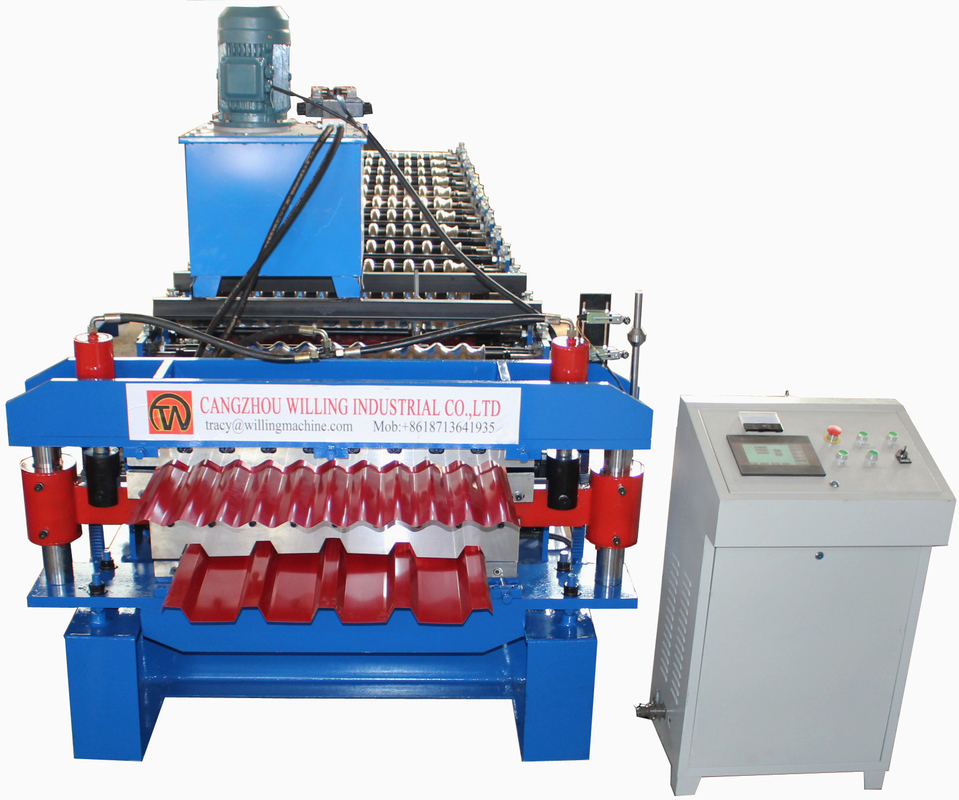

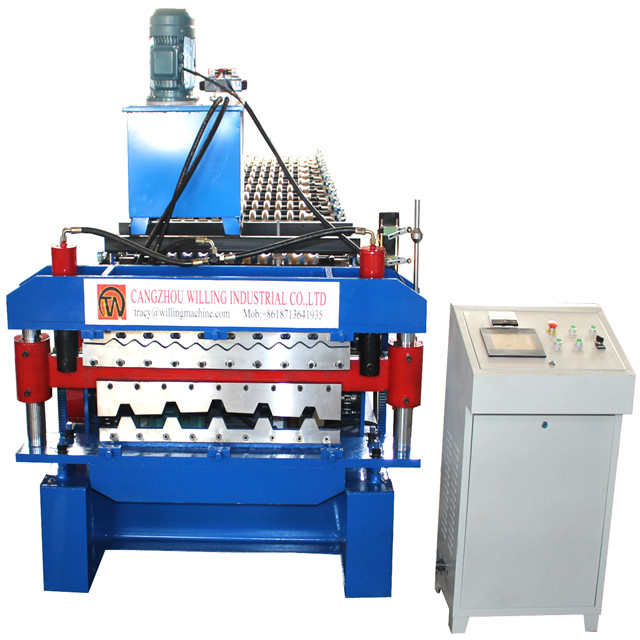

Double Layer Metal Roof Sheet Roll Forming Production Line

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three- imensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.


Equipment Detailed Parameters:



Base material
GI/GL,PPGI/PPGL,Aluminum coil
Thickness
0.3mm-0.8mm
Effective Width
1000mm (according to your need)
Roller material
45# steel
Color
All colors (standard international color)or customers samples’ color
Brand
FMS
Control System
Famous Brand PLC
Power
5.5KW
Frame
350Hsteel
Cutting drive
Hydraulic drive,electric motor

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Advantage

Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.

Double layer roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.

Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.

In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and operation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

High Speed Roofing Tiles Machine Customization Double Layer Roof Sheet Roll Forming Machine for Ibr  Corrugated Glazed 0High Speed Roofing Tiles Machine Customization Double Layer Roof Sheet Roll Forming Machine for Ibr  Corrugated Glazed 1

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

High Speed Roofing Tiles Machine Customization Double Layer Roof Sheet Roll Forming Machine for Ibr  Corrugated Glazed 2
