Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure

Portable Roof Panel Roll Forming Machine

Portable standing seam metal roof machine

PLC standing seam roll former

Place of Origin:

china

Brand Name:

fms

Certification:

ce

Model Number:

standing seam /self lock

Contact Us
Request A Quote
Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure
Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure
Product Details
Highlight:

Portable Roof Panel Roll Forming Machine

,

Portable standing seam metal roof machine

,

PLC standing seam roll former

Payment & Shipping Terms
Minimum Order Quantity
1
Price
7000usd-10000usd
Packaging Details
nude
Delivery Time
45dayes
Payment Terms
T/T
Supply Ability
1000
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description



portable double lock standing seam roof panel roll forming machine with good price Features



portable double lock standing seam roof panel roll forming machine with good price

1.We are design the one unit one machine, the control box and the hydraulic station for the cutting are all put under the bedding, when you get the machine, the machine is one unit, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. 2. the touch screen is hang over, it is not under the floor. 3. the roller is solid and electroplated, which will not have rust. 4.the material are all national standard and cutter will not have burr.

Raw material
Galvanized steel coil, aluminium coil

Material thickness
PPGI:26 to 21 gauge(0.5-0.9mm)
Aluminum:23 to 19 gauge(0.7-1.2mm)

Voltage
220V,60HZ,Single Phase (special voltage, motor,frequency converter need customized)

Main power
5.5Kw

Hydraulic power
4Kw

Working speed
15-30m/m

Control system
PLC delta
Siemens,Mitsubishi, panasonic (Optional)
Machine main structure
Wall panel structure

Roller station
8 stations or according to you profile drawings

Roller material
Cr12
Cr12, SKD11(Optional)
Driving system
Chain drive
Gearbox (Optional)
Cutting system
hydraulic cutting

Cutting blade material
Cr12mov, Quenched treatment 58℃-60℃

Decoiler
Manual decoiler
Hydraulic decoiler (Optional)

ptional parts of portable double lock standing seam roof panel roll forming machine with good price
working flow

Decoiler→ Feed Guide Device→ Rolling Forming System → Hydraulic Fly Punching & Cutting System→ Exit Rack

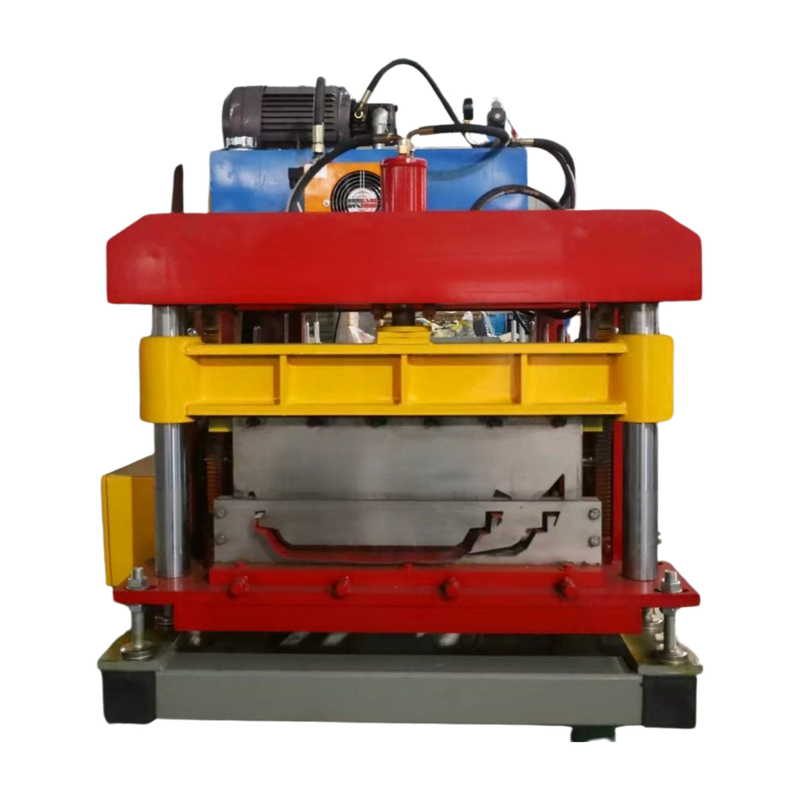

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 0

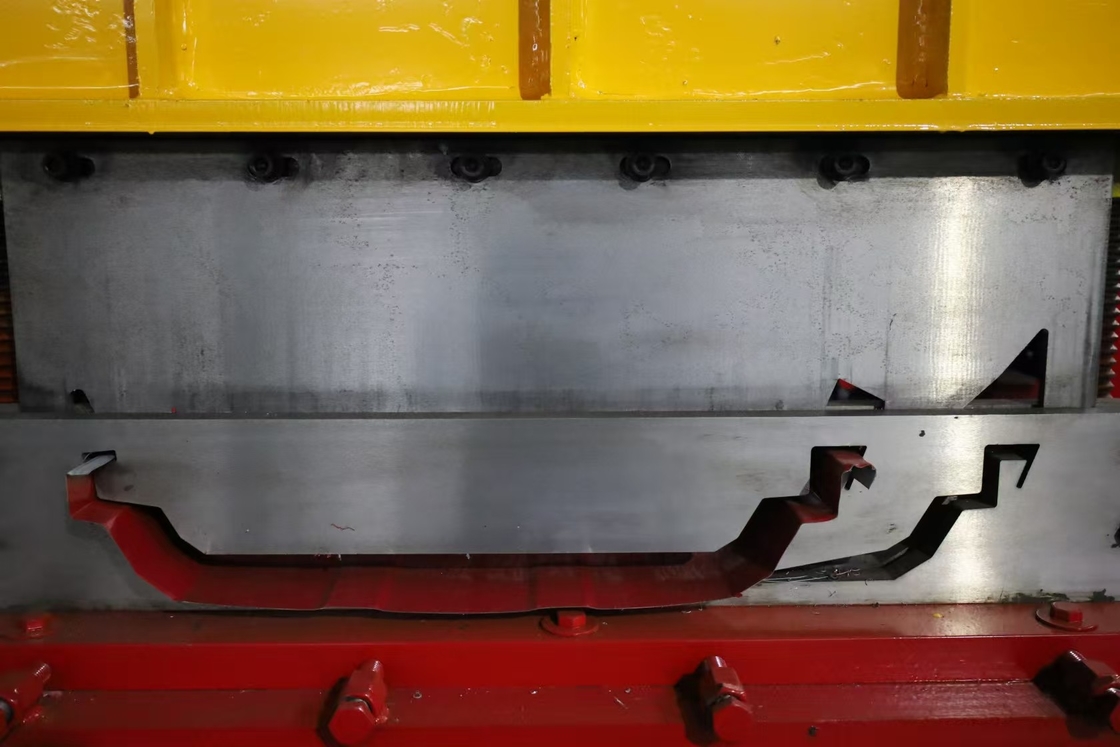

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 1Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 2

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine with PLC Delta Control System and Wall Panel Structure

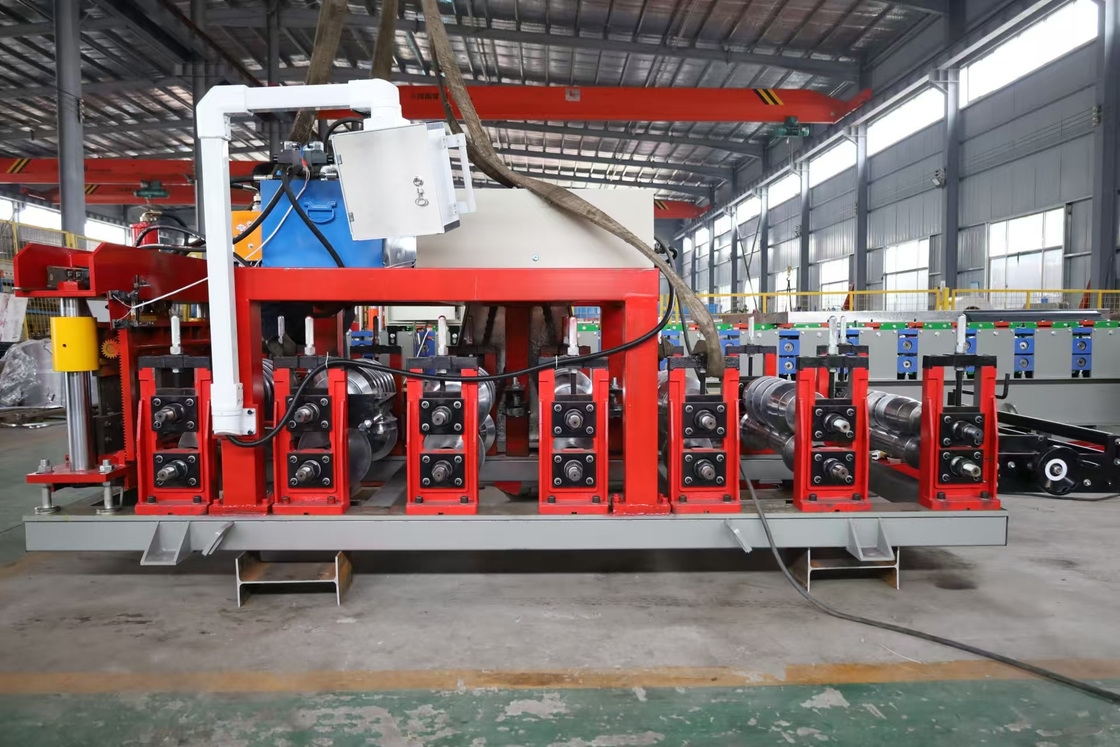

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 3

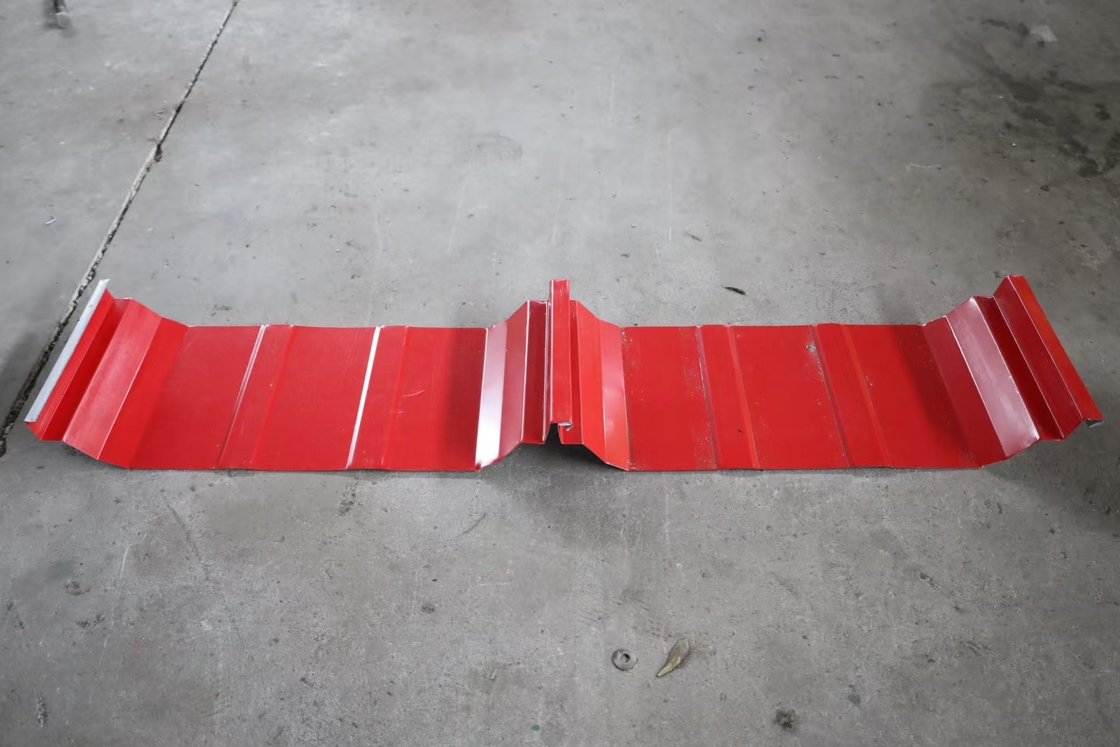

Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 4
Portable Double Lock Standing Seam Roof Panel Roll Forming Machine With PLC Delta Control System And Wall Panel Structure 5
Why Choose Us

1. We are a factory with nearly 20 years experiences on Roll Forming Machines;

2. We have our own research and development team with strong ability to solve all kinds of problems;

3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;

4. We have more than 20 technicians that can go abroad for the after-sale service;

5. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;

6. We have got the ISO9001:2008 Certificate and CE Certificate;

7. We are always waiting to serve you 7 days a week and 24 hours a day.



Any questions can email me or call me! Ashley Mobile:+86-17736986169 WhatsApp/Wechat)
