| Weight |
About 2500kg |
| Size |
About 8m x 1.2m x 1.3m (length x width x height) |
| Thickness |
1.0-2.0mm |
| Power |
11kw |
| Production Capacity |
10-20m/min |
| Voltage |
380V/50HZ 3 Phase(as Customer's Request) |
| Forming rollers material |
45# steel with CNC machining and surface is being hard chrome |
| Cutter material |
CR12 mould steel, with quenched treatment |
| Controlling system |
DELTA PLC and Converter |
| Hydraulic unit motor power |
Main motor power: 5.5kw |
| 5.kw |
Working Flow and Main parts of Steel Channel Making C Stud Roll Forming Machine
Uncoiling —— Material Feeding —— Roll Forming —— Step Making —— Automatic Cutting —— Products Receiving
Stud and track roll forming machine configuration components
|
|
|
|
|
Double head hydraulic uncoiler
|
|
|
|
|
|
|
Adjustable feeding platform
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Delta PLC electronic control system
|
|
|
Supporter/Automatic Stacker
|
|
|
Choice of standard EU size or custom size
|
3 Tons Passive Decoiler
Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠800mm
Max Coil Width: 500mm
|
|
Roll Forming Part
Thickness of sheet: 0.4-1.2mm
Motor Power: 7.5 kw forming system
Roller material: C45 steel
Base Frame: 350 H steel welded
Roller Stations About 14-18 stations forming
Roller Material 45# Steel with quenching
Shaft Material 45# Steel Diameter 60mm shaft
|
|
|

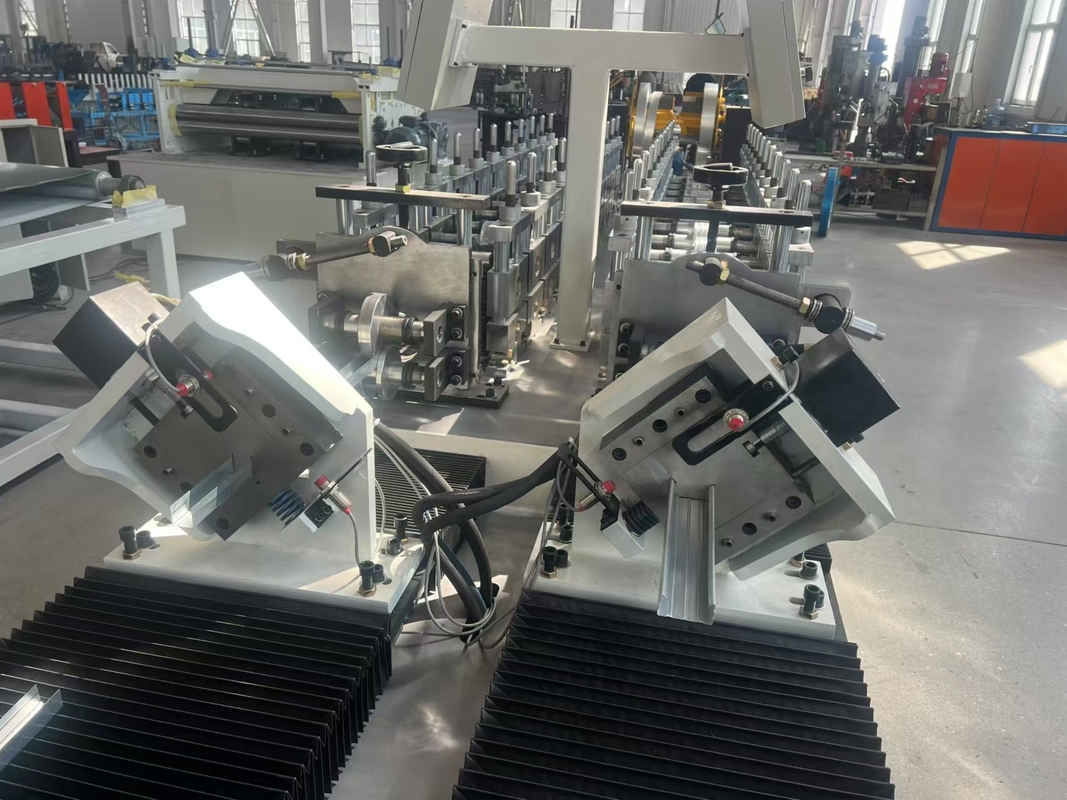

Hydraulic Cutting---Stop Cutting
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will
automatically start.
Material of blade: CR12mov with heat treatment
Length measuring: Automatic length measuring
Tolerance of length: 10m+/- 2mm
|
|
Control Box
* Power supplier: 220V, 60 Hz, 3Phase (adjusted with therequestment)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)
|
|
|
Output Table
It adopts welded steel and supported roller to
transmit the products.
Size:2 meters length 2 units
|

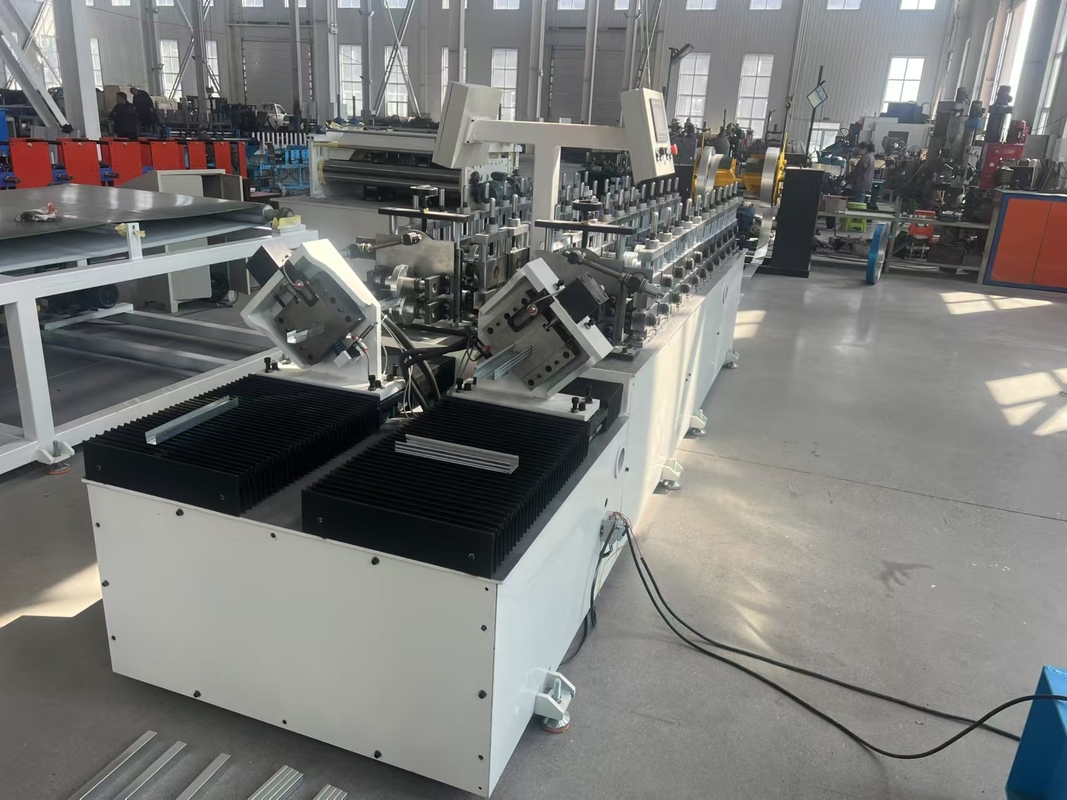

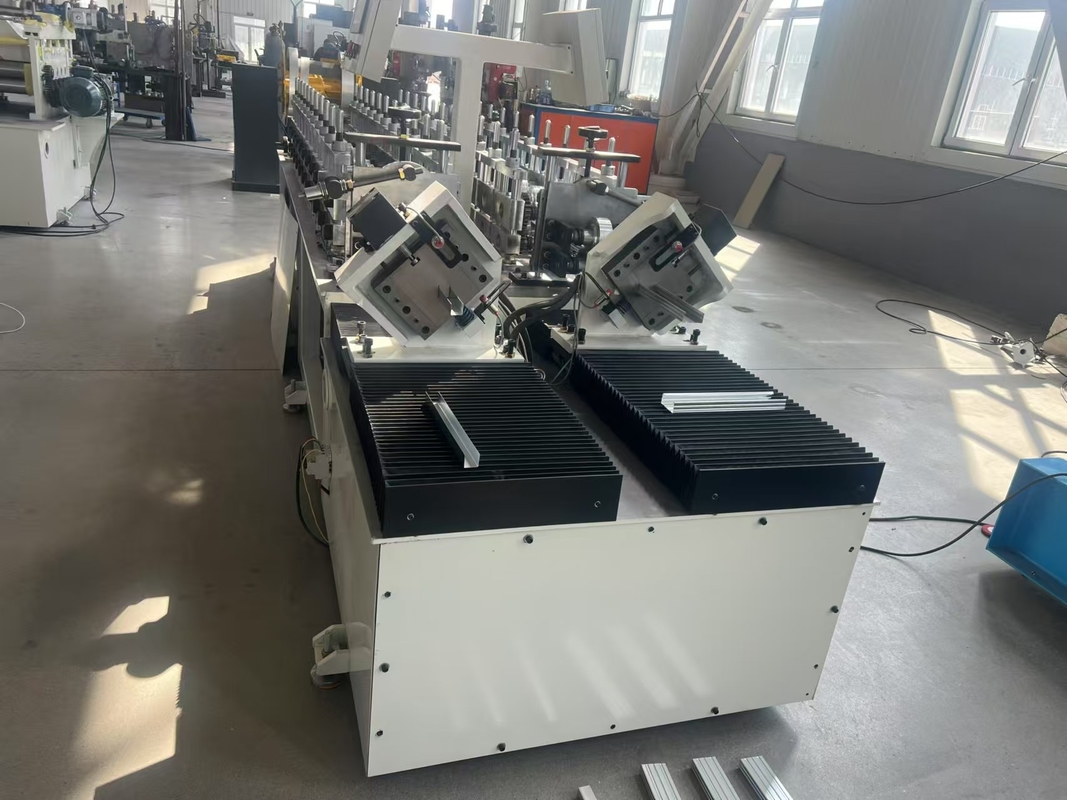

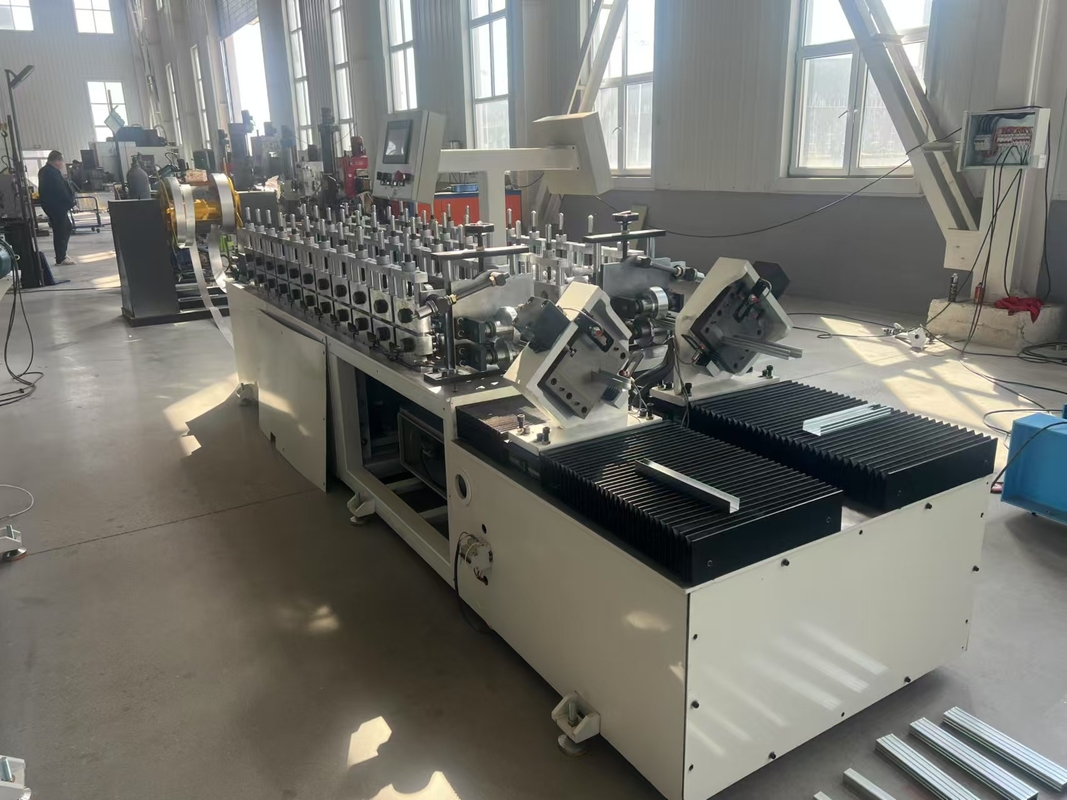

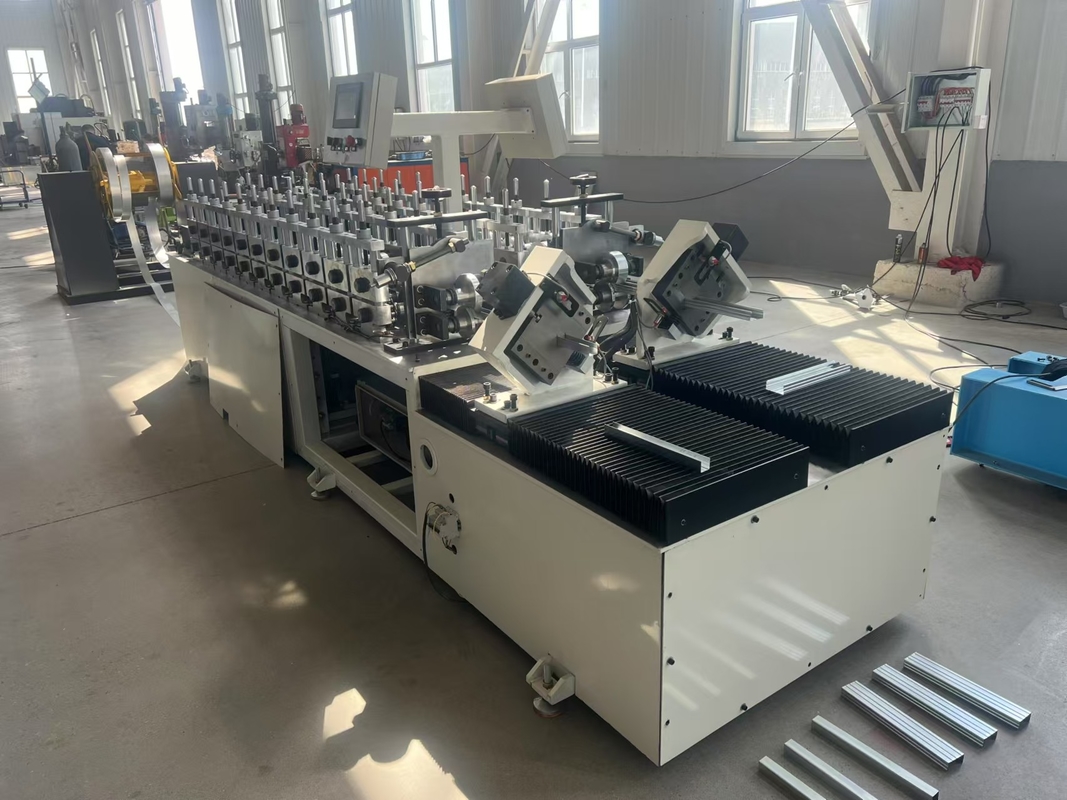

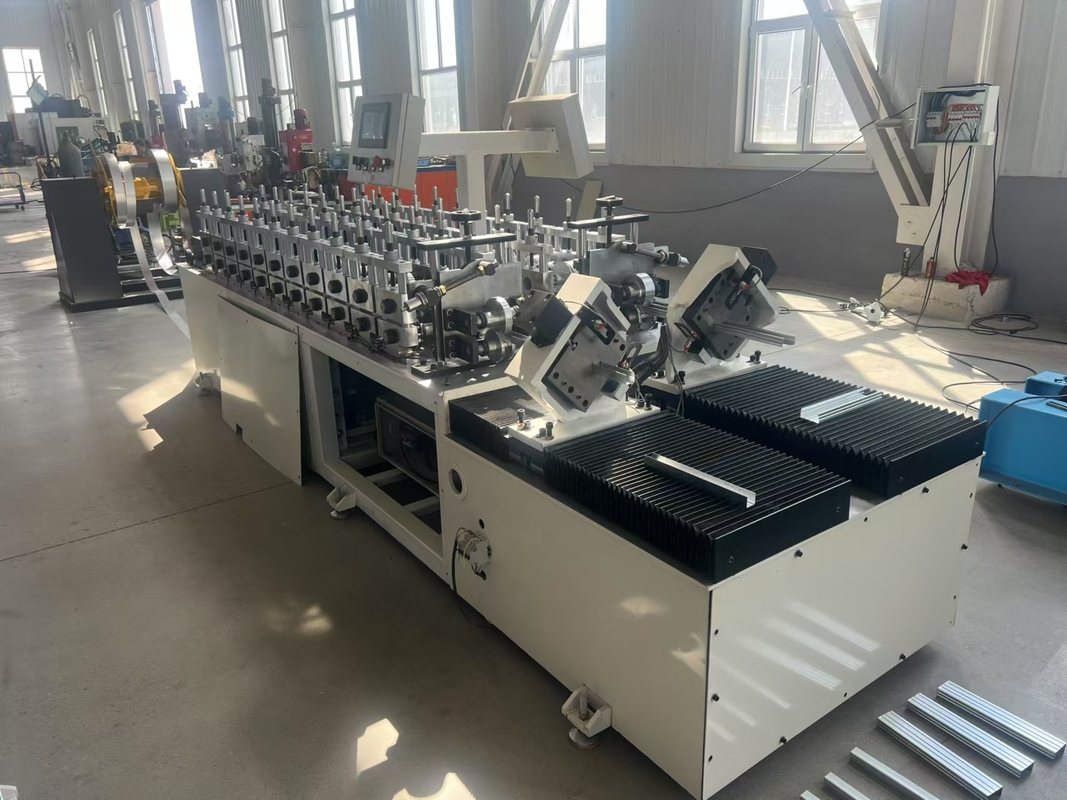

CD and UD 2 in 1 roll forming machine | 2 in 1 u stud machine | 2 in 1 c stud machine | C profile roll forming machine | U stud roll forming machine
To save space and price, some customer like to choose 2 in 1 roll forming machine, it means one machine can produce 2 shapes products. We can customize machine as your need, like
1. Omega profile and u channel 2 in 1 roll forming machine
2. Omega profile and angle bead 2 in 1 roll forming machine
3. Omega profile and C channel 2 in 1 roll forming machine
4. CD and UD 2 in 1 roll forming machine
5. C channel and angel bead 2 in 1 roll forming machine
6. Angle bead and u stud 2 in 1 roll forming machine
Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm. Product thickness common between 0.3-0.6 mm, machine details is like up type:
Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine
Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details
U channel roll forming machine | gypsum u channel making machine | U stud roll forming machine
U channel roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc,
Steel Channel Making C Stud Roll Forming MachineAdvantage:
1. Famous Brand, quality is guaranteed.
2. Full Automatic Computer Control make easy to operation.
3. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat treatment 58℃-62℃ . The product quality is durable and long service life .
