Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making

Metal Iron Roofing Sheet Making Machine

Corrugated Roofing Sheet Making Machine

Three Layers Roofing Sheet Making Machine

Place of Origin:

china

Brand Name:

FMS

Certification:

CE

Model Number:

840/820/850

Contact Us
Request A Quote
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Product Details
Machine Size:
Depend On Profiles
Machine Weight:
5000kg
Form Speed:
10-15
Roller Materials:
45#Steel
Warranty:
1
Thickness:
0.3-0.8
Hydraulic Motor:
5.5KW
Forming Stations:
18
Cutting Method:
Hydraulic Cutting
Color:
Depend On Customer
Highlight:

Metal Iron Roofing Sheet Making Machine

,

Corrugated Roofing Sheet Making Machine

,

Three Layers Roofing Sheet Making Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
10000-15000USD
Packaging Details
7500*1500*1400
Delivery Time
45days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description



Triple Layer Roof Sheet Roll Forming Machine
Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet three layers roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time

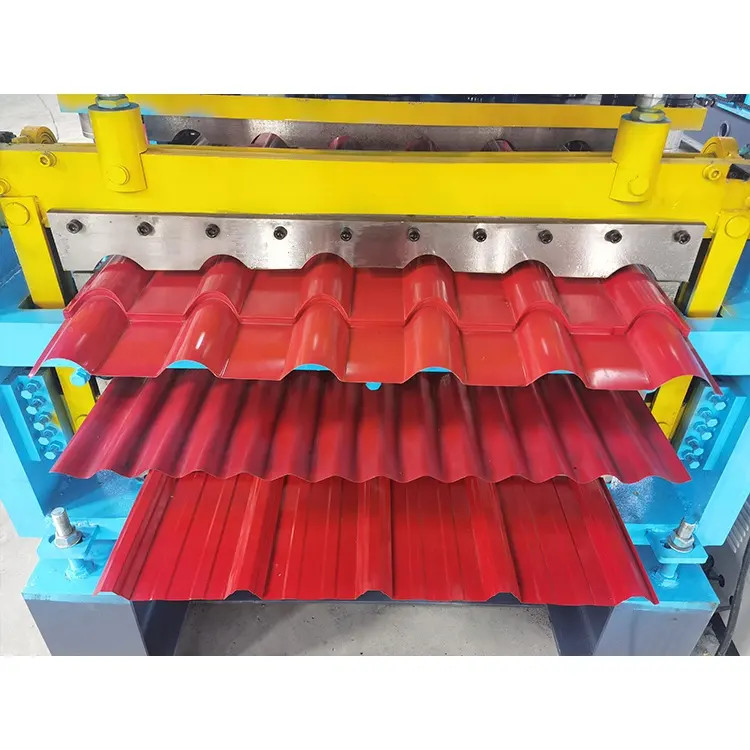

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making 0

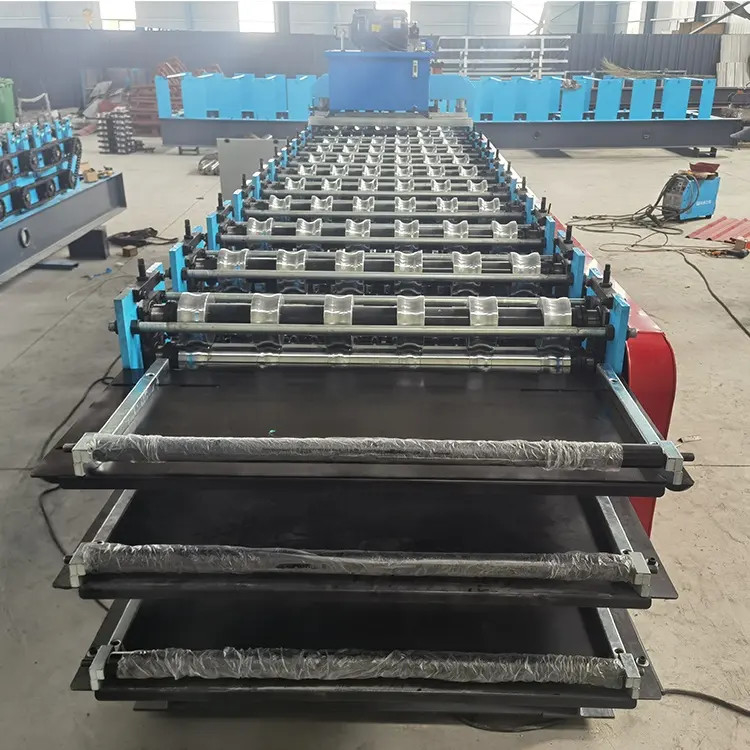

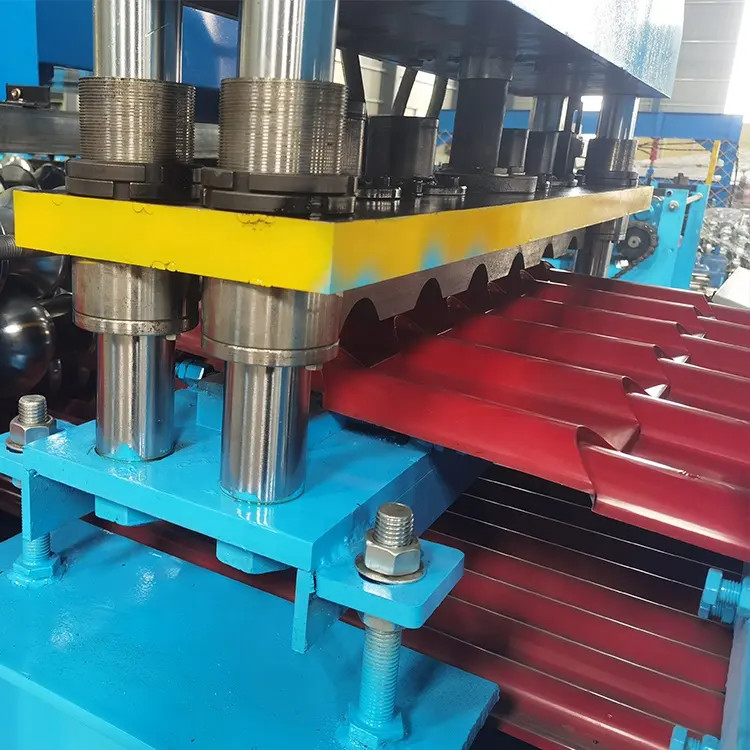

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making 1Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making 2Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making 3
working principle.
The tile pressing machine belongs to the cold bending roll forming machine, which mainly presses the color steel plate into the required shape, size and shape by rolling. When the machine works, the power group drives the roller shaft, and the roller forming wheel is used to roll the color steel plate with the specified thickness. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, cinemas and other rooms and walls.
Product Specification
No
Item
Data
1
Raw material width
1000-1200 mm
2
Sheet effective width
750-1000 mm
3
Raw material
Color steel sheet or galvanized steel sheet
4
Material thickness
0.3-0.8 mm or customized
5
Forming roller material
45# steel plated with chrome
6
Shaft diameter
80mm
7
Forming roll station
13-18steps
8
Main motor power
3 KW 4 KW 5.5 KW(according to type)
9
Hydraulic power
4 KW (according to type)
10
Control system
PLC control

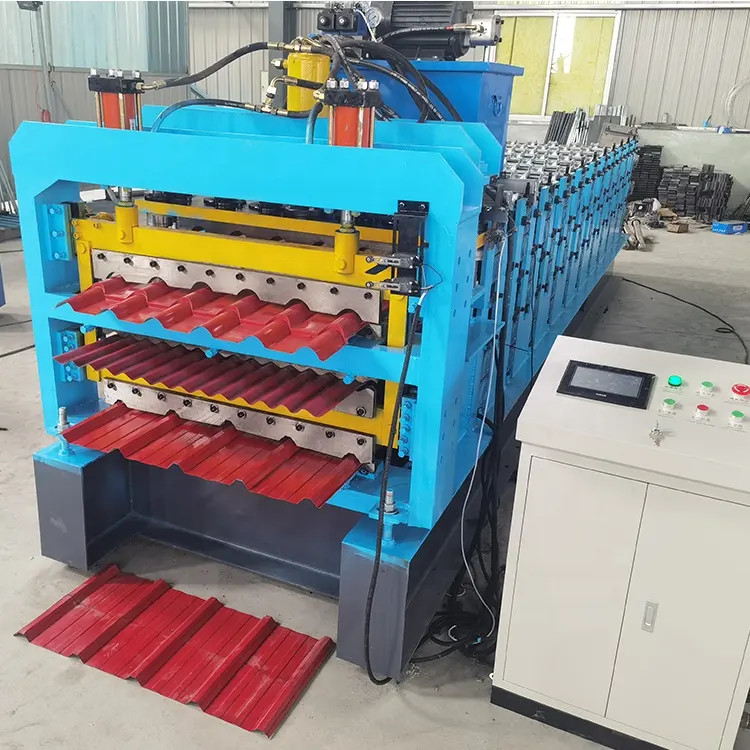

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making 4

Roll Forming Machine Components:

No. Name Qty
1 De-coiler 3Set
2 Roll Forming Machine 1 Set
3 Hydraulic Cutting Devic 1 Set
4 PLC Control Box 1 Set
5 Output table 1 Set



Display and Application
Roof sheet three/double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making 5
