Fully Automatic C Purlin Steel Frame and C U Lip Cold Channel Roll Forming Machine

C Purlin Roll Forming Machine

Fully Automatic Roll Forming Machine

C U Lip Roll Forming Machine

Place of Origin:

china

Brand Name:

FMS

Certification:

Request A Quote

Product Details

Machine Size:

Depend On Profiles

Machine Weight:

2500KG

Form Speed:

15-20m/min

Roller Materials:

45#Steel

Warranty:

1 Year

Thickness:

1.5mm

Hydraulic Motor:

5.5KW

Forming Stations:

Cutting Method:

Hydraulic Cutting

Highlight:

C Purlin Roll Forming Machine

Fully Automatic Roll Forming Machine

C U Lip Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

10000

Packaging Details

Naked with Plastic Film.

Delivery Time

45 worl days

Supply Ability

20sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

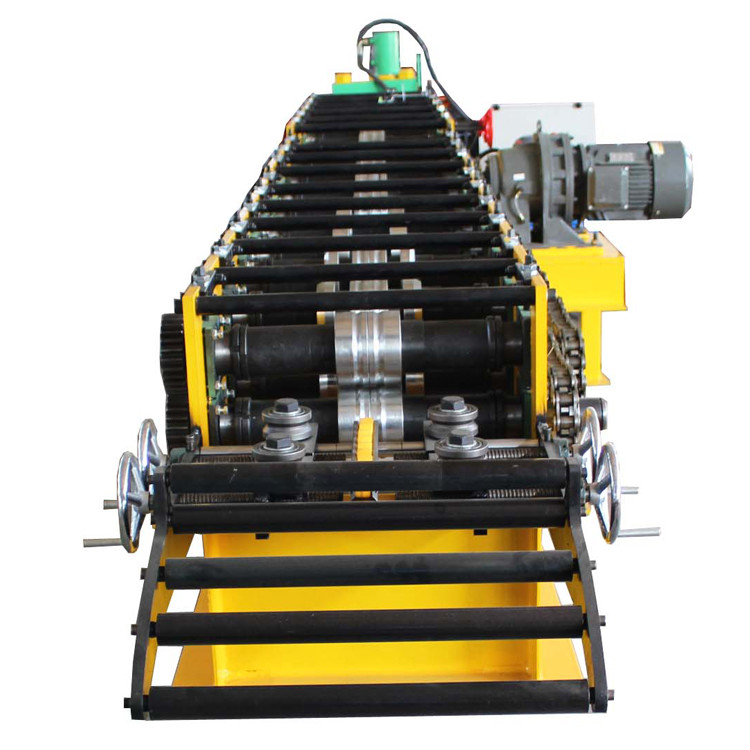

Fully Automatic C Purlin Steel Frame and C U Lip Cold Channel Roll Forming Machine

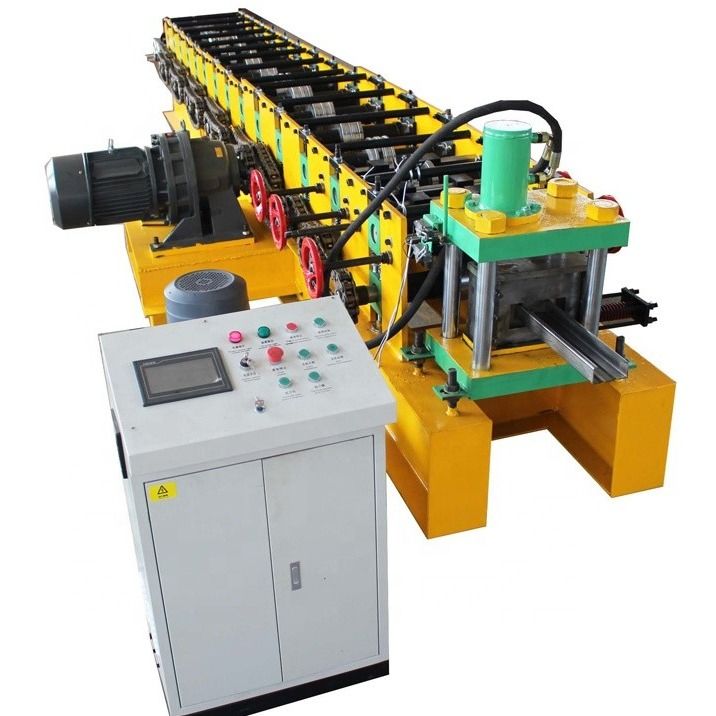

The C purlin cold bending forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The Steel frame C U purlin cold bending forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 10 to 15 meters per minute, and the normal operation speed is 8 to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.Product

Application

Color steel roll panel is the color coating steel plate and the roller of cold bending into various wave types of pressure plate.It is used in industrial and civil building, warehouse, construction, large span steel structure housing roof, walls, and internaland external wall decoration, is a lightweight, high strength, color rich affluence, convenient and quick construction,earthquake, fire, rain, long service life, maintenance free characteristics, has been widely applied

Weight	About 2500kg
Size	About 8m x 1.2m x 1.3m (length x width x height)
Thickness	1.0-2.0mm
Power	11kw
Production Capacity	10-20m/min
Voltage	380V/50HZ 3 Phase(as Customer's Request)
Forming rollers material	45# steel with CNC machining and surface is being hard chrome
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	DELTA PLC and Converter
Hydraulic unit motor power	Main motor power: 5.5kw
Hydraulic unit motor power	5.kw

Working Flow

Metal stud rail Omega C U channel steel drywall manufacturing machine Light steel keel making machine

Working Flow and Main parts of Steel Channel Making C Stud Roll Forming Machine

Uncoiling —— Material Feeding —— Roll Forming —— Step Making —— Automatic Cutting —— Products Receiving

Choice of standard EU size or custom size

Fully Automatic C Purlin Steel Frame and C U Lip Cold Channel Roll Forming Machine 5

CD and UD 2 in 1 roll forming machine | 2 in 1 u stud machine | 2 in 1 c stud machine | C profile roll forming machine | U stud roll forming machine

To save space and price, some customer like to choose 2 in 1 roll forming machine, it means one machine can produce 2 shapes products. We can customize machine as your need, like

1. Omega profile and u channel 2 in 1 roll forming machine

2. Omega profile and angle bead 2 in 1 roll forming machine

3. Omega profile and C channel 2 in 1 roll forming machine

4. CD and UD 2 in 1 roll forming machine

5. C channel and angel bead 2 in 1 roll forming machine

6. Angle bead and u stud 2 in 1 roll forming machine

Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:

Fully Automatic C Purlin Steel Frame and C U Lip Cold Channel Roll Forming Machine 6
