Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine | Raw Material: | Galvalume, Galvanized, PPGI, Aluminum |
|---|---|---|---|
| Control SystePLCm: | PLC | Thickness: | 0.25-0.8 Mm |
| Tile Type: | Roll Forming Machine/building Material Machinery | Condition: | New |
| Color: | As Per Customer Reqeust | Motor Power: | 3.5KW |
| Raw Material Width: | 1000mm | Machine Weight: | 3.15 T |

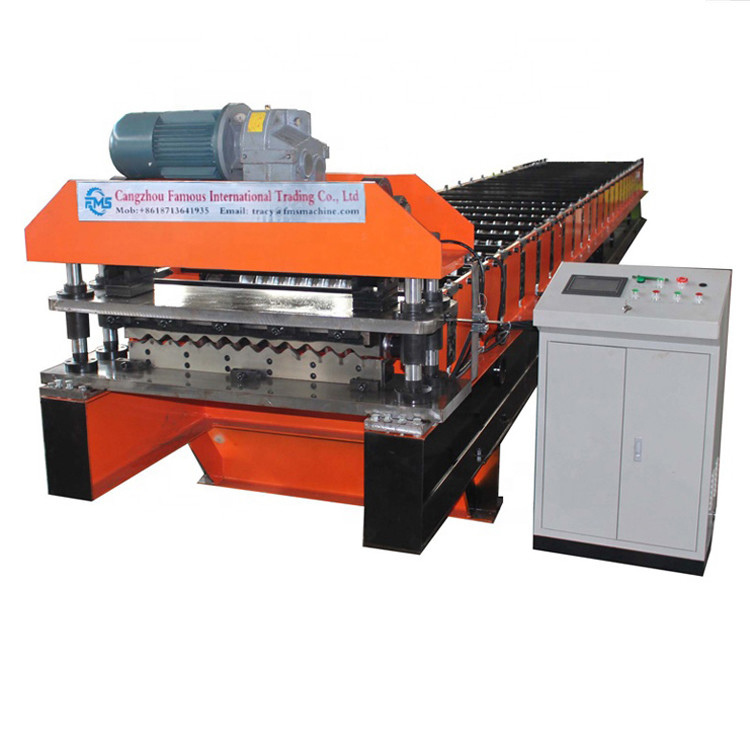

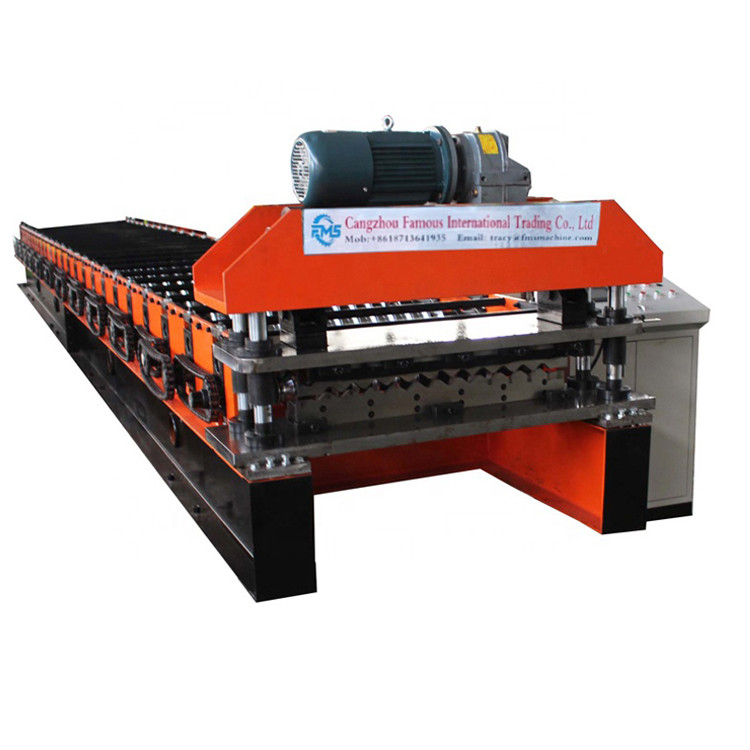

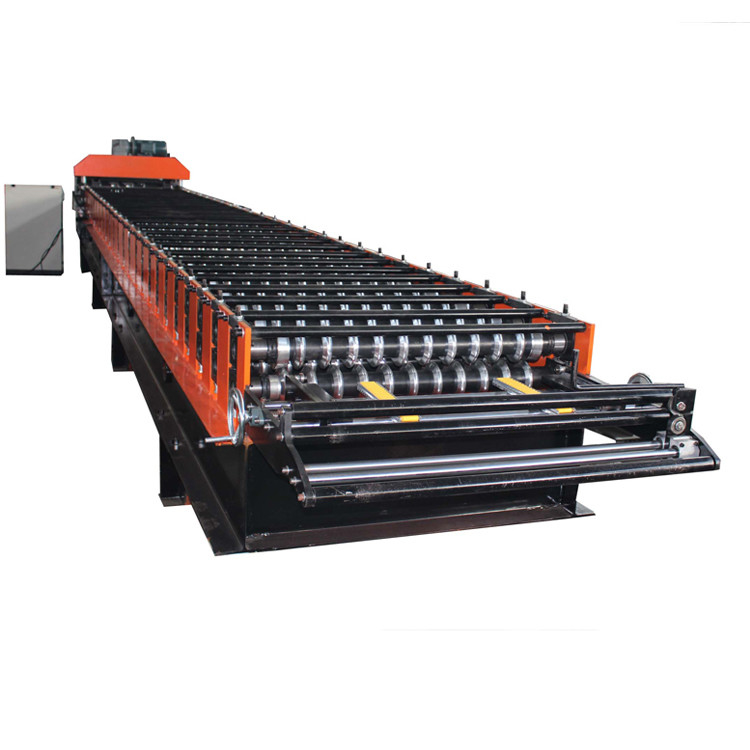

Hydraulic Cutting 850mm Corrugated Type Tile Forming Machine
The Corrugated roll forming machine is a machine produced by the steel coils material, forming and post -shaped cutting. color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 8-15m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
They are widely used industrial and civil buildings, such as factory buildings, warehouses, gyms, exhibition halls, theaters, and other rooms, shopping centers, apartments, workshops, walls, and roofs.
Advantage
Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.
the Corrugated 850 roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world
