2024 New Design Factory Price Light Gauge Steel Villa Frame Roll Forming Machine

2024 New Design Factory Price Light Gauge Steel Villa Frame Roll Forming Machine

Factory Price Roll Forming Machine

2024 Design Roll Forming Machine

Villa Frame Roll Forming Machine

Place of Origin:

CHINA

Brand Name:

FMS

Certification:

CE

Model Number:

FMS-LGS

Contact Us
Request A Quote
Product Details
Material:
Galvanized Steel G550
Thickness:
0.75-1.2mm
Feeding Raw Material Width:
182mm
Inner Diameter Of Coil:
Φ 430-590mm;
Outer Diameter Of Coil:
≤ Φ1300mm;
Web Of C Profile:
89mm
Lip Or Edge Of C Profile:
10mm
Main Roll Forming Machine Weight:
Around 3000kg
Main Servo Motor Power:
7.5kw
Hydraulic Motor Power:
5.5kw
Highlight:

Factory Price Roll Forming Machine

,

2024 Design Roll Forming Machine

,

Villa Frame Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
35000$USD-50000$
Packaging Details
NAKED with plastic film
Delivery Time
30 Work days
Payment Terms
L/C, T/T, D/A, D/P, Western Union
Supply Ability
1 set/30day

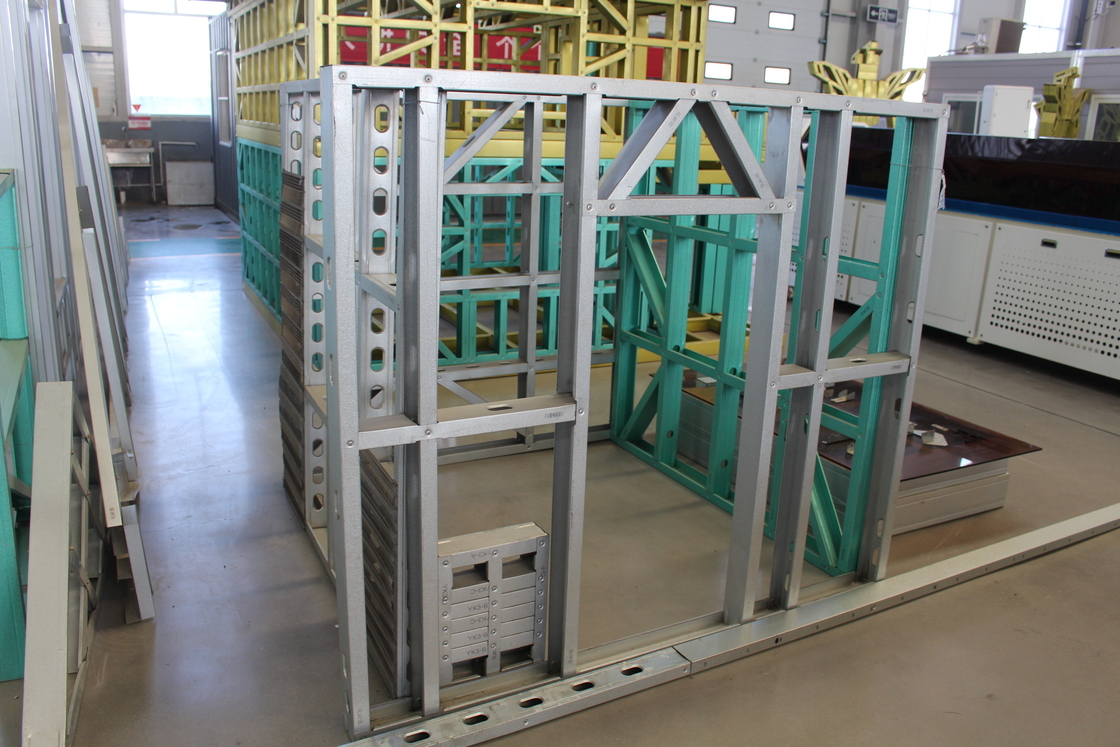

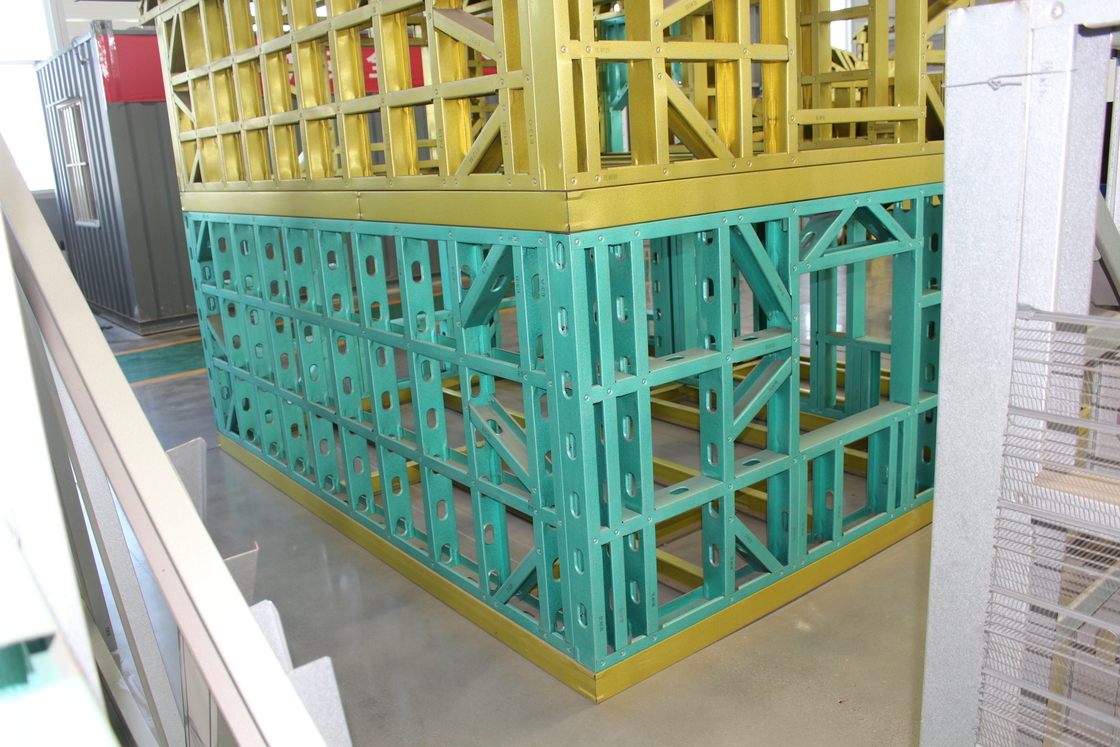

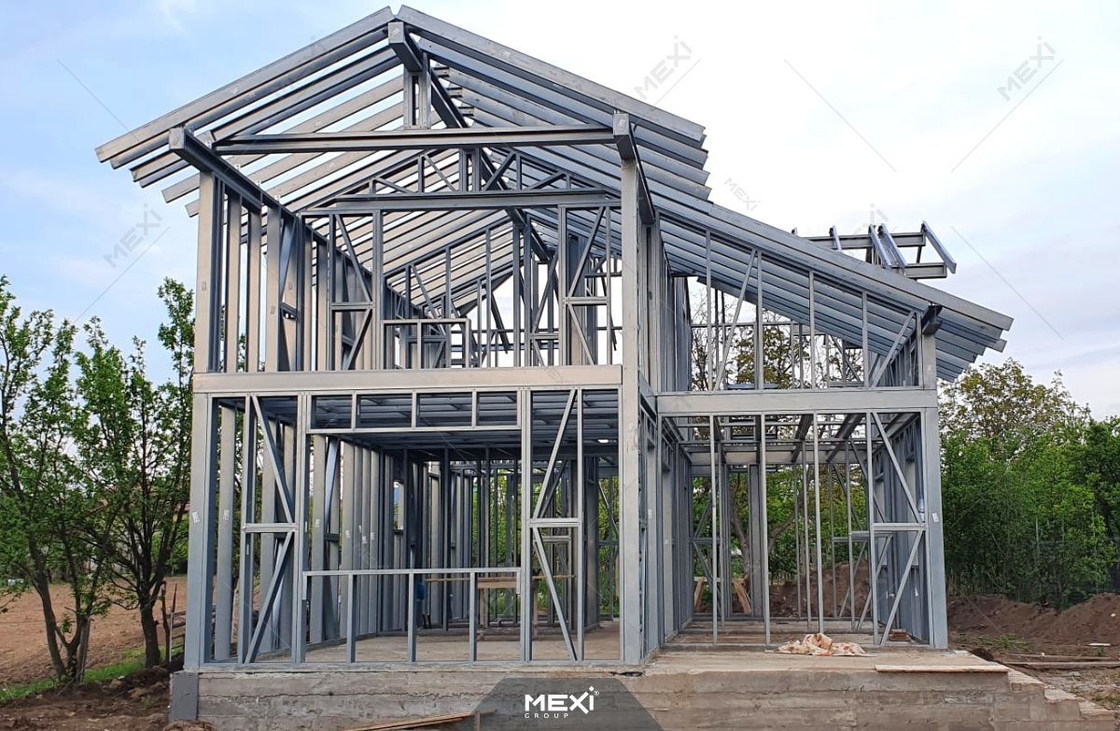

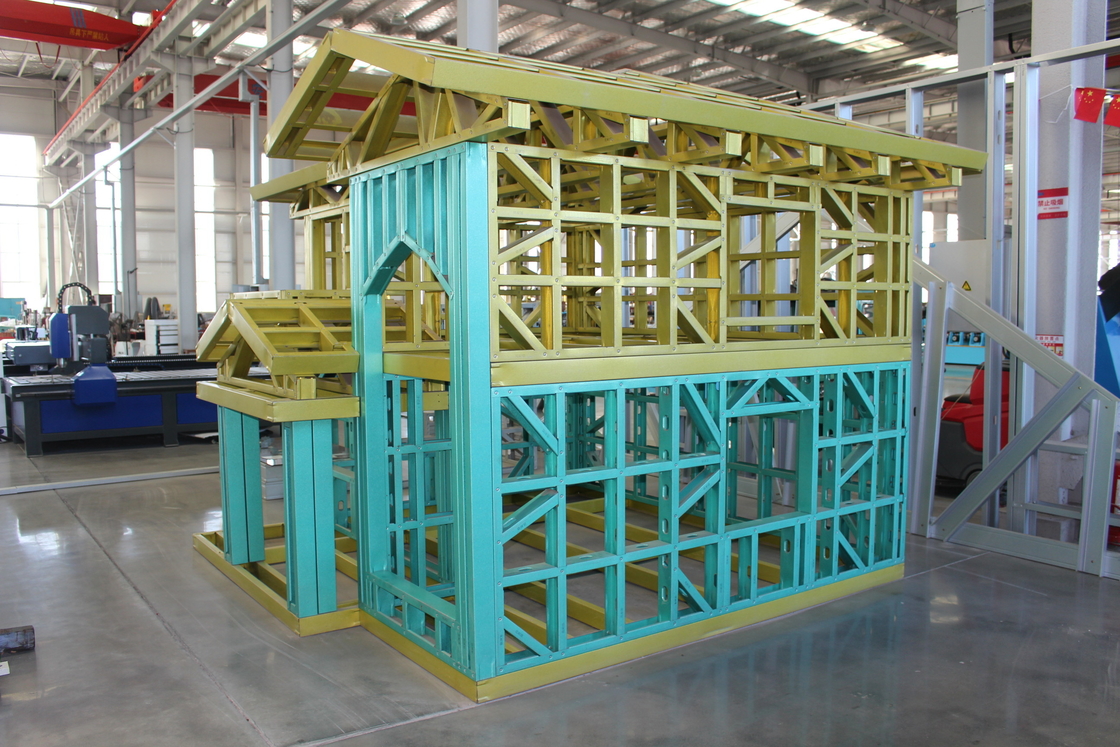

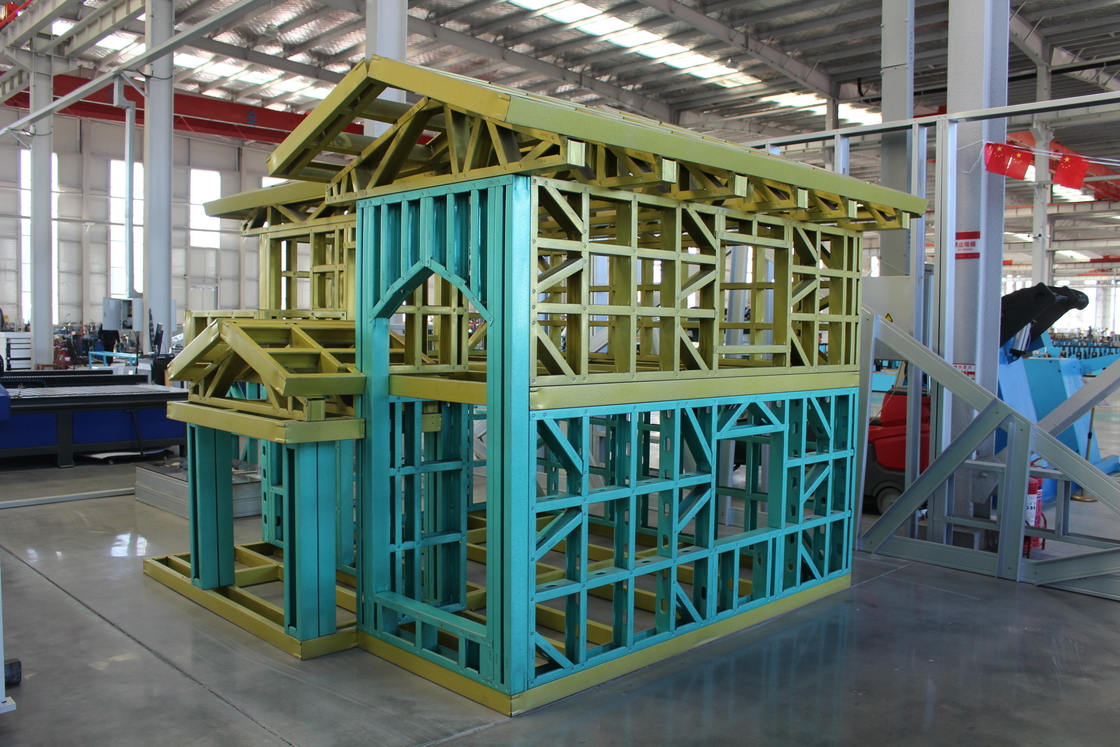

Product Description

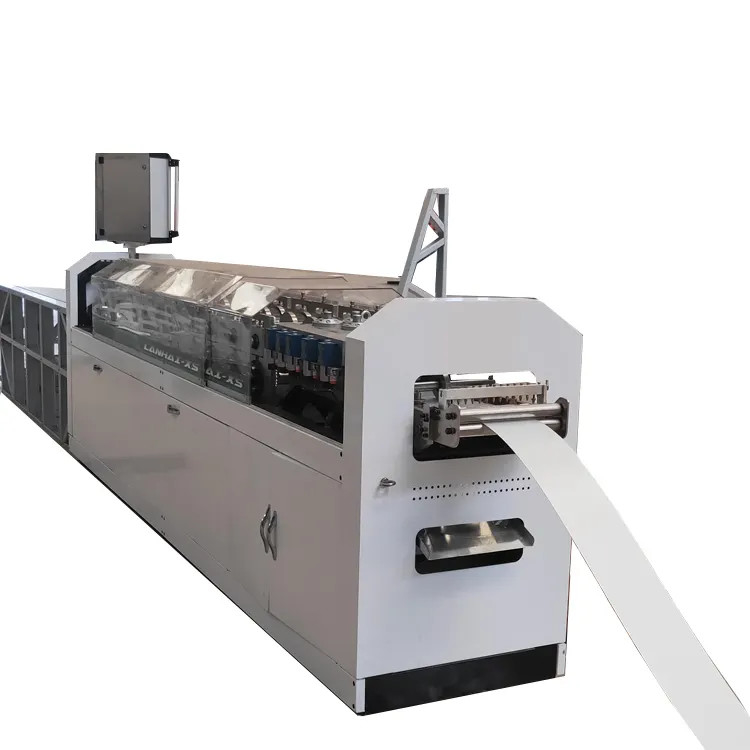

4. Technique Parameters
(1). Main roll forming machine size: 4000*800*1200mm;
(2). Main roll forming machine weight: around 3000KGS;
(3). Main servo motor power: 7.5KW with self locking function;
(4). Hydraulic motor power: 5.5KW;
(5). Voltage: 380V/50HZ/3PH;
(6). Forming steps: 12 steps (8 main roller stations, 4 finishing roller stations);
(7). Forming speed: around 30m/min (depend on the punch qty and cut length);
(8). Working capability: 5~8 Tons/8 hours (It can work 24 hours);
(9). Material of roller: imported DC53 steel, CNC Center Machining, heat treatment HRC58-62°, fine grinding;
(10). Material of main shaft: 40Cr steel tempering and fine grinding;
(11). Sprocket wheel: #45 steel high-frequencies quench;
(12). Cut-off system: hydraulic cutting device;
(13). Material of blade: imported tungsten steel with quenched treatment 60-62°C;
(14). Tolerance for cutting and punching: ±0.5mm;
(15). Tolerance for forming: ±0.75mm;
(16). Control system: 19' touch screen and one main control box;
(17). Main electronic parts brand: Mitsubishi PLC from Japan, Schneider Relay from France, Omron Encoder from Japan, INVT Servo Motor from China;

(18). Material for frame of machine: fine welded structural steel;
(19). Painted color: Gray & Blue.
5. Main Accessories
(1). Main Roll Forming Machine;
(2). 3 Tons Manual Un-coiler;
◊ Function: bearing steel coil, rotating steel coil; with micro-braking device to prevent inertia from running forward during emergency stop.

◊ Driving method: pulling by the roll forming machine;
◊ Max Loading Weight: 3 Tons;
◊ Inner Diameter: Φ430-590mm;
◊ Outer Diameter: ≤Φ1300mm;
(3). Driving and Hydraulic System;
(4). Equipment Control Software;
(5). Product Software: 1 set;
(6). (NO VERTEX SOFTWARE)VERTEX BD Design Software: 0 set;
(7). Automatic Punching Device (Service Hole, Dimple Hole, Lip Cut, Web Notch, Lip Notch, Blot Hole,Shrinking Groove );

(8). Hydraulic Post-cutting Device (material: SKD-11);
(9). Automatic Printing Device: print on two height sides symmetrical;
(10). Run Out Table: 4 meters.



VERTEX BD Design Safteware
Vertex BD is the leading software system for cold formed steel. Vertex provides complete architectural design and product information management solutions for commercial and residential building design and manufacturing. Vertex BD is based on a flexible platform to respond to the changing needs of the framing and manufacturing industries. This flexibility enables you to make the most of your unique building processes.



“The benefits are not limited to the design office. Since the switchover, the factory has benefited greatly from the clear fabrication drawings and precise cutting list information. The site installers have seen an improvement in the quality of the drawings and 3D detailing they are supplied, and we now have the ability to assist accounts and stock control with accurate bill of materials information.”-Kimberly Manufacturing Pty Ltd - Australia


“The information we get from Vertex is clear, concise and understandable. 99.9% of what we put out fits without any onsite modification. Brilliant!”-Dan Miller, Senior CAD Designer, Panel Systems Inc.

Features of Vertex BIM:
◊ Frame structures for walls, floors, and roofs are automatically generated to save your design time.
◊ Real 3D modeling ensures 100% accuracy and reduces design defects.
◊ Automatically generate frame architecture drawings and building elevation drawings.
◊ Generate accurate profile blanking tables and bills of materials to accurately estimate items.
◊ Various CNC output files can be generated to meet production needs.
◊ The powerful and flexible design platform can customize the profile library and frame generation rules according to customer needs.

◊ Compatible with other BIM software through powerful IFC import and export tools.
◊ Vertex engineering analysis function can be used for structural calculation.
