Product Name: | Adjustable Solar Panel Support For Metal Roof Roll Forming Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation |
---|---|---|---|
Raw Material: | PL,GL,PPGI,PPGL | Voltage: | 380/50Hz/3PH |
Control System: | PLC | Speed: | 10-15m/min |
Thickness: | 0.3mm-0.8mm | Power: | 3Kw |
Warranty: | 1 Year | Hydraulic Station Power: | 3KW |
High Light: | adjustable metal roof roll forming machine,PL metal roof roll forming machine,solar panel support metal roofing machine |

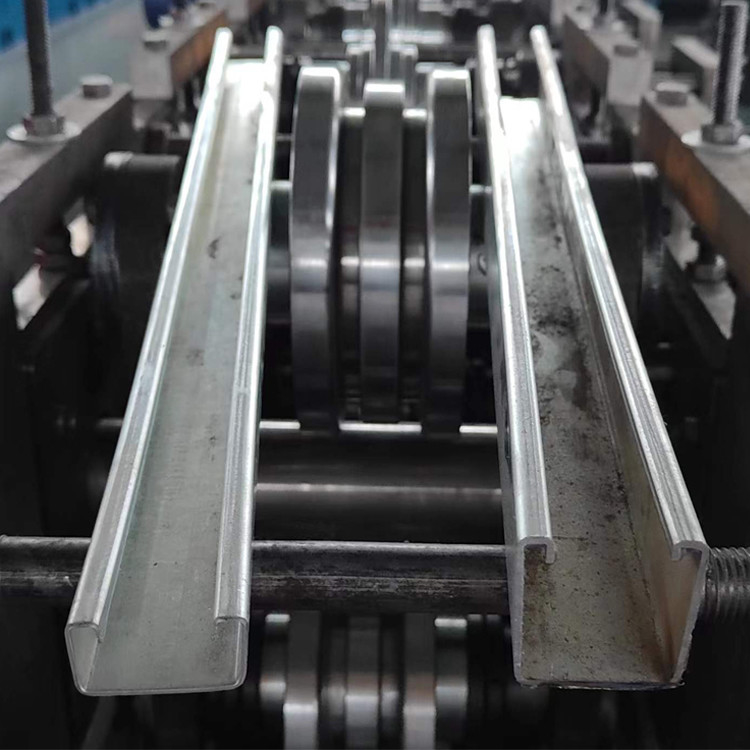

Adjustable Solar Panel Support for Metal Roof Roll Forming Machine
Solar panel support roll forming machine is used to Production of solar photovoltaic support.It's important to choose a good Solar panel support roll forming machine as Solar energy is a new type of energy, energy saving and environmental protection. the solar energy bracket roll forming machine has a much more wider scope and without length limitation. From simple Tracks to complex profiles, we can manufacture custom roll formed products for any industry.
No. | Item | Description |
1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
2 | Raw Material Thickness | 0.3mm-0.8mm |
3 | Working Speed | 10-15/min |
4 | Roller Station | 12 Raws |
5 |
Dimension (L*W*H) |
4500 mm*1200 mm*1200 mm |
6 | Machine Weight | 3800 KG |
7 |
Electrical Control System |
PLC |
8 |
Drive Motor Power |
3 KW |
9 |
Hydraulic Station Power |
3 KW |
10 |
Power Supply |
380V/60HZ/3 PH |
11 |
Cutting Accuracy |
±2 mm |
12 |
Driving Mode |
Single Chain 1 inch |
13 |
Material of Shaft |
70 mm 45#steel forged |
14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

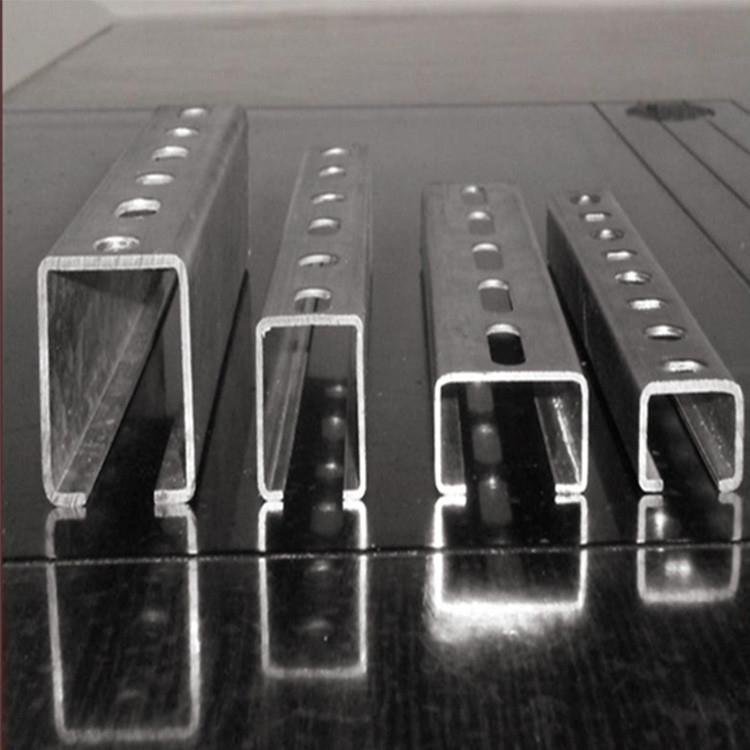

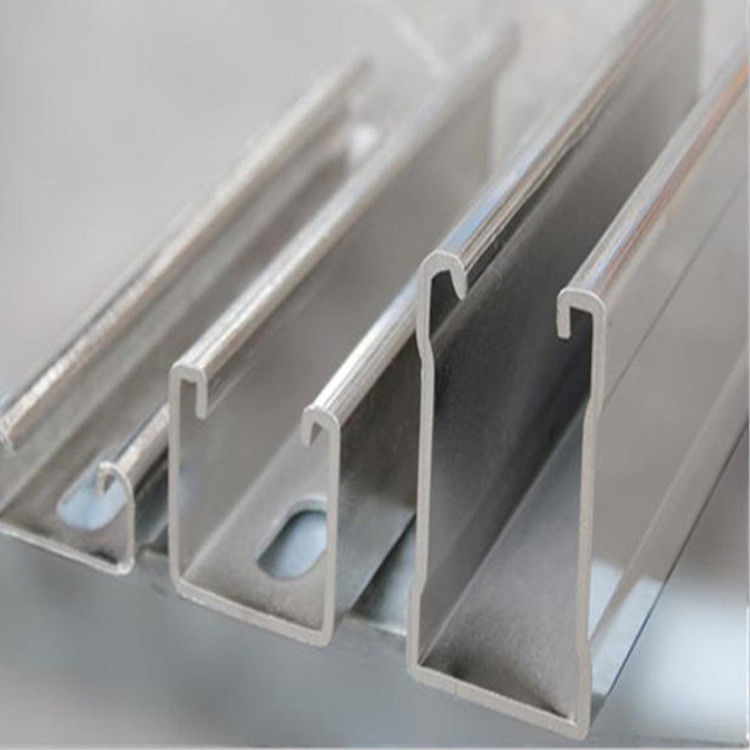

The new solar photovoltaic bracket is a new type of photovoltaic solar cell, which is a bracket of photovoltaic solar technology, including the concrete column, connect the bottom of the beam and embrace the hoop before support, connect the support of the upper beam and the hoop, a PURLIN, a PURLIN The PUR seat installed on the beam. The beneficial effect is simple structure, convenient installation and transportation, with certain earthquakes and wind resistance, with universal value and practical value. The solar stent production equipment we provide can complete the production of new solar scaffolding. The new solar scaffolding has been produced and operated among many enterprises and has gained good benefits.
Advantage
As a leading manufacturer of roll forming machines in China, Cangzhou Famous's solar support machine has high quality, long service life, easy operation, and excellent after-sales service that has won the appreciation of customers around the world.
Combined with a decoiler and receiving table, it formed a complete production system. The production line is usually operated by one or two workers.
This machine can work at a speed of 30 meters per minute and the profile can be customized. Additionally, we manufacture other types of roll forming machines, such as roof tiles machines, floor deck machines, purlin machines, guardrail machines, gutter and downspout machines, etc.
