Automatic 2 Mm C Purlin Roll Forming Machine Channel Adjustable

Galvalume c purlin roll forming machine

2mm c purlin roll forming machine

channel adjustable purlin roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CZ Channel Manual Adjustable Purlin Roll Forming Machine

Certification:

ISO CE

Model Number:

Request A Quote

Product Details

Product Name:

Channel Adjustable

Raw Material:

Galvalume, Galvanized

Dimension(L*W*H):

7000 Mm*1500 Mm* 1500

Material Thickness:

1-2 Mm

Weight:

4.5T

Production Capacity:

10-25m/min

Voltage:

380V/50HZ/3PH

Main Motor Power::

15Kw

Highlight:

Galvalume c purlin roll forming machine

2mm c purlin roll forming machine

channel adjustable purlin roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

Automatic 2 Mm C Purlin Roll Forming Machine

The C -type steel machine is mainly used by passive fengers, flat installations, punching devices, cutting off devices after forming, hydraulic stations, computer control systems, etc. This machine adopts the characteristics of automatic fly saw punching, simple operation and other characteristics. The main use products can be used as the main force structure of large and medium -sized industrial civil buildings. The C -type steel machine, also known as the C -type steel sandalwood machine, is one of the many types of tile compressive machines. It is a basic type of tile press. Unlike the color steel plate molding machine, it is hydraulic power, and the power is very high. It is generally around 22kW. It is similar to the shear bending machine. Generally, the control process is complicated.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3.5 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The C -type steel is widely used in the barrier and wall beams of steel structure buildings, and can also be combined into lightweight roofs, brackets and other building components. In addition, pillars, beams and arms in mechanical light industry can be used.

Advantage

The finished C -type steel finished product of the C -type steel machine equipment has good straightness and straight pressure, fully automatic fixed -length cutting, automatic punching, high degree of automation, fast installation and convenient installation. Structures, such as factory buildings, warehouses, garages, airplanes, exhibition halls, movie theaters, stadiums, marketing roof load loads and wall support. Cold -curved steel is the main material for making light steel structures. It is made of steel plate or steel band cold bending.

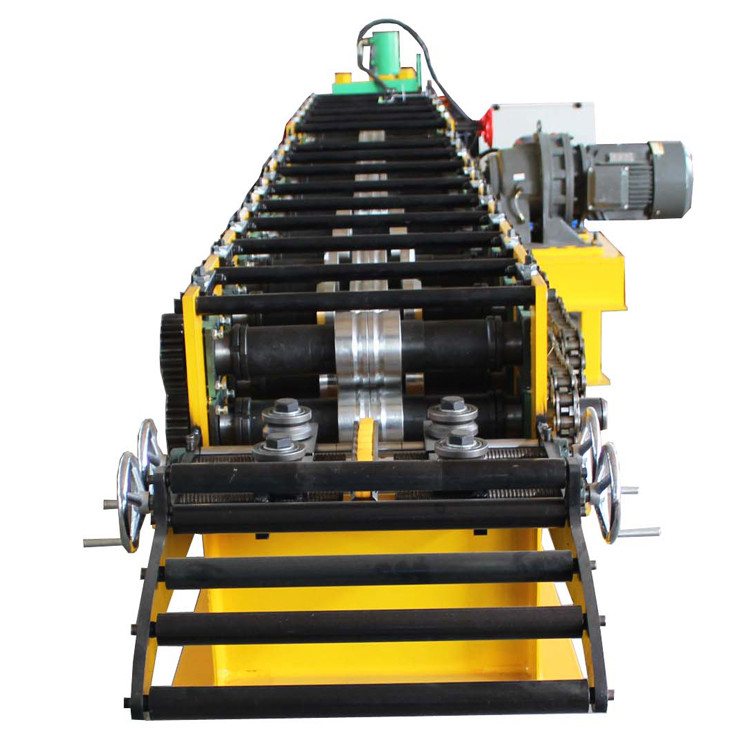

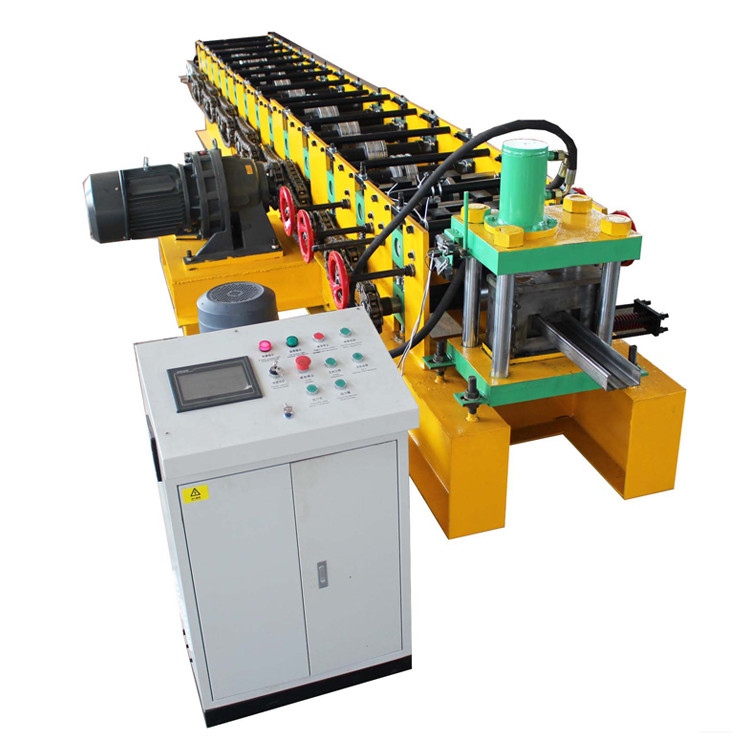

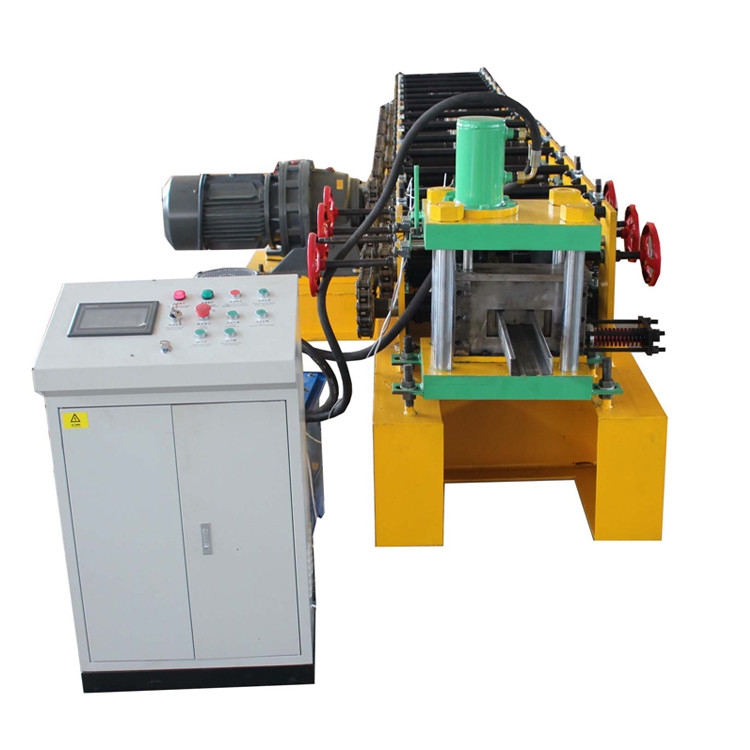

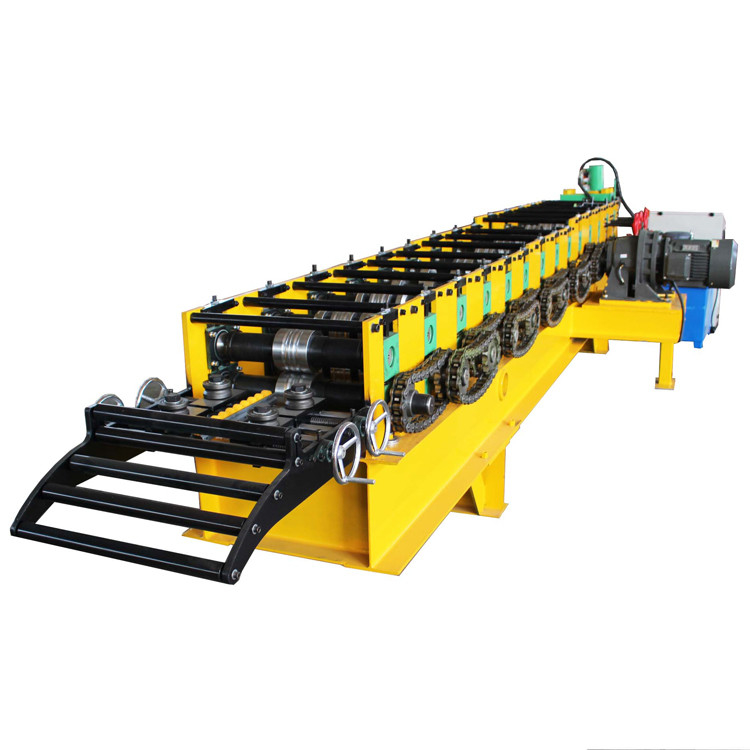

Automatic 2 Mm C Purlin Roll Forming Machine Channel Adjustable 0
