Product Details:
Payment & Shipping Terms:
|
| Dimension: | 6.5m*0.95m*1.2m | Cutting Type: | Hydraulic Cutting |
|---|---|---|---|
| Roller Stations: | 18 Stations | Forming Speed: | 0-15m/min |
| Warranty: | 1 Year | Power: | 7.5KW |
| Product Name: | Shutter Door Roll Forming Machine | Material: | Galvanized Steel Coil, Galvalume Steel Coil |
| High Light: | versatile roll shutter door machine,0.8mm thick roll shutter door machine,1.2mm roller door roll forming machine |
||

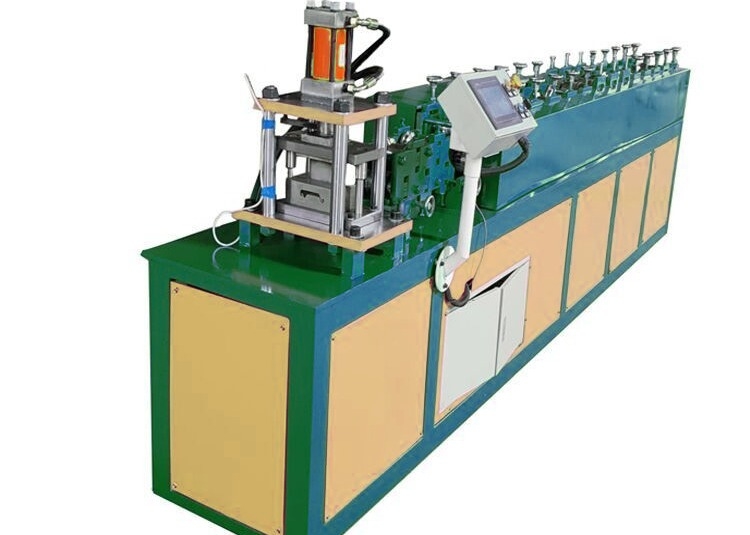

The Shutter Door Roll Forming Machine is a special metal roller shutter slats roll forming machine, designed for producing roller shutter doors. It is designed with a compact size and high efficiency, and is suitable for both small-scale and large-scale production. The main components of the machine are made of 45# steel, which has excellent strength and durability, ensuring long-term use. The overall dimension of the machine is 6.5m*0.95m*1.2m, and its weight is 3T. The roller material is 45# steel, and the thickness of the formed roller shutter door ranges from 0.8mm to 1.2mm. The power consumption of the machine is 7.5KW, which is energy-saving and efficient. It is a reliable and cost-effective roller shutter door machine to meet different production requirements.
| Parameters | Values |
|---|---|
| Product Name | Shutter Door Roll Forming Machine |
| Power | 7.5KW |
| Weight | 3T |
| Forming Speed | 0-15m/min |
| Thinckness | 0.8-1.2mm |
| Material | Galvanized Steel Coil, Galvalume Steel Coil |
| Voltage | 380V/50Hz/3Phase |
| Warranty | 1 Year |
| Roller Stations | 18 Stations |
| Roller Material | 45# Steel |
FMS Brand Shutter Door Roll Forming Machine is made of high quality galvanized steel coil and Galvalume steel coil, with 18 roller stations, and its weight is 3T. It is certified by CE and has 1 year warranty. Its forming speed is 0-15m/min, and the minimum order quantity is 1 set. The price is 10000, and delivery time is 45 days. The packaging details are naked with plastic film. The payment terms are T/T, L/C, and the supply ability is 20 sets per month.

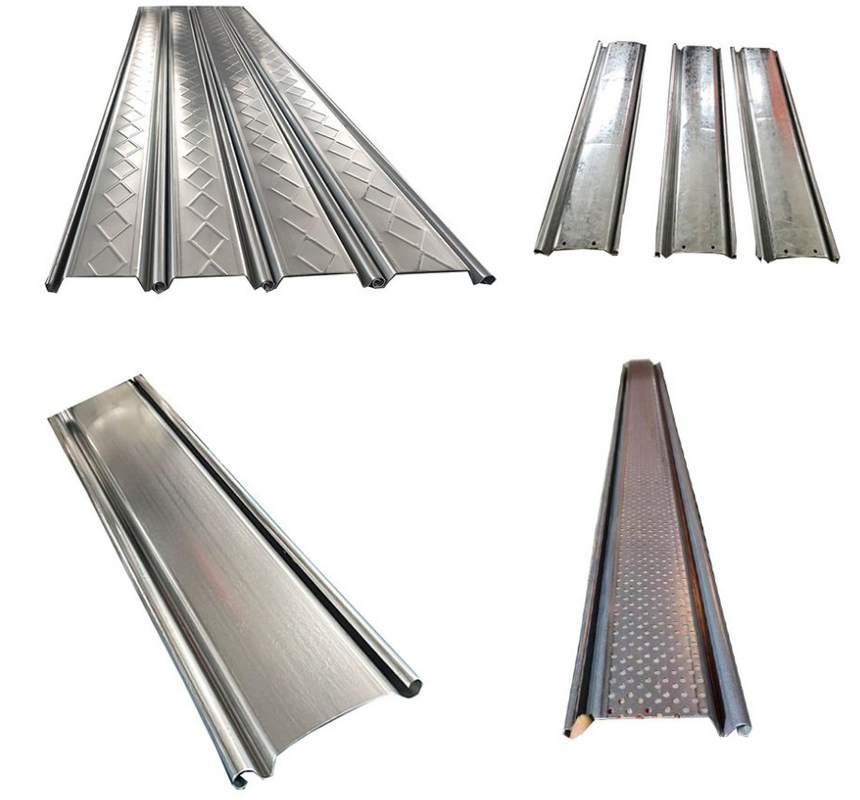

The metal roller shutter slats roll forming machine is widely used to produce roll up door, shutter door, and shutter bottom. It is suitable for both indoor and outdoor applications, such as warehouses, factories, garages, storage rooms, and shopping malls. This machine is very efficient and can produce high-quality roll forming products with high precision. The finished products are strong and durable, which can greatly improve the security and aesthetics of the sites.
Shutter Door Roll Forming Machine
This roller shutter door machine is perfect for roll up door forming, and it meets the requirements of shutter bottom roll forming. It is made of 45# steel, with a thicknes of 0.8-1.2mm, and a weight of 3T. The voltage is 380V/50Hz/3Phase, and the control system is PLC. It is certified by CE, and its minimum order quantity is one set. The price is 10000, and the delivery time is 45 days. The packaging is naked with plastic film. The payment terms are T/T and L/C, and the supply ability is 20 sets per month.
We provide a range of technical support and service for our Shutter Door Roll Forming Machines. We provide on-site installation and training, as well as off-site technical support to ensure that our machines are running smoothly and efficiently.
We also provide a comprehensive range of service contracts, which cover all aspects of the machines, from regular maintenance and servicing to repairs and parts replacement. Our service contracts can be customised to suit your specific needs.
We have a team of experienced technicians on-hand to provide technical advice, troubleshooting and support for our customers. All our technicians are highly trained and experienced in the maintenance and repair of our machines.
We also provide a full range of spare parts for all of our Shutter Door Roll Forming Machines. These parts are all manufactured to the highest standards and can be shipped quickly and efficiently to customers worldwide.
Main machine is nude,the computer control box is packed by plastic. The box is designed to protect the machine from any damage during transport. Inside, the machine is cushioned with foam and bubble wrap and is secured with straps and/or reinforced tape. The box is labeled with the product name and serial number. For international shipments, the box is also labeled with the appropriate customs information.
