| Product Name: | Size Adjusting 50-600 Perforated Cable Tray Roll Forming Machine Production Line Auto | Profile Width: | 90-600mm |
|---|---|---|---|
| Profile Height: | 50mm-100mm | Voltage: | 380V 50Hz 3PH As Per Requested |
| Main Motor: | 7.5 Kw | Material Thickness: | 1.0-2.3 Mm Galvanized Coils |
| Automation: | Automatic | Roller Material: | 45# Forged Steel |
| Size Of Machine Length: | 13000mm* Width 800mm* Height 1000m | ||
| High Light: | auto cable tray roll forming machine,50mm cable tray roll forming machine,size adjusting cable tray production line |
||

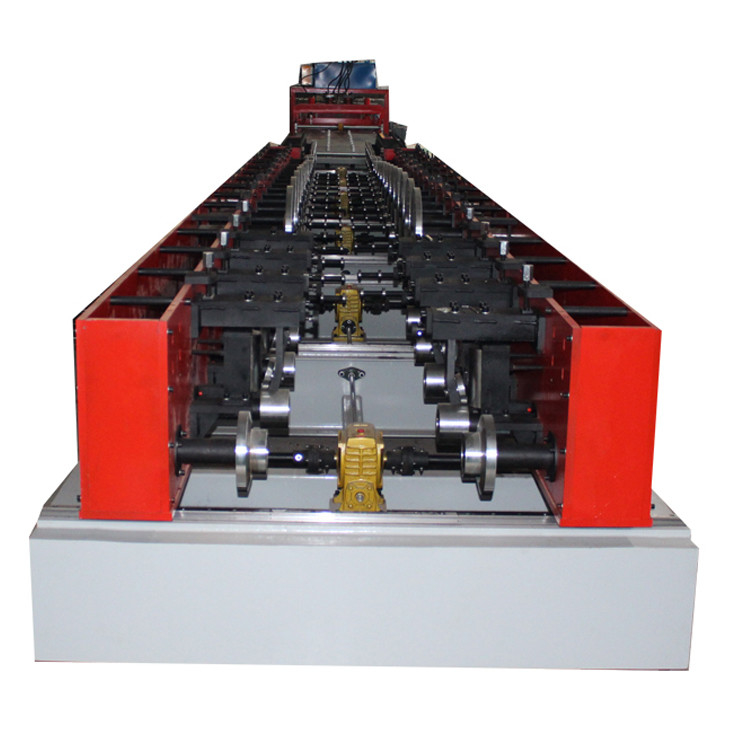

Size Adjusting 50-600 Perforated Cable Tray Roll Forming Machine Production Line Auto
Product ApplicationThe cable tray roll forming machine is capable of making different sizes of cable trays through replacing punching moulds.The cable trays produced by this roll forming production line are extensively used in factories and other building because of their accurate robustness. With full and special experience, we can customize cable tray forming machines or cable roll forming production lines according to customers’ profile drawing and specifications. Other high quality equipments, including metal roll forming machine are also provided as you require.
The perforated cable tray roll forming machine successfully integrated hydraulic punching device or high speed press machine for radiation holes on cable tray. Also the telescope shaft is available to rapid size changeover without toll change. Pre-cutting device equipped for cut off finished products.
specifications
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 7.5 kw |
| forming speed | 10-15m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet |
0.3-0.8 millimeter |
| the width of the colored sheet | as per requested |
| the effective of steel sheet | as per requested. |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 5500 kg |
| Voltage | 380 volt/3PH as per requested |
| Roll stand | 22 Roller station |
| PLC | overseas Brand |
| Dimension | 11.4m*1.3m*1.2m |
| Roller material | #45 steel |
| Frequency converter | containing |
| Computer operating screen | touch screen |
| Material of cutter | Cr12 |
Application

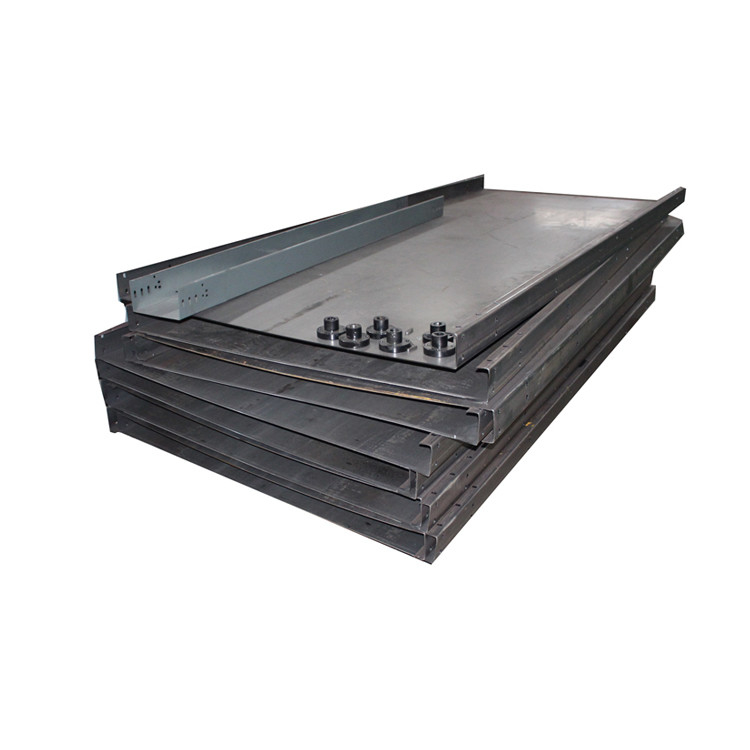

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
