| Material Width: | 1000mm | Cutting System: | Flying Tracking Cutting |
|---|---|---|---|
| Material Thickness: | 0.3-0.8mm | Product Name: | Sandwich Panel Making Machine |
| Forming Speed: | 3-6m/min | Control System: | PLC |
| Dimension: | 45m*2.5m*2.4m | Roller Surface Treatment: | Polishing And Chrome Plating |
| High Light: | 1 year warranty sandwich panel production,32kw sandwich panel production,sandwich panel making machine plc |
||

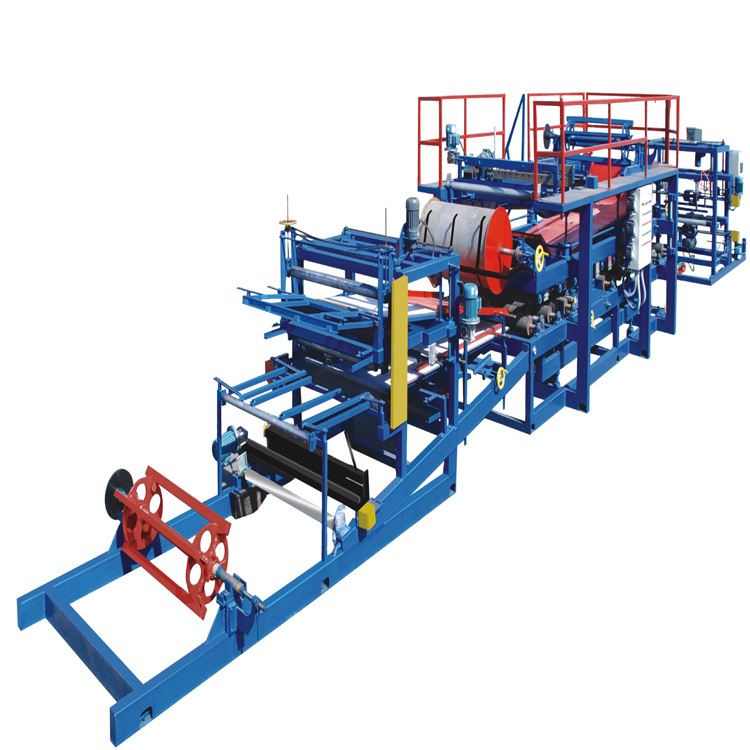

The Sandwich Panel Roll Forming Machine is an efficient and reliable production solution for sandwich panel production line, sandwich roof panel and wall panel production line, as well as rock wool sandwich panel production. This machine is powered by 380V/50HZ/3Phase voltage and equipped with 32KW main motor, with a material width of 1000mm and total weight of 16T. It offers a cutting length error of ±2mm, ensuring high precision and accuracy of the production process. This machine offers a high cost performance ratio and is perfect for sandwich panel production line, sandwich roof panel and wall panel production line, as well as rock wool sandwich panel production.
| Product Name | Sandwich Panel Making Machine |
|---|---|
| Main Motor Power | Total 32KW |
| Material Thickness | 0.3-0.8mm |
| Material Width | 1000mm |
| Cutting Length Error | ±2mm |
| Voltage | 380V/50HZ/3Phase |
| Roller Surface Treatment | Polishing And Chrome Plating |
| Control System | PLC |
| Cutting System | Flying Tracking Cutting |
| Dimension | 45m*2.5m*2.4m |
| Speciality | Rock Wool Sandwich Panel Production Machine, EPS Sandwich Panel Line |
FMS-sandwich Roll Forming Machine, the brand name of FMS, is a reliable and efficient production line for sandwich panel production with a model number of FMS-sandwich, originated in China. The advanced control system of PLC ensures the cutting length error within ±2mm. The material width of FMS-sandwich Roll Forming Machine is up to 1000mm and the total motor power is 32KW. Rolling surface treatment of FMS-sandwich Roll Forming Machine is polishing and chrome plating, which provides good corrosion resistance and longer service life.
FMS-sandwich Roll Forming Machine is applied in various areas such as rock wool sandwich panel production and other sandwich panel production. It is a perfect solution for customers who need a precise and efficient production line for sandwich panel production. FMS-sandwich Roll Forming Machine is a reliable and efficient industrial equipment that can greatly improve the production efficiency and reduce the labor intensity.
Brand Name: FMS
Model Number: FMS-sandwich
Place of Origin: China
Product Name: Sandwich Panel Making Machine
Control System: PLC
Forming Speed: 3-6m/min
Dimension: 45m*2.5m*2.4m
Total Weight: 16T
Customized Service: Sandwich roof panel and wall panel production line, sandwich panel making machine, rock wool sandwich panel production machine.
We offer comprehensive technical support and service for our Sandwich Panel Roll Forming Machine. Our team of experienced engineers can provide on-site installation and commissioning of the machine, as well as operator training. We also offer a range of maintenance services, providing trouble-shooting and repair whenever necessary.
Our customer service team is available to answer any questions you may have regarding the machine, as well as provide advice on how to maximise its performance. If you have any issues with the machine, our team can provide remote assistance to help resolve them quickly and efficiently.
We are committed to providing the highest quality of service and support for our Sandwich Panel Roll Forming Machine. If you have any queries, please don’t hesitate to get in touch with us.
The machine will be packed in a wooden crate. The crate will be strong enough to protect the machine from any kind of damage during transit.
The machine will be shipped by sea, air and land. Customers can choose the shipping method as per their convenience.
