Product Details:
Payment & Shipping Terms:
|
| Features: | Steel Coil Decoiling Machine | Product Name: | Automatic Steel Coil Hydraulic Decoiler |
|---|---|---|---|
| Loading Weight: | 5T, 7T, 10T | Speed: | 0-30M/minutes |
| Main Motor Powe: | 4KW | Key Selling Points: | Easy To Operate |
| Hydraulic Station Power: | 3KW | Weight: | Around 1000kg |
| High Light: | automatic steel coil decoiler hydraulic,5 ton steel coil decoiler |
||

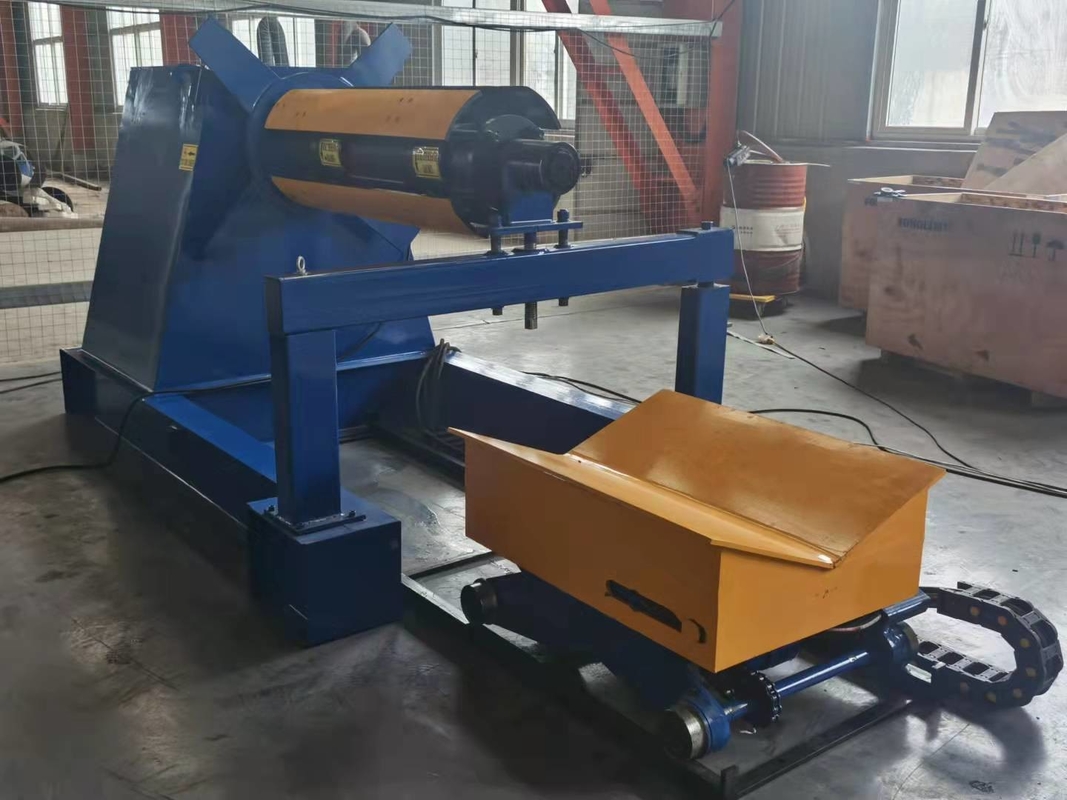

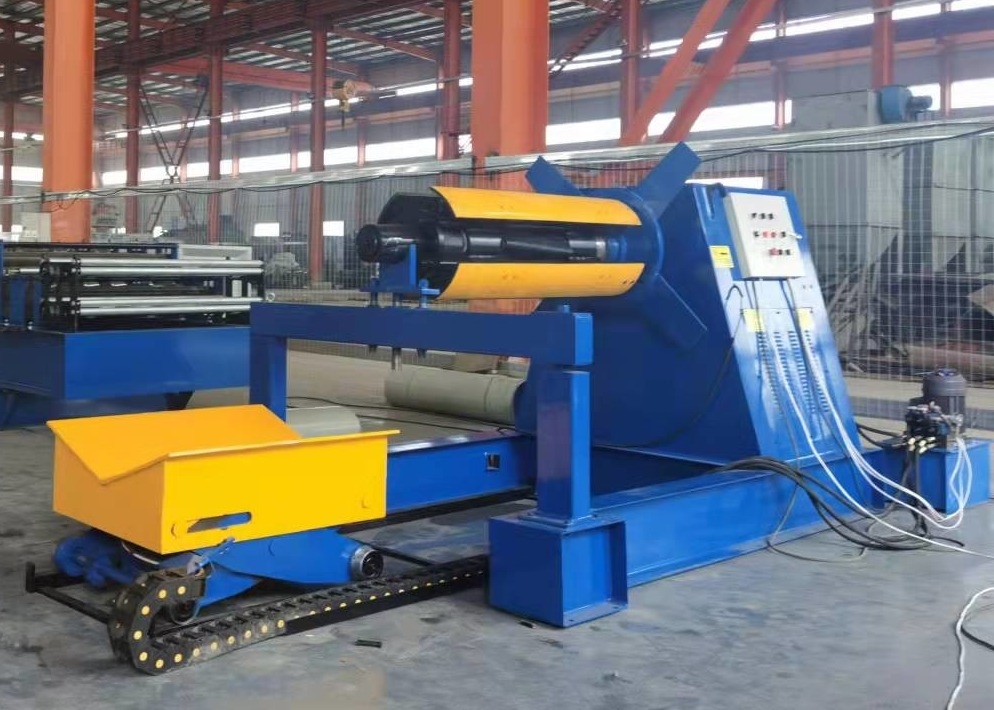

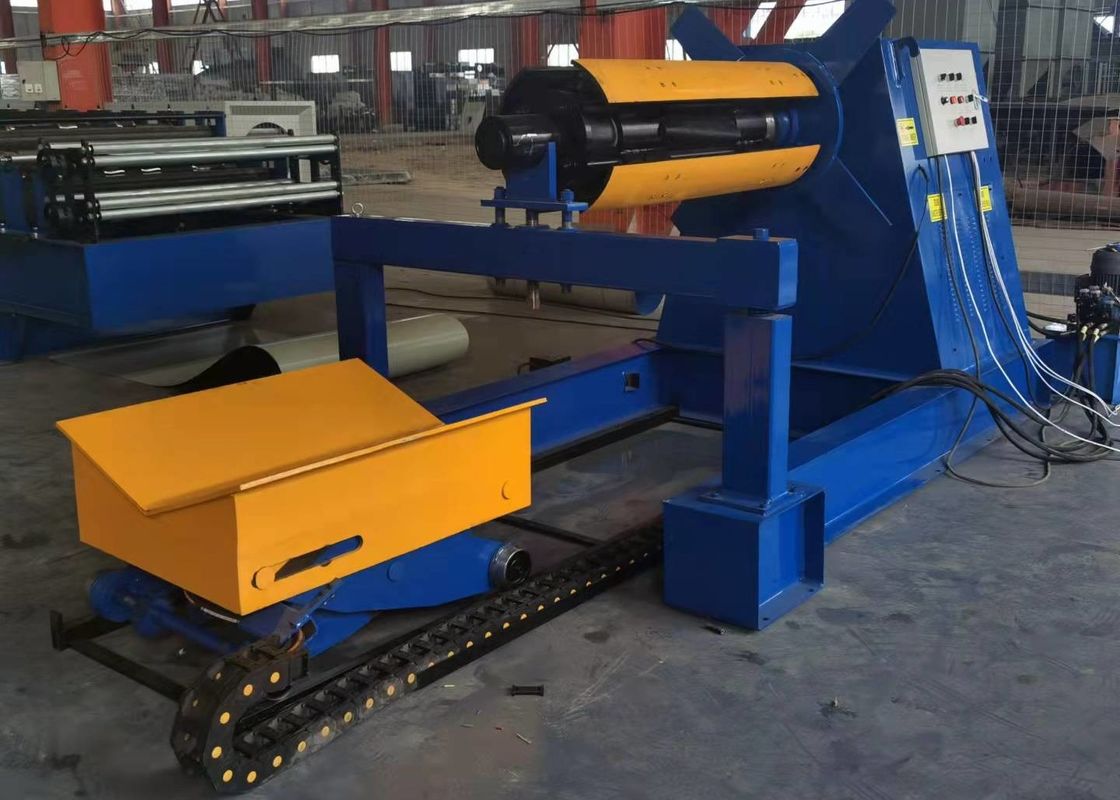

Automatic Steel Coil Hydraulic Decoiler with Coil Car 5ton, 7ton,10ton
Automatic Steel Coil Hydraulic Decoiler is used to decoil the steel coil during the roll forming or cut to length process. We can supply the decoiler which capacity of 5 tons, 7 tons and 10 tons, also with coil car or without coil car.
Technique Parameters of the decoiler
| Decoil type | hydraulic tense, motor-driven decoiler |
| Decoil motor power | 3KW(5T) |
| Hydraulic station power | 3kw(5t), with 3 electromagnetic valves |
| Fram: | welded with 300H steel and 25mm thickness steel plate |
| Supporting spindle | made of thick-walled seamless steel pipe, shaft diameter 230mm*65mm |
| Auxiliary support | add a manual support frame in front of the host |
| Max. steel coil width | 0-1250mm |
| Steel coil inner diameter | φ470mm - 530mm |
| Steel coil external diameter | maxφ1200mm |
| Control voltage | 3 phase, 240V, 50HZ |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
