PLC Control Metal Floor Deck Roll Forming Machine Automatic

PLC Control Metal Floor Deck Roll Forming Machine Automatic
PLC Control Metal Floor Deck Roll Forming Machine Automatic PLC Control Metal Floor Deck Roll Forming Machine Automatic PLC Control Metal Floor Deck Roll Forming Machine Automatic

Large Image :  PLC Control Metal Floor Deck Roll Forming Machine Automatic

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: FloorDeck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: PLC Control Automatic Metal Floor Deck Roll Forming Machine Condition: New
Dimension(l*w*h): 7000*1700*1600Mm Warranty: 1 Year
Power(w): 4kw Control System: PLC
High Light:

PLC metal deck forming machine

,

4kw metal deck forming machine

,

4kw 4kw metal decking machine

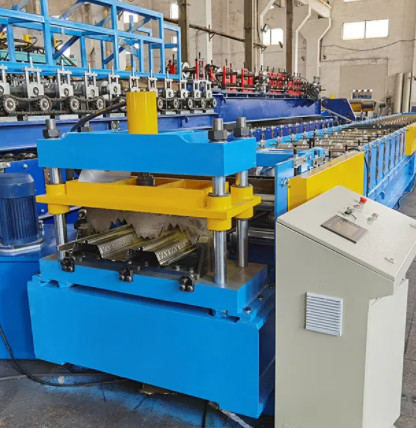

PLC Control Automatic Metal Floor Deck Roll Forming Machine

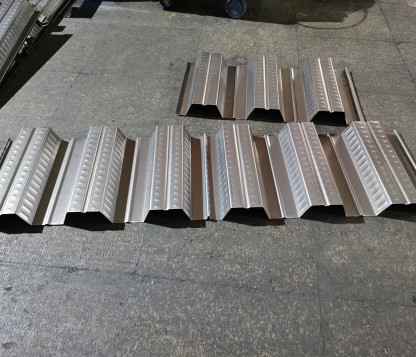

The roof deck is typically used as a structural component. The floor deck is made of cold formed steel plates. The floor deck in the roof and floor system is used to support the concrete or insulation film of the roof. Its design and construction amplify the characteristics of steel.



Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.8-1.5mm
3 Working Speed 3-5 m/min ( not including the cutting time)
4 Roller Station 16-18 Raws
5

Dimension (L*W*H)

7500 mm*1500 mm*1500 mm
6 Machine Weight 5800 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

7 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The floor deck combination machine is suitable for various irregular floor structures and has a very prominent application field in different types of prefabricated panels, high-speed railway structures, and buildings. There are many advantages to using floor decks, which can help users save installation costs and reduce the difficulty of disassembly. At the same time, it can also save decoration time.




Advantage


The material selection of the floor forming machine is economical, and the comprehensive cost advantage is particularly obvious. That is to say, this product is very effective, and its product can improve the quality and efficiency of laying; This device is also suitable for laying on large boards and can be placed over a large range. Reduce construction costs and help users save on decoration costs; After using the equipment, it can also reduce the construction period and reduce the cost of on-site installation.



The floor deck is convenient for transportation, installation, and erection, which can help with the workload of on-site steel reinforcement work and reduce the workload of on-site disassembly. At the same time, the power distribution of the board of directors is more reasonable, making it easy to ensure construction quality.



PLC Control Metal Floor Deck Roll Forming Machine Automatic 0
