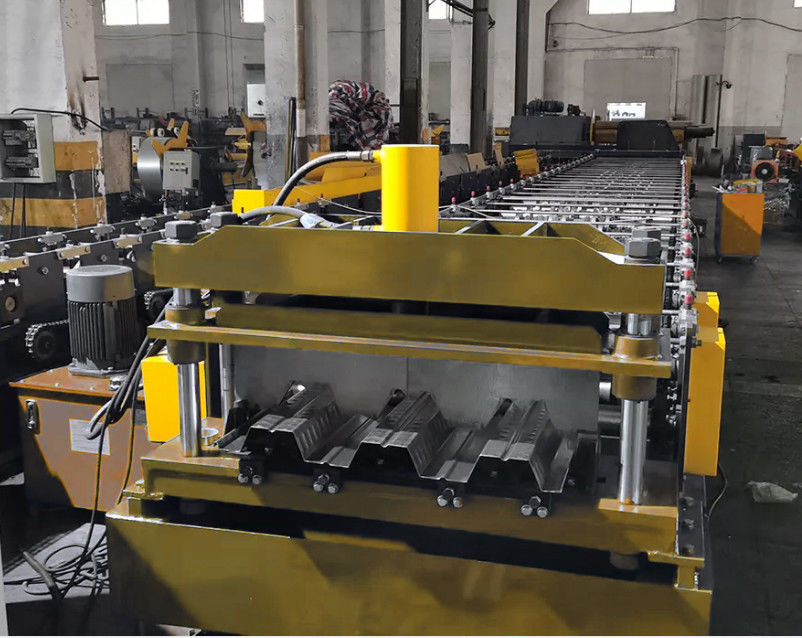

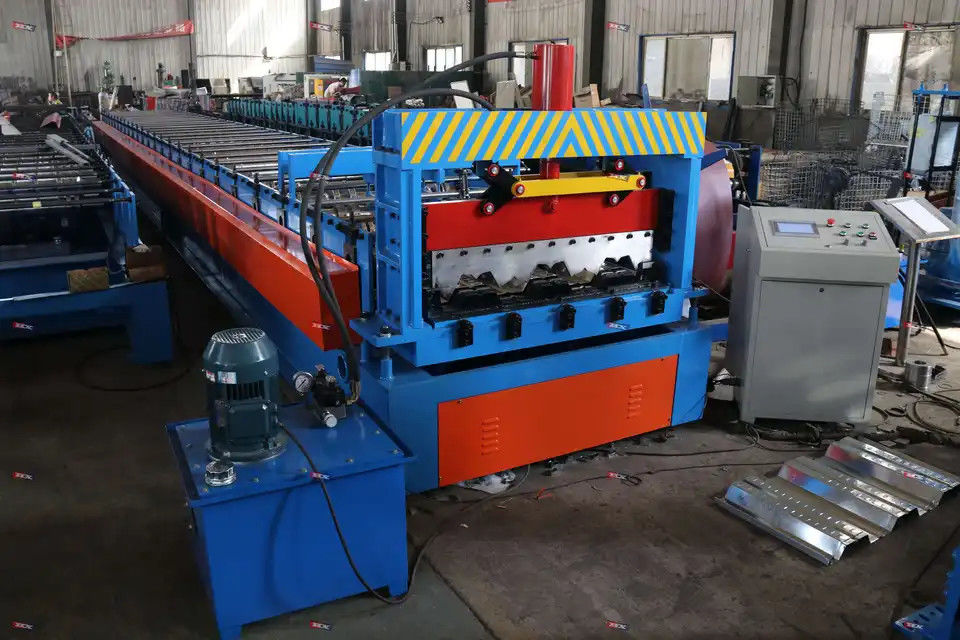

Metal Decking Floor Deck Roll Forming Machine Low Noise Level

Metal Decking Floor Deck Roll Forming Machine Low Noise Level
Metal Decking Floor Deck Roll Forming Machine Low Noise Level Metal Decking Floor Deck Roll Forming Machine Low Noise Level

Large Image :  Metal Decking Floor Deck Roll Forming Machine Low Noise Level

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Floor Deck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 45 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Decking Floor Deck Roll Forming Machine Stable Performance Dimension(L*W*H): 12.5*1.8*2.0
Effective Width: 1000mm Control Type: PLC System
Voltage: 380V 50HZ 3Phase Productivity: 10-15m/min
Rolling Thinckness: 0.5-1.2mm Weight: 10500kg
Main Structure Of The Machine: 450 H Beam Key Selling Points: Low Noise Level
High Light:

floor deck forming machine 15m/min

,

Low Noise metal deck forming machine

,

floor deck forming machine 10m/min

Metal Decking Floor Deck Roll Forming Machine Stable Performance



Metal Decking Floor Deck Roll Forming Machine Stable Performance

  metal decking floor deck roll forming machine is mainly used to produce press-formed steel plate to support floor concrete,the floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.


Working Flow:

Decoiler-------Feeding-------Roll forming-------Cutting------Finished product



Specification



Metal Decking Floor Deck Roll Forming Machine Stable Performance



Dimensions
12.5*1.8*2.0m
Weight
About 10500kgs
Roller
26 Rows
Material of the Cutting Blade
Cr12, Quenched treatment 58℃-60℃
Rolling Materials
45# forging steel with chromium plate
Diameter of the Roller
Φ90mm
Main Structure of the Machine
450H beams
Side Panel of Machine
20mm
Chain
1 Inch
Motor Power
15Kw*2
Pump Station Motor
4Kw Lichao Brand
Productivity
10-15m/min
Thickness of the Plate
0.5-1.2mm
Length Tolerance
±2mm
Touch Screen
Delta
Voltage
380V 50Hz 3 phases or as customer's need
Drive Mode
Motor driver
Suitable to Process
GI/GL/PPGI/PPGL/Aluminum coils


Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
