| Product Name: | High Quality Automatic Floor Deck Roll Forming Machine Price | Dimension(L*W*H): | 15.5*2*1.5 M |
|---|---|---|---|
| Shaft Material: | Cr12 | Control Type: | PLC System |
| Frame: | Welded With 400 Steel | Weight: | 7500 Kg |
| Voltage: | 380V 50Hz 3phases | Forming Speed: | 9m / Min |
| Feeding Width: | 1220mm | Forming Machine Motor Power: | 11.5KW * 2 |
| High Light: | 9m/min Cold Roll Forming Machine,Deck Cold Roll Forming Machine,PLC Control Cold Roll Forming Machine |
||

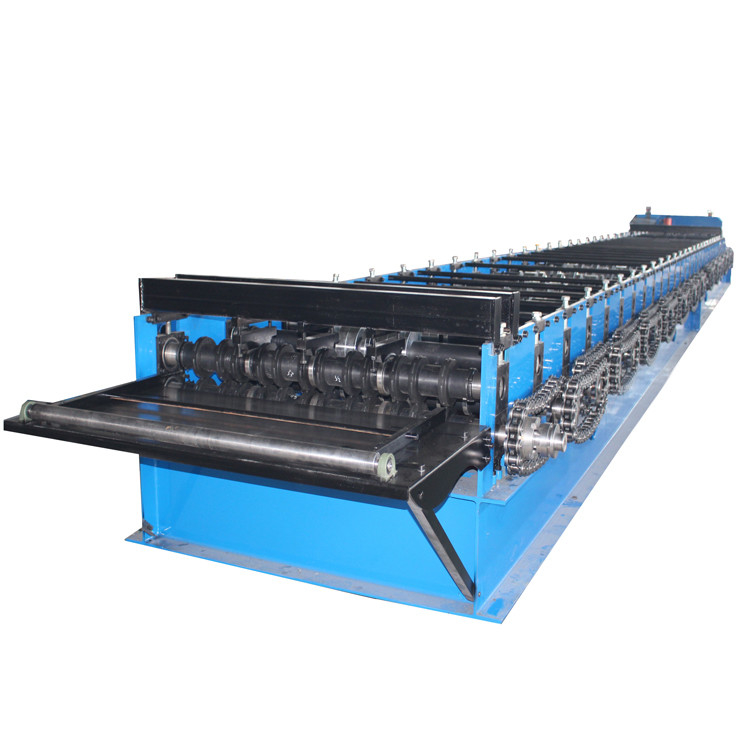

Metal Floor Deck Cold Roll Forming Machine For Sale Panel Roll Forming Machine
High Quality Automatic Floor Deck Roll Forming Machine Price
High Quality Automatic Floor Deck Roll Forming Machine Price.We can provide floor deck roll forming machine for building a big construction, we provide accuracy rollers to satisfy reinforced rib of floor deck, satisfy the customer’s requirement of hardness of floor deck, solve the problem of loading capacity of each floor.We equip 400 I Beam as the main structure of machine base, large loading capacity and stable structure, solve the problem of producing if workshop place isn’t flat.
Specification
| Item | Name | Description |
| 1 | Decoiler | Capacity:5 tons |
| 2 | Material | Steel Coil |
| 3 | Thickness | 0.6-1.2mm |
| 4 | Transmission | Chain/Gear/Gearbox |
| 5 | Speed | 8-15m/min |
| 6 | Roller | Steel with quenched treatment,chromed on the surface |
| 7 | Shaft | steel with tempering treatment |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Cutting material | Cr12 with quenched treatment Hardness58°-62° |
| 10 | Welding | Automatic spot welding |
| 11 | Control system | PLC |
| 12 | Electric brand | Delta,Siemens,Schneider |
| 13 | Voltage | 380V,50HZ,3PH(or as customers' request) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
ice:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
