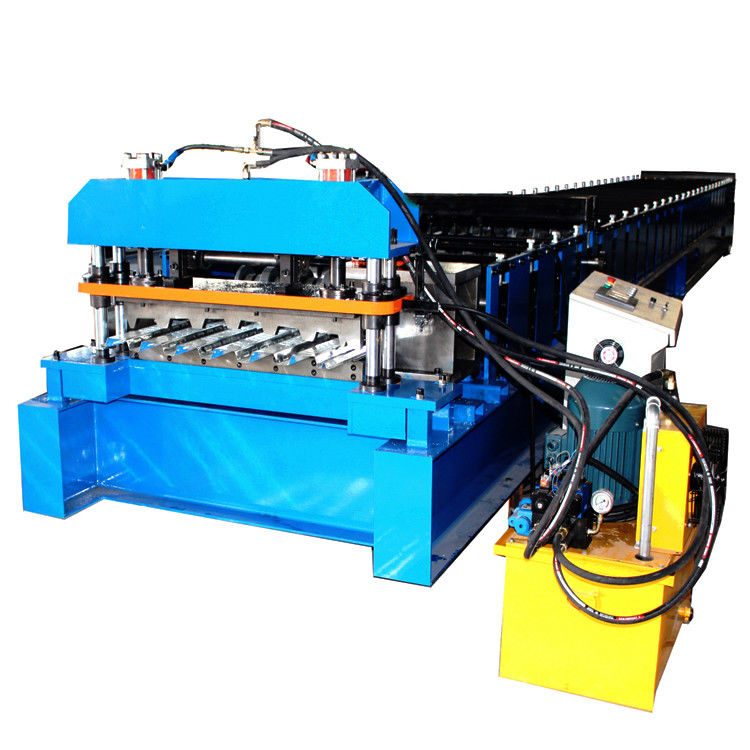

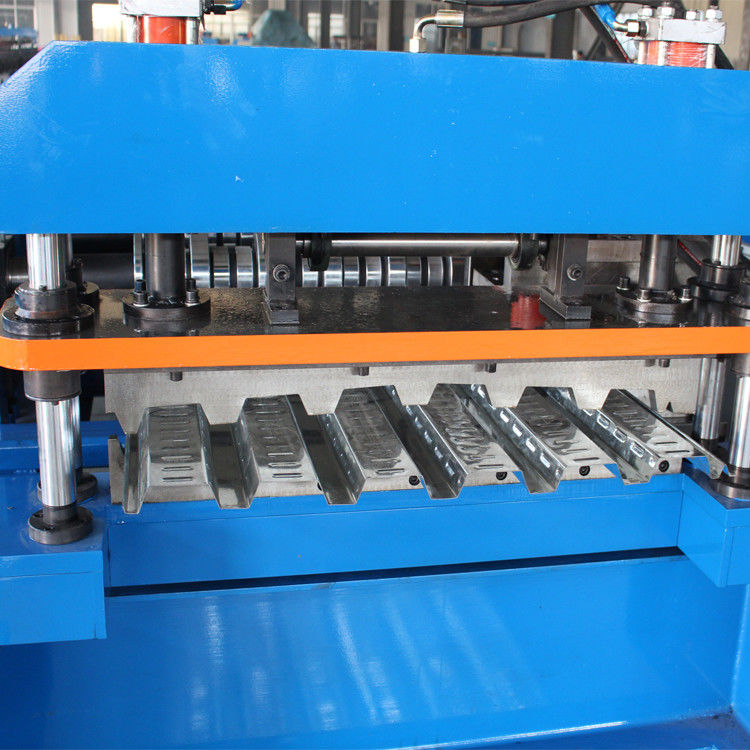

PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min

PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min

20m/min floor tile making machine

steel plate floor tile making machine

15m/min floor tile making machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Floor Deck

Contact Us
Request A Quote
PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min
PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min
Product Details
Product Name:
High Quality Steel Plate Deck Floor Tile Making Machine For European Market
Dimension(L*W*H):
12*1.8*1.7m
Material:
Galvanized Coil
Control Type:
PLC System
Main Structure Of The Machine:
450 H Beam
Weight:
About 13000kg
Voltage:
380V 50HZ 3Phase
Production Capacity:
15-20 M/min
Rolling Thinckness:
0.3-0.8mm
Cutting Syste:
Hydraulic Cutting System
Highlight:

20m/min floor tile making machine

,

steel plate floor tile making machine

,

15m/min floor tile making machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Cellular Composite Roofing Sheet Making Machine 3.0 Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Get Best Price
Good price 13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile online Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Get Best Price
Good price Decking Flooring Board 1.2mm Floor Tile Making Machine online Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Get Best Price
Good price 45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance online Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

High Quality Steel Plate Deck Floor Tile Making Machine For European Market



1.High Quality Steel Plate Deck Floor Tile Making Machine For European Market


---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.


2. High Quality Steel Plate Deck Floor Tile Making Machine For European Market parameters:



Specification


Suitable Material Material GI, PPGI, PPGL
Width 1200 mm
Thickness 0.8-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 24 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 90mm
Material of cutting blade Cr12 Heat Treatment
Speed 15-20 m/min
Side plate thickness 20 mm
Chain size 2 inch
Total power 22 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 12000mm*1800mm*1700mm
Weight(About) 13 tons
Length measurement Encoder
Control mode Delta PLC
Operating mode Button +Delta Touch screen


Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
