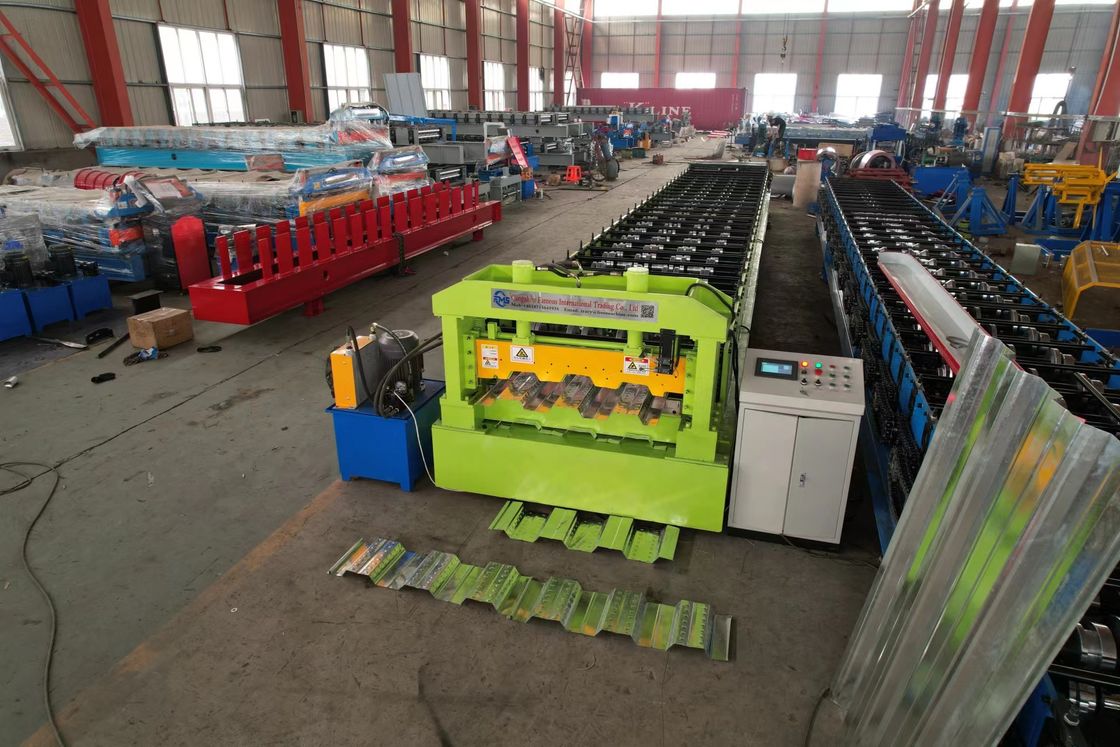

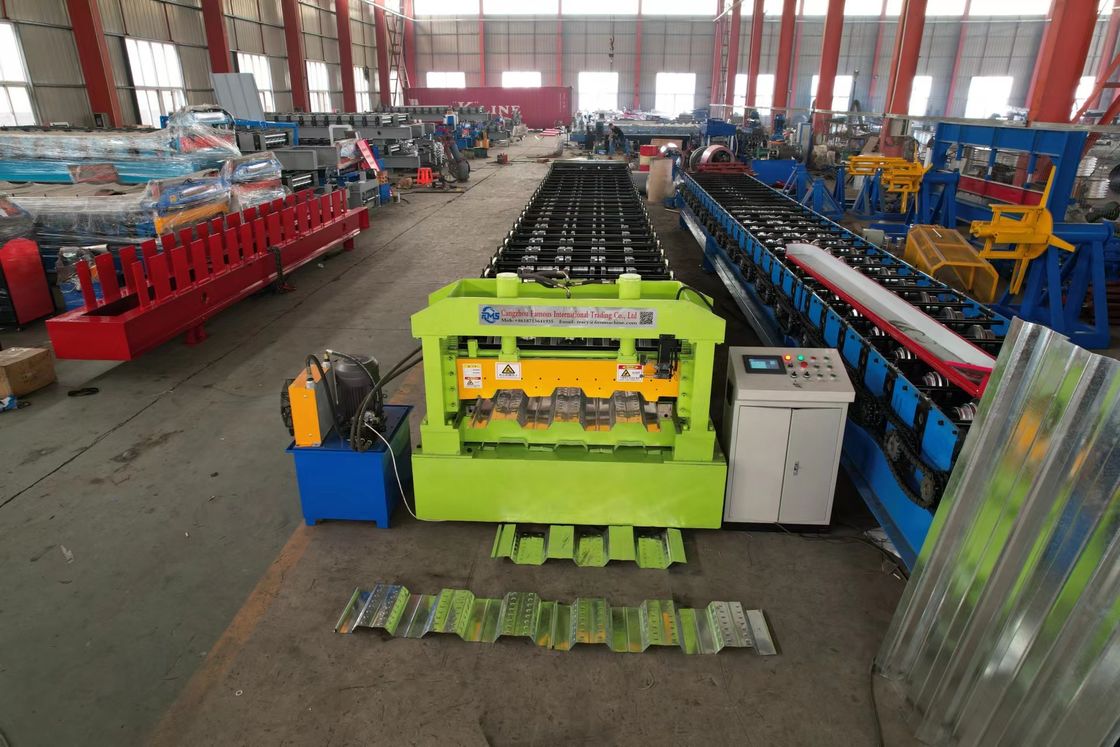

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min
Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min

Large Image :  Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: FloorDeck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min Dimension(L*W*H): 12*1.8*2.0
Cutting Blade Material: Cr12 Quenched Control Type: PLC System
Shaft Material: High Grade No.45 Forged Weight: 11500 Kg
Voltage: 380V 50Hz 3phases Production Capacity: 15-20 M/min
High Light:

Metal Deck Forming Machine 20m/Min

,

PLC Metal Deck Roll Forming Machine

,

20m/Min metal deck forming machine

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min

 Products are widely used in power plants, power equipment companies, automotive exhibition halls, steel structure plants, cement tanks, steel structure offices, airport terminals, railway stations, stadiums, concert halls, large -scale supermarkets, logistics centers, Olympic venues sports sports Steel structure buildings such as venues



Specification

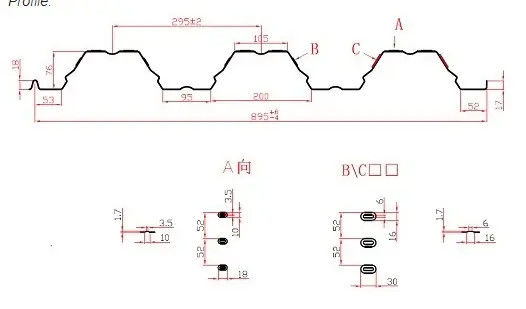

Customized Metal Deck Roll Forming Machine With 15 - 20m/Min
Dimensions
12.5*1.8*2.0m
Weight
About 10500kgs
Roller
26 Rows
Material of the Cutting Blade
Cr12, Quenched treatment 58℃-60℃
Rolling Materials
45# forging steel with chromium plate
Diameter of the Roller
Φ90mm
Main Structure of the Machine
450H beams
Side Panel of Machine
20mm
Chain
1 Inch
Motor Power
15Kw*2
Pump Station Motor
4Kw Lichao Brand
Productivity
10-15m/min
Thickness of the Plate
0.5-1.2mm
Length Tolerance
±2mm
Touch Screen
Delta
Voltage
380V 50Hz 3 phases or as customer's need
Drive Mode
Motor driver
Suitable to Process
GI/GL/PPGI/PPGL/Aluminum coils

Application



  To meet the requirements of the rapid construction of the main steel structure, it can provide a firm operating platform in a short period of time, and can use multiple floors to lay pressure steel plates, and layered pouring concrete plate flowing water construction construction



Advantage



1: To meet the requirements of the rapid construction of the main steel structure, it can provide a firm operating platform in a short period of time.      It can also use multiple floors to lay pressure steel plates and layered flowing water on the stratified concrete plate.
2: During the use stage, the tillers of the concrete floor are also increased the rigidity of the floor, which saves the amount of steel and concrete.
3: The surface pressure of the pressure plate makes the maximum binding force between the panel and the concrete, so that the two form the overall, with the ribs, so that the building's board system has a high -strength bearing capacity.
4: Under the cantilever conditions, the Loucheng board is only used as a permanent template. The length of the suspended length can be determined according to the section characteristics of the building. In order to prevent the cracking of the suspended board, it is necessary to match the negative tendon according to the design of the structural engineer at the branch.



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
