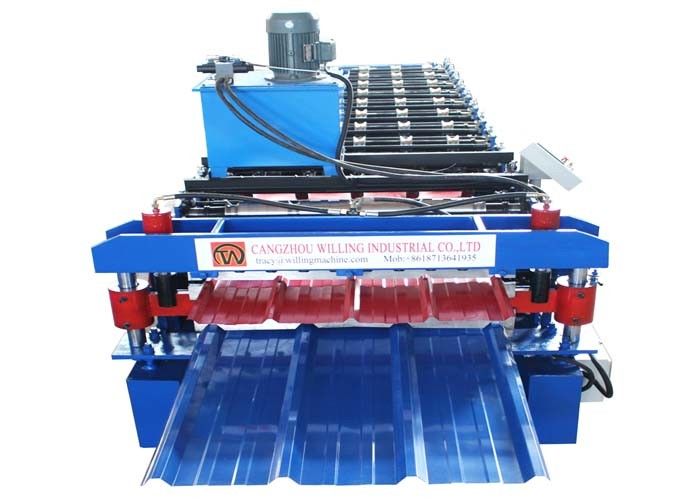

Aluminum Roof Sheet Double Layer Roof Panel Roll Forming Machine PLC Control

Aluminum Roof Sheet Double Layer Roof Panel Roll Forming Machine PLC Control
Aluminum Roof Sheet Double Layer Roof Panel Roll Forming Machine PLC Control

Large Image :  Aluminum Roof Sheet Double Layer Roof Panel Roll Forming Machine PLC Control

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Double Layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 11000usd/sets
Packaging Details: 20' FLC
Delivery Time: 20 Working Days
Payment Terms: L/C, T/T, D/A,
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine Dimension(L*W*H): 6.5m*1.6m*1.4m
Raw Material: Galvalume, Galvanized Production Capacity: 0-15m/min
Material Of Roller: 45# Cr Plated Pow Supply: 380V 50Hz 3phases(customizable)
Machine Cutter Material: CR12 Feeding Width: 1000mm
Control System: PLC Control Color: Blue
High Light:

Double Layer Forming Machine PLC Control

,

Aluminum Double Layer Roll Forming Machine

,

PLC Roof Panel Roll Forming Machine

 Aluminum Roof Sheet Double Layer Roll Forming Machine Roof Panel Roll Forming Machine

Double Layer IBR Type Roof Cold Roll Forming Machine

The picture shows the whole process of cold roll forming machine : MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

Main equipment

Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.



1. This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface
2. Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Set length and quantity on the control panel,machine will auto working
5. Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.


Specification

Dimensions
5600mm*1300mm*1500mm
Weight
6300 kg
Main frame material
300H Steel
Thickness of plate in equipment
14mm
Roll forming row number
high layer:9 row (900), under layer: 11 row (840)
Forming shaft material
45# steel quenching treatment
Molding shaft dimension
Diameter of 70
Roll shape material
45# steel with hard chrome plating
Kind of drive
Chain wheel chain drive/hydraulic motor drive
Shaft Dia
inch 0.6
Power
6kw
Main motor power
4kw
Forming speed
8-10 m/min/hydraulic transmission 15 m/min
Material thickness
0.3-0.8mm



Manual inner tight decoiler

   A. Coil inner diameter: 450mm to 550mm

   B. Max width of coiling: 1200mm

   C. Max weight of loading: 6000kgs

Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability. This machine can be customized. Just send us your smaple, we will design and produce the machine for you.

Payment terms

  40% in advance as down payment
  60% is paid before the shipment is processed


                We want to know following information.

                 1), What is the exact profile you want to produce?

                 2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?

                3), What kind of decoiler and stacker you need?

              Pls contact us as below informaiton,hope can cooperate,thanks advance



Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.
