Product Details:
Payment & Shipping Terms:
|
| Product Name: | Trapezoidal Profile Galvanized Steel Floor Deck Roll Forming Machine | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 7000*1700*1600Mm | Warranty: | 1 Year |
| Power(w): | 4kw | Control System: | PLC |
| High Light: | Trapezoidal Profile Deck Roll Forming Machine,Galvanized Steel Deck Roll Forming Machine,Trapezoidal Deck Roll Forming Machine |
||

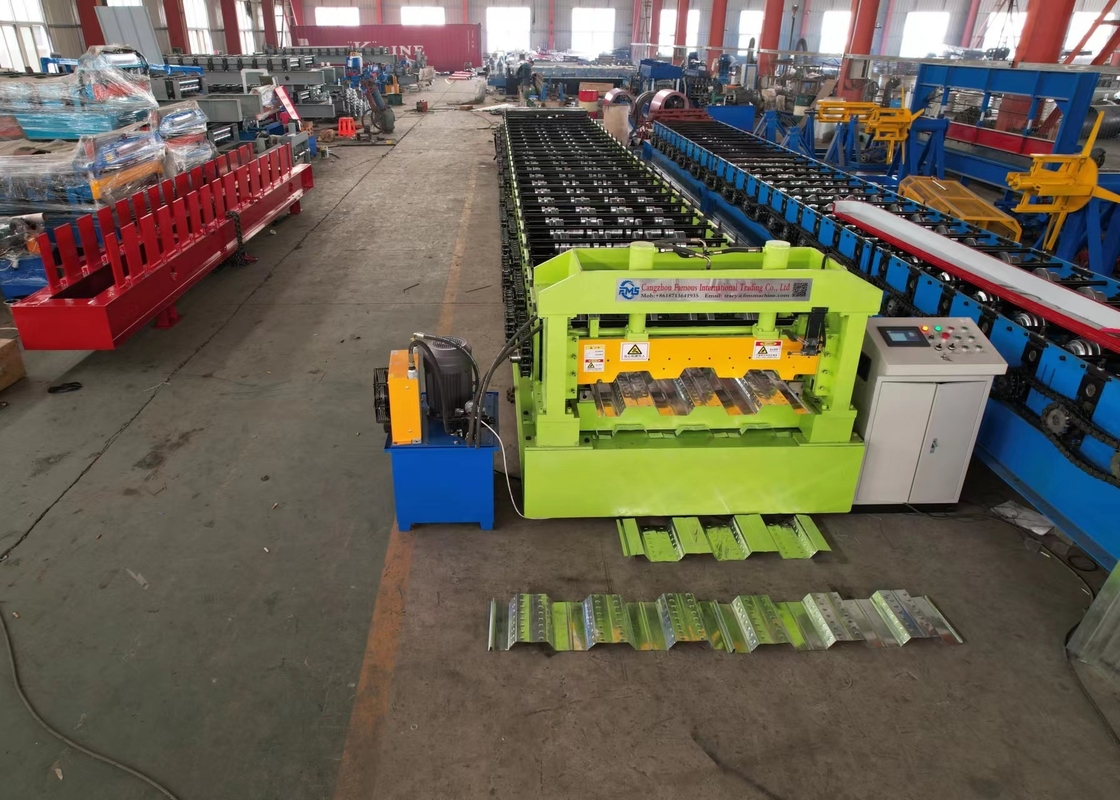

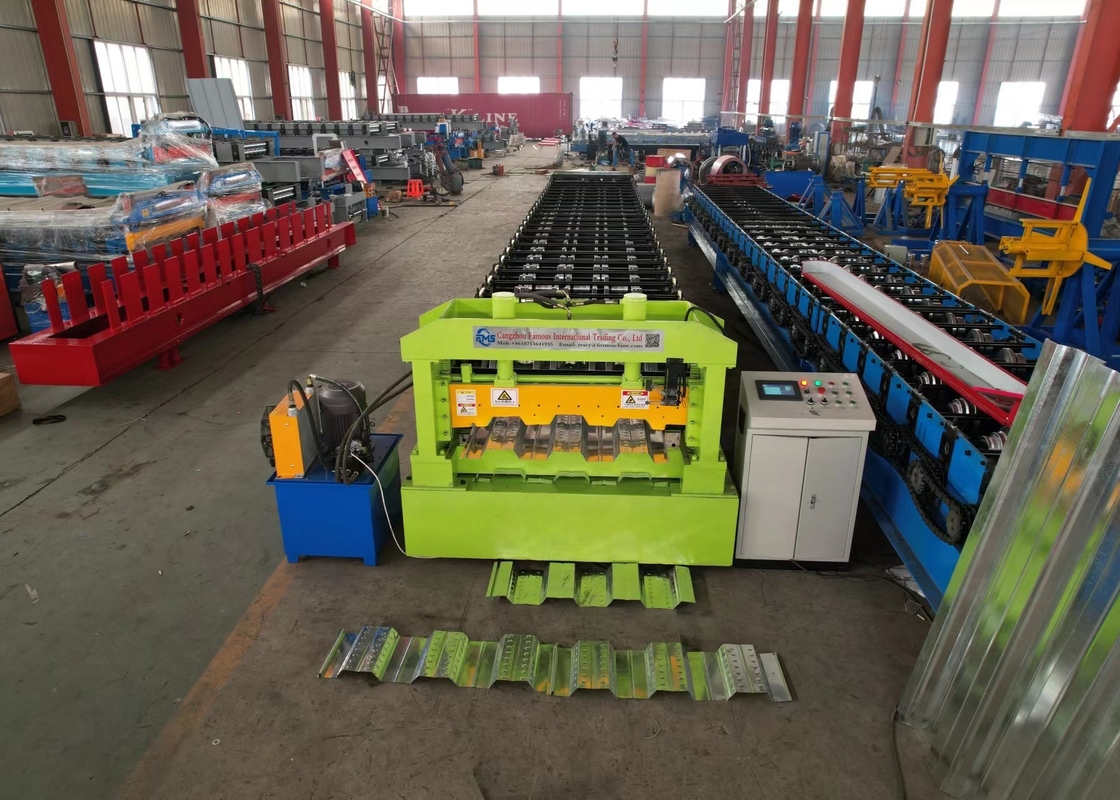

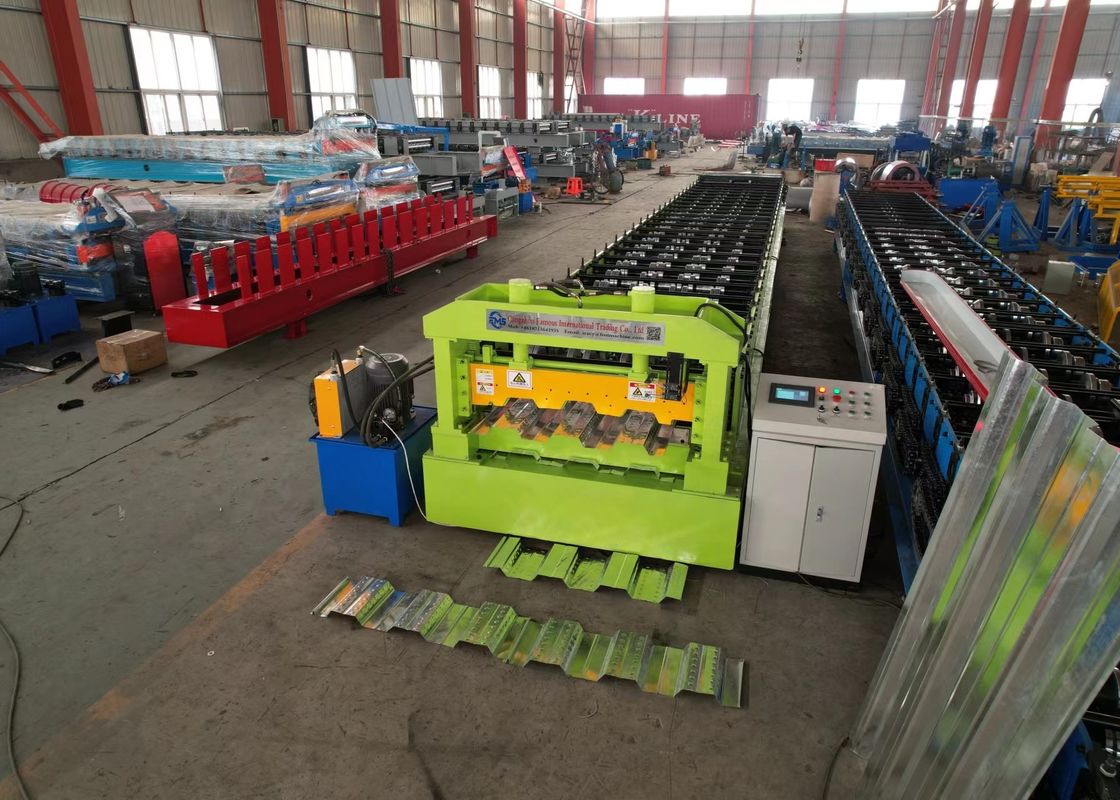

Trapezoidal Profile Galvanized Steel Floor Deck Roll Forming Machine
Floor deck sheet is a steel plate that supports the flooring of the flooring of the floor by suppressing the steel structure houses, railway stations, stadiums, and theaters. It can meet the needs of the rapid construction of steel structure, can supply a stable operating platform in a short period of time, and can use multiple floors to lay steel plates and layer off -layer projects for the floor of the floor.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-1.5mm |
| 3 | Working Speed | 4-5 m/min ( not including the cutting time) |
| 4 | Roller Station | 16-18 Raws |
| 5 |
Dimension (L*W*H) |
8500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5000 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The floor deck which is produce by floor deck roll forming machine is suitable for various irregular floor structures and has a very prominent application field in different types of prefabricated panels, high-speed railway structures, and buildings. There are many advantages to using floor decks, which can help users save installation costs and reduce the difficulty of disassembly. At the same time, it can also save decoration time.
Advantage
The material selection of the floor forming machine is economical, and the comprehensive cost advantage is particularly obvious. That is to say, this product is very effective, and its product can improve the quality and efficiency of laying; This device is also suitable for laying on large boards and can be placed over a large range. Reduce construction costs and help users save on decoration costs; After using the equipment, it can also reduce the construction period and reduce the cost of on-site installation.
The floor deck is convenient for transportation, installation, and erection, which can help with the workload of on-site steel reinforcement work and reduce the workload of on-site disassembly. At the same time, the power distribution of the board of directors is more reasonable, making it easy to ensure construction quality.
