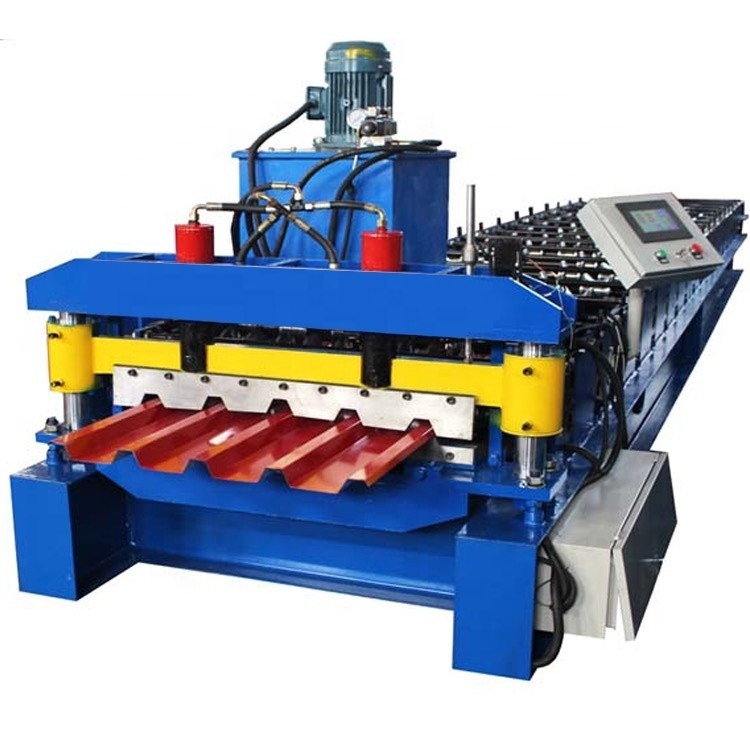

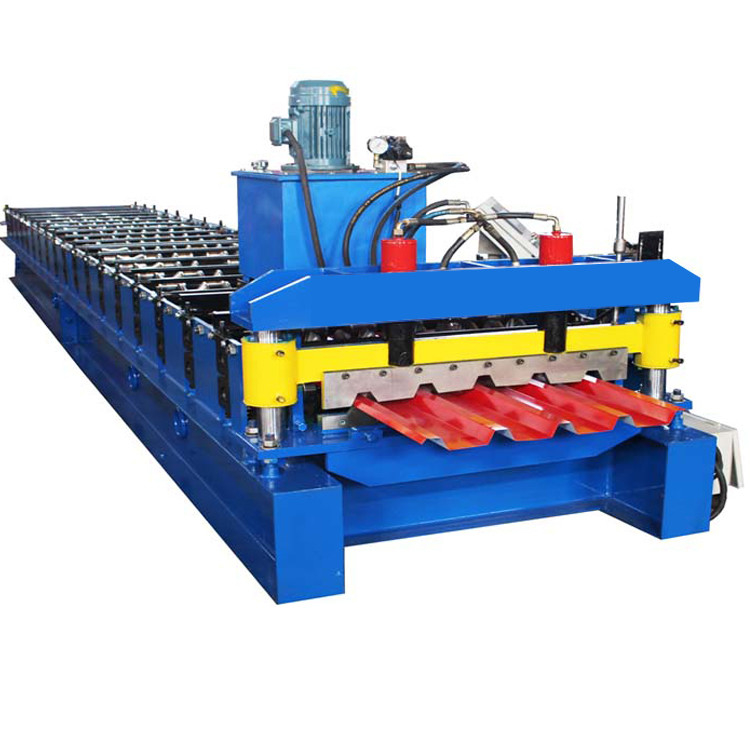

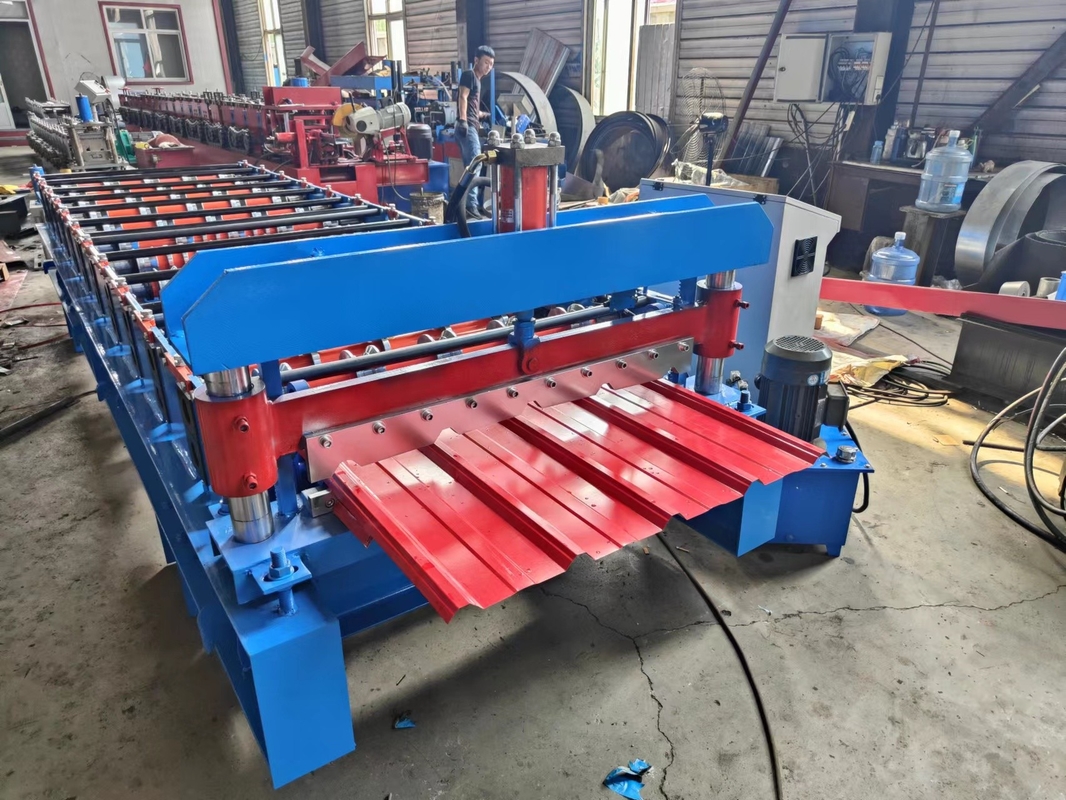

IBR Roofing Tile Roll Forming Machine Fit Width 1000mm GI PPGI Pre Painted Steel Coil

Large Image : IBR Roofing Tile Roll Forming Machine Fit Width 1000mm GI PPGI Pre Painted Steel Coil

Product Details:

Place of Origin:	CHINA
Brand Name:	Famouse
Model Number:	IBR 840

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	7500$USD-10000$
Packaging Details:	NAKED with plastic film
Delivery Time:	30 Work days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Tile Type:

Colored Glaze Steel,Steel,roll Forming Machine/building Material Machinery,Colored

Voltage:

380V 50Hz 3phases

Material:

GI,PPGI,STEEL COIL

High Light:

IBR Roofing Tile Roll Forming Machine

Width 1000mm Tile Roll Forming Machine

IBR Roofing Tile Roll Forming Machine,Fit Width 1000mm GI,PPGIpre-Painted Steel Coil, Galvanized Steel Coil, Galvalume

(1). Roller material: 45# steel with CNC machining and surface is being hard chrome;

(2). Diameter of shaft: ￠70mm solid forged 45 #steel, quenching process;

(3). Material of shaft: solid 45# steel with grinding process;

(4). Frame of the machine: welded with 350H section steel;

(5). Wall panel thickness: 16mm;

(6). Forming motor power: 3KW;

(7). Hydraulic station motor power: 3KW;

(8). Control system: PLC brand is DELTA from Taiwan;

(9). Material of cutting blade: Cr12MoV with hard treatment, HRC52-68;

(11). Driving mode: single chain 1 inch;

(11). Forming speed: 0-15m/min; IBR Roofing Tile Roll Forming Machine Fit Width 1000mm GI PPGI Pre Painted Steel Coil 0
