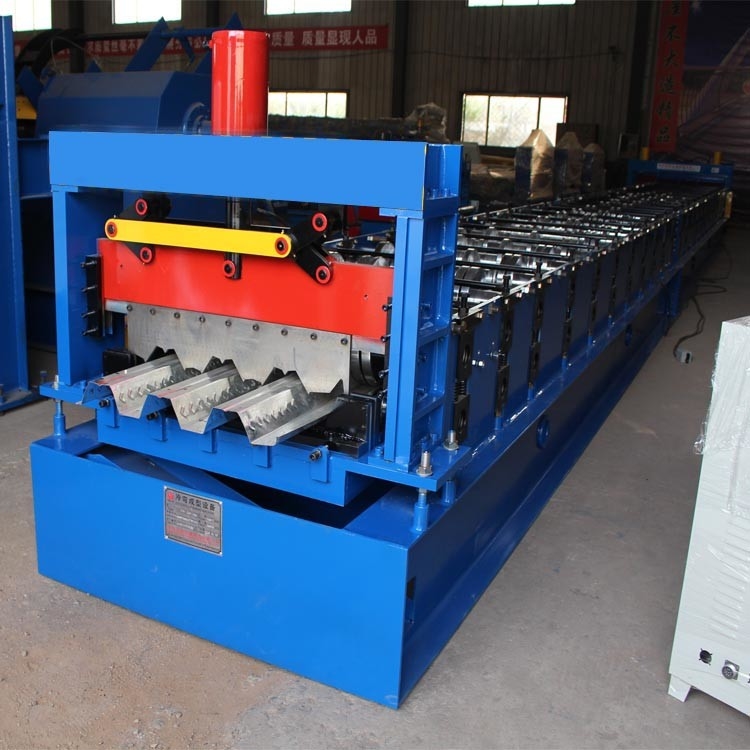

Name: Automatic PLC System Floor Deck Roll Forming Machine 8m / Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Floor Deck
Price: 26,500.00 USD
Availability: InStock

Home > products > Floor Deck Roll Forming Machine >

Automatic PLC System Floor Deck Roll Forming Machine 8m / Min

8m / min Deck Roll Forming Machine

8m/min Floor Deck Roll Forming Machine

PLC System Deck Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Floor Deck

Request A Quote

Product Details

Product Name:

High Quality Automatic Floor Deck Roll Forming Machine Price

Dimension(L*W*H):

15*2*1.5 M

Shaft Material:

Cr12

Control Type:

PLC System

Frame:

Welded With 400 Steel

Weight:

7000 Kg

Voltage:

380V 50Hz 3phases

Forming Speed:

8m / Min

Feeding Width:

1220mm

Forming Machine Motor Power:

11KW * 2

Highlight:

8m / min Deck Roll Forming Machine

8m/min Floor Deck Roll Forming Machine

PLC System Deck Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Get Best Price

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Get Best Price

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Get Best Price

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Get Best Price

86-317-2016816

Contact Now

Product Description

High Quality Automatic Floor Deck Roll Forming Machine Price

High Quality Automatic Floor Deck Roll Forming Machine Price.We can provide floor deck roll forming machine for building a big construction, we provide accuracy rollers to satisfy reinforced rib of floor deck, satisfy the customer’s requirement of hardness of floor deck, solve the problem of loading capacity of each floor.We equip 400 I Beam as the main structure of machine base, large loading capacity and stable structure, solve the problem of producing if workshop place isn’t flat.

Specification

Item	Name	Description
1	Decoiler	Capacity:5 tons
2	Material	Steel Coil
3	Thickness	0.5-1.2mm
4	Transmission	Chain/Gear/Gearbox
5	Speed	10-15m/min
6	Roller	Steel with quenched treatment,chromed on the surface
7	Shaft	steel with tempering treatment
8	Cutting type	Hydraulic cutting
9	Cutting material	Cr12 with quenched treatment Hardness58°-62°
10	Welding	Automatic spot welding
11	Control system	PLC
12	Electric brand	Delta,Siemens,Schneider
13	Voltage	380V,50HZ,3PH(or as customers' request)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
