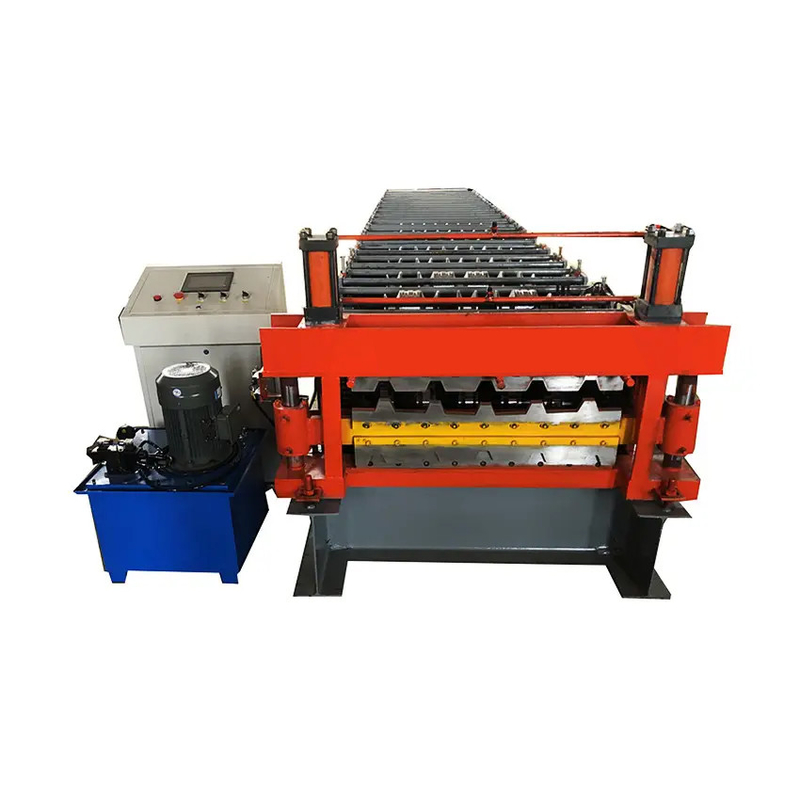

Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making

Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making

PLC Control Roof Roll Forming Machine

Double Layer Roof Roll Forming Machine

12m/min Roof Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

Double Layer

Contact Us
Request A Quote
Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making
Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making
Product Details
Product Description:
Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine
Production Capacity:
8-12 M/min
Dimension(L*W*H):
6500*1500*1300mm
Roller Material:
High-grade 45# Stee
Control System:
PLC
Rolling Thinckness:
0.8-1.2mm
Voltage:
380V 50Hz 3phases
Feeding Width:
1000mm
Cutting Blade Material:
Cr 12 High Grade Steel
Main Frame:
350H Steel
Weight:
3500 Kg
Highlight:

PLC Control Roof Roll Forming Machine

,

Double Layer Roof Roll Forming Machine

,

12m/min Roof Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
35 sets per month
RELATED PRODUCTS
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price 2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 online Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

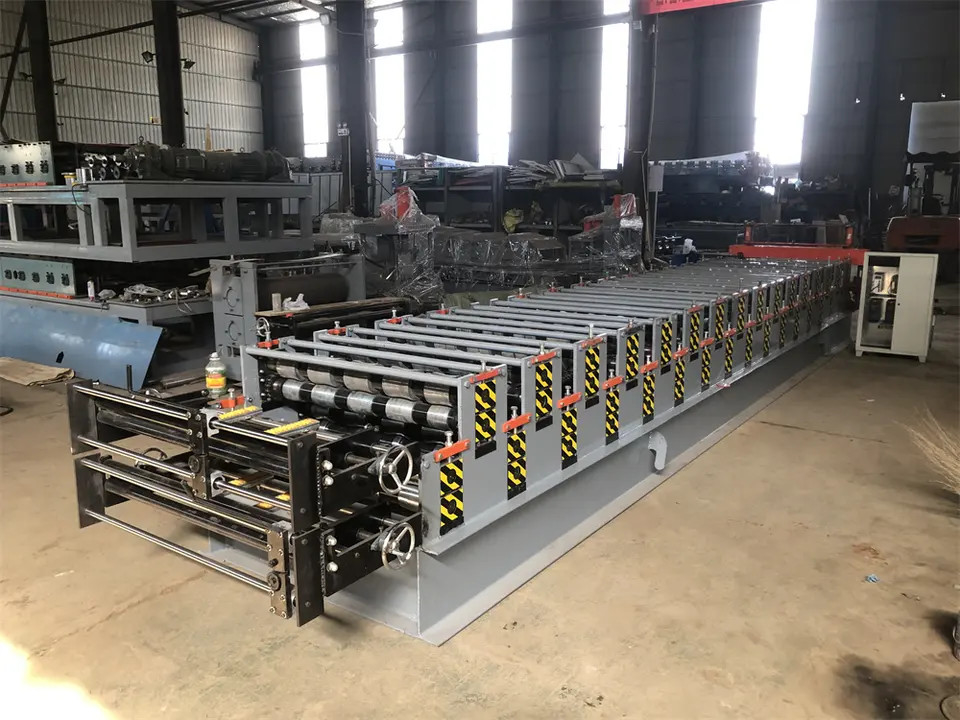

Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine


   Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.


  We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.

Detailed Parameters:


No.
1 Suitable material color steel sheet, galvanized steel sheet, aluminium sheet
2 Material width 1000mm or as your required
3 Material thickness 0.3-0.8 or as your required
4 Working speed 8-12m/min, can be 20-25m/min
5 Main motor power 5.5kw with cycloidal with reducer
6 Hydraulic pump power 4kw
7 Electrical control system PLC control system with inverter
8 Shaft diameter 75mm
9 Roller station 15 rows, depend on your panel profile drawing
10 Roller high grade 45# steel, hard chrome plating
11 Working time 24 hours
13 Cutting head material Cr 12 mould steel with quenched treatment
14 Voltage 380V 3Phase 50Hz or as your required
15 Weight 3.5T
16 The machine size 6500*1500*1300mm



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making 0
