Product Details:
Payment & Shipping Terms:
|
| Product Description: | Double Deck Roofing Panel Roll Forming Machine Color Steel Tile Making Machine | Production Capacity: | 8-12 M/min |
|---|---|---|---|
| Dimension(L*W*H): | Around 18m*2.2m*1.5m | Roller Material: | 45# Forged Steel |
| Control System: | PLC | Rolling Thinckness: | 0.3-0.8mm |
| Voltage: | 380V 50Hz 3phases | Feeding Width: | 900-1250mm |
| Cutting Blade Material: | Cr 12 High Grade Steel | Main Frame: | 350H Steel |
| Weight: | 3500 Kg | ||
| High Light: | PLC Control Tile Making Machine,Color Steel Tile Making Machine,12m/min Tile Making Machine |
||

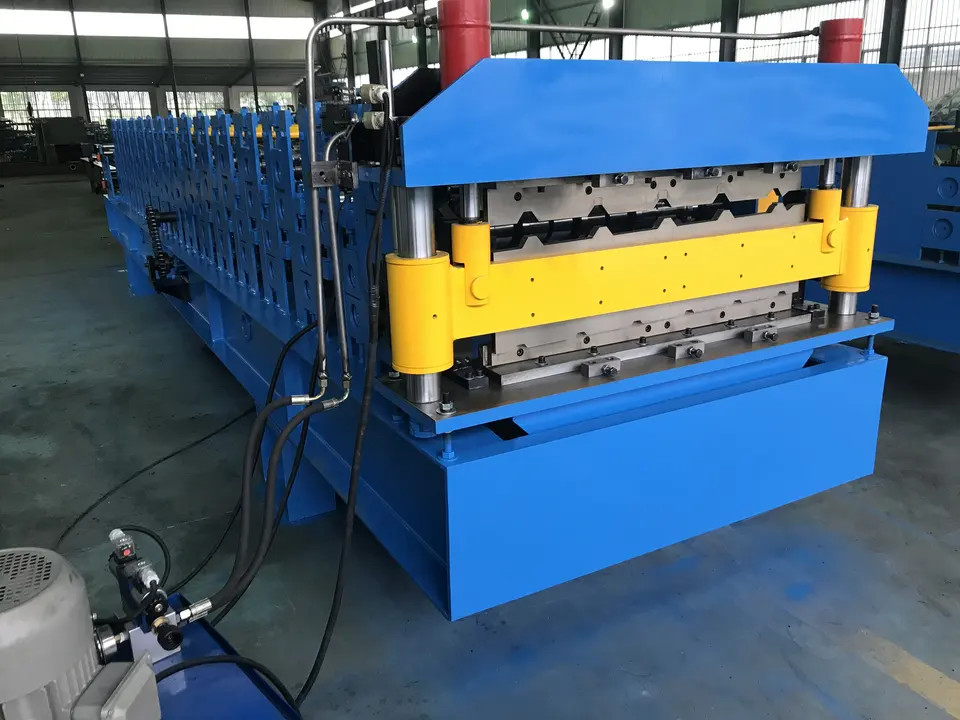

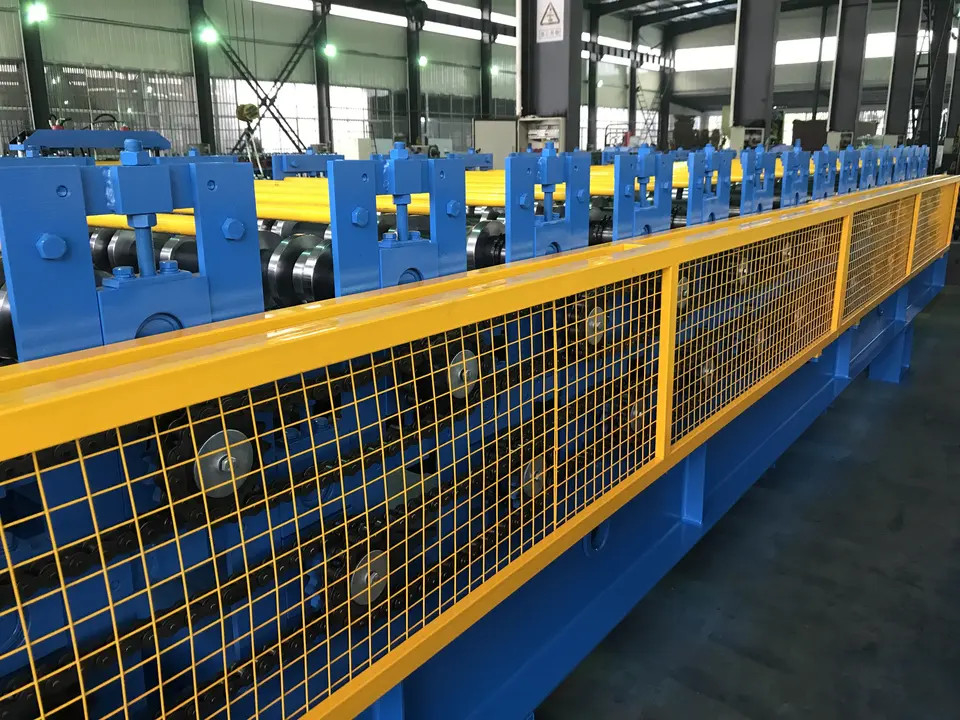

Double Deck Roofing Panel Roll Forming Machine Color Steel Tile Making Machine
Double Deck Roofing Panel Roll Forming Machine Color Steel Tile Making Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.
Detailed Parameters:
|
Item NO.
|
Item Name
|
Description
|
|
|
Raw material
|
Galvanized steel or PPGI
|
|
1
|
Material thickness
|
0.3-0.7mm
|
|
2
|
Forming speed
|
0-15m/min
|
|
3
|
Roll station
|
upper 20stations, down 22 stations
|
|
4
|
Main power
|
11kw
|
|
5
|
Hydraulic power
|
7.5kw
|
|
6
|
Control system
|
PLC Panasonic
|
|
7
|
Drive
|
by chain
|
|
8
|
Voltage
|
380V/50HZ, 3P or Customized
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
