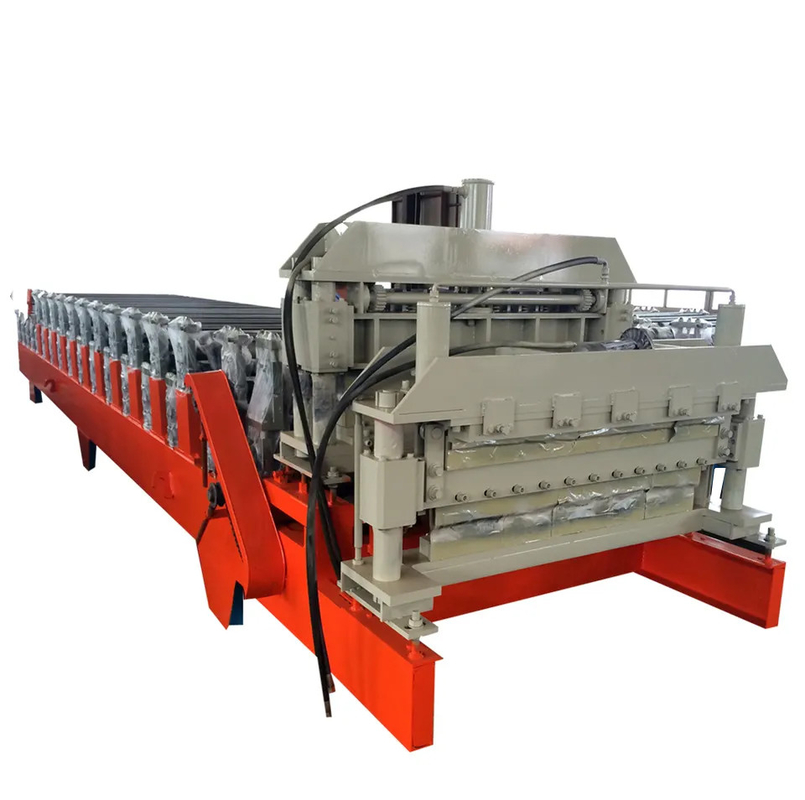

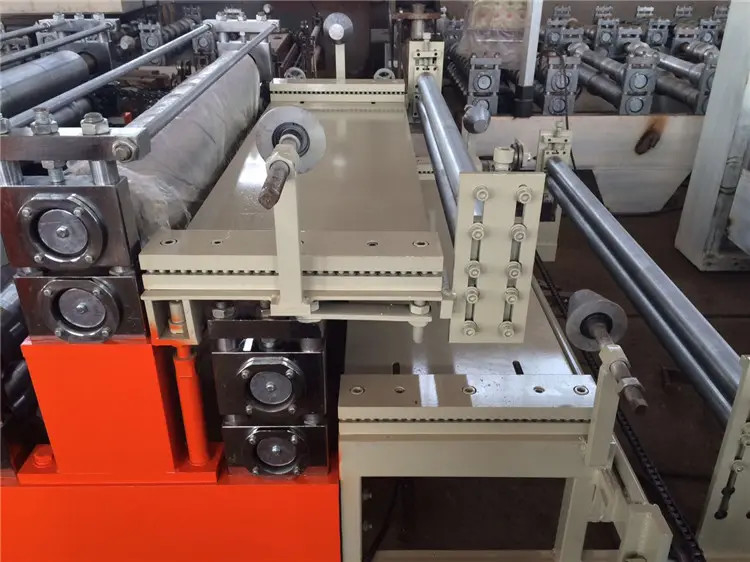

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

double layer forming machine 12m/min

double layer forming machine PLC

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

Double Layer

Contact Us
Request A Quote
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Product Details
Product Description:
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Production Capacity:
8-12 M/min
Dimension(L*W*H):
7.5*1.3*1.3 M
Roller Material:
45# Forged Steel
Control System:
PLC
Rolling Thinckness:
0.3-0.8mm
Voltage:
380V 50Hz 3phases
Feeding Width:
1250mm
Cutting Blade Material:
Cr 12 High Grade Steel
Main Frame:
350H Steel
Weight:
5000 Kg
Highlight:

double layer forming machine 12m/min

,

double layer forming machine PLC

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
35 sets per month
RELATED PRODUCTS
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price 2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 online Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production


   Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
  Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.


Detailed Parameters:

Part details Item Name Specification
Manual uncoiler carrying capacity 5-8 tons
Stype Manual
Raw coil Coil material steel
Coil thickness 0.3-0.8 mm
Machine body Roller station 15 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 6.5 tons
Machine size 5-7.5*1.3*1.3 m
Speed 8-12 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Taiwan delta
Motor power 7.5 kw
Hydraulic pump power 3 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English




Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
