Product Details:
Payment & Shipping Terms:
|
| Product Description: | Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations | Production Capacity: | 8-25m/min |
|---|---|---|---|
| Dimension(L*W*H): | 6500mm*1300mm*1200mm | Roller Material: | 45# Steel |
| Control System: | PLC | Rolling Thinckness: | 0.3-0.8mm |
| Voltage: | 380V 50HZ 3PH | Production Capatity: | 0-12m/min |
| Cutting Blade Material: | Cr 12 High Grade Steel | Main Frame: | 350H Steel |
| High Light: | Double Layer Roll Forming Machine 0.8mm,double layer forming machine 0.3mm,12m/min double layer forming machine |
||

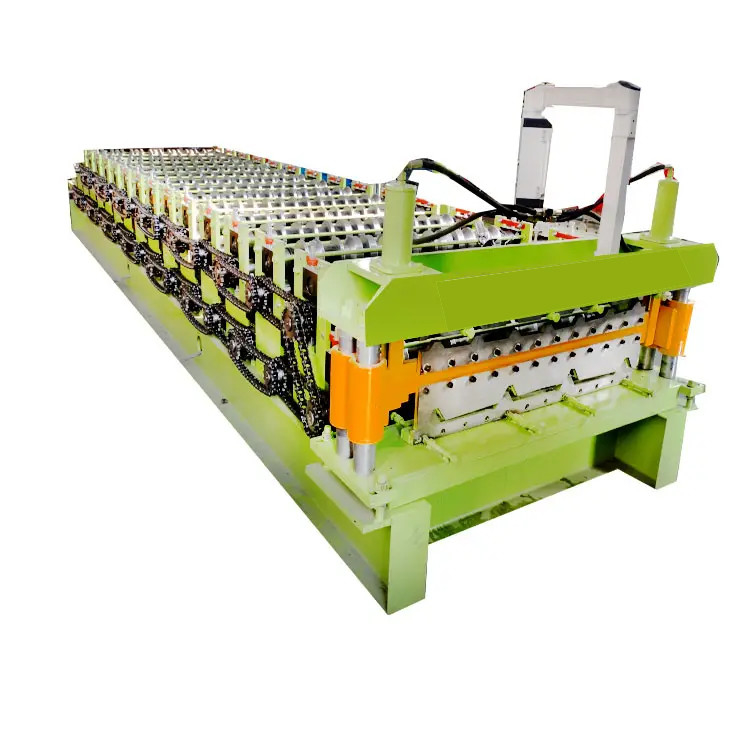

Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations
Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.
Detailed Parameters:
| The total length of the equipment | Length 6.5m, width 1.2m and height 1.2m |
| The motor power | Motor actuating motor pump station 4Kw working voltage 380V |
| Production speed | 8-25 m/min |
| The transmission way | 1 .2inch chain drive |
| rack | Large frame: 350H section steel |
| shaft | 11 row axis diameter phi 70 axis |
| The thickness of the plate | 14 mm |
| Set of | Galvanized pipe finishing, electrostatic spraying |
| Wheel material | 45# steel hard chrome plating |
| The molding part | Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast. |
| Numerical control system | Easy control king, letter letter press button screen, counter, |
| shear | Welded iron frame, hydraulic cylinder automatic shear |
| The thickness of the plate | 0.3- 0.8 mm |
| Feed width | 1000 mm |
| accessories | One feeding rack and two sets |
| Warranty period | 12 months |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
