Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Layer Trapezoidal Roof Tile Building Material Roll Forming Machine Manufacturer | Dimension(L*W*H): | 6.5*1.2*1.2M |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Working Speed: | 8-15 M/min |
| Rolling Thinckness: | 0.2-0.8mm | Shaft Material: | 45# Steel |
| Motor Power: | 7.5 Kw | Pow Supply: | 380V, 60Hz, 3Ph |
| Width Of Raw Material: | 1000mm | ||
| High Light: | Galvanized trapezoidal roll forming machine,trapezoidal roll forming machine 15m/min |
||

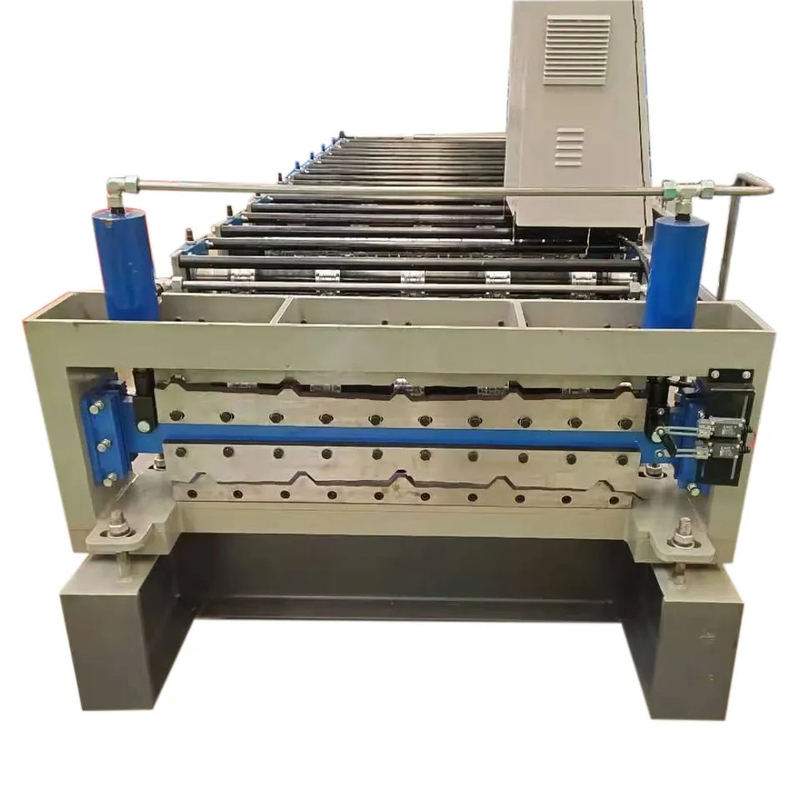

Double Layer Trapezoidal Roof Tile Building Material Roll Forming Machine Manufacturer
Specification
|
No
|
Item
|
Data
|
|
1
|
Coil Width
|
according to drawings
|
|
2
|
Diameter of shaft
|
70mm
|
|
3
|
Forming Speed
|
8-12m/min
|
|
4
|
Middle plate
|
16mm
|
|
5
|
Material of shaft
|
45#steel with tempering
|
|
6
|
forming thickness
|
0.2mm-0.6mm
|
|
7
|
material of rollers
|
45#steel
|
|
8
|
Cutting type
|
hydraulic -cutting
|
|
9
|
Main power
|
4kw+3kw
|
|
10
|
Main frame
|
300H steel
|
|
11
|
Control system
|
PLC
|
|
12
|
Brand of electrical parts
|
Delta
|
|
13
|
Manual decoiler
|
5 tons
|
|
14
|
Power
|
3 Phase,380 Voltage,50Hz
|
|
15
|
Dimensions(L*W*H)
|
About 6.5*1.2*1.2M
|
|
16
|
Weight
|
about 3 tons
|
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
