Highway Railing B Profile Roll Forming Machine Full Auto

Highway Railing Roll Forming Machine

20M/MIN guardrail roll forming machine

Highway Guard Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

Full Auto Highway Railing B Profile Roll Forming Machine Highway Guard Roll Forming Machine

Raw Material:

PPGI PPGL GI GL

Cutting Blade Material:

Cr 12 High Grade Steel

Working Speed:

20 - 40 M/min

Roller Material:

45#steel Chrome Plated

Motor Power:

4KW

Weight:

5000 Kg

Voltage:

380V/50HZ 3Phase(as Customer's Request)

Material Thickness:

0.4-0.8mm

Production Capacity:

20M/MIN

Highlight:

Highway Railing Roll Forming Machine

20M/MIN guardrail roll forming machine

Highway Guard Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Get Best Price

Video

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Get Best Price

Video

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Get Best Price

Video

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Get Best Price

86-317-2016816

Contact Now

Product Description

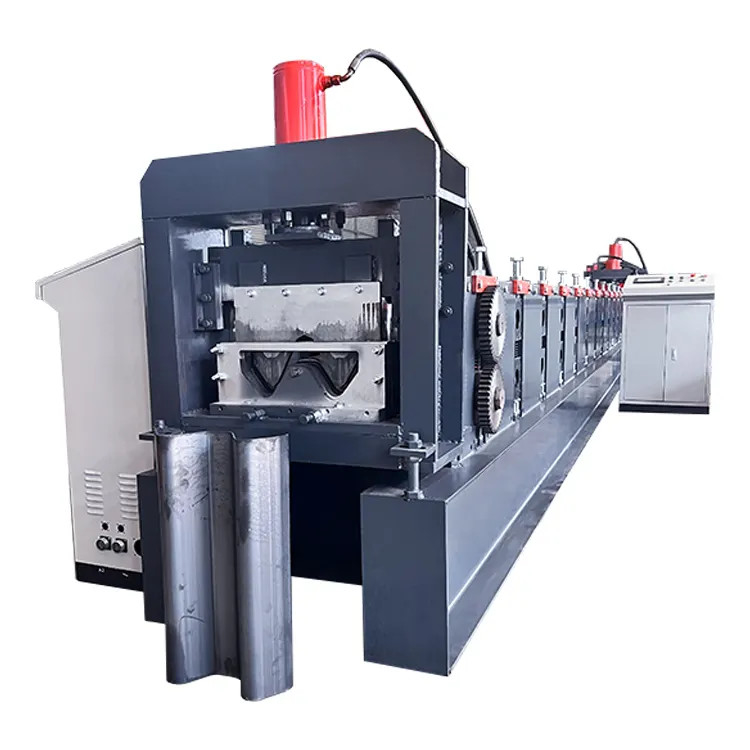

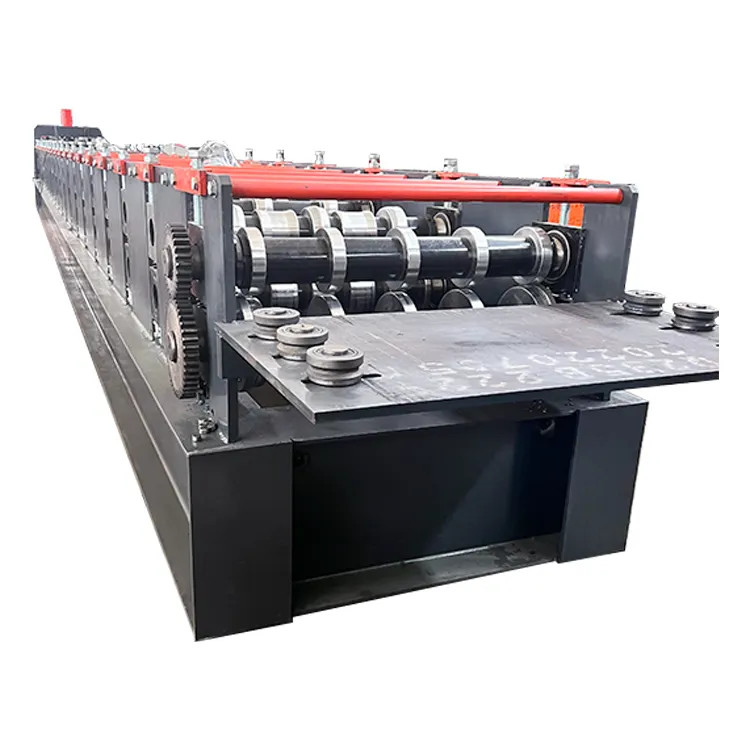

Full Auto Highway Railing B Profile Roll Forming Machine Highway Guard Roll Forming Machine

Full Auto Highway Railing B Profile Roll Forming Machine Highway Guard Roll Forming Machine Highway collision avoidance facilities, isolation and other facilities. Mainly used for traffic security projects such as
highways, primary and secondary roads, provincial roads, county roads and rural road scenic spots, large parking lots, etc.

Specification

Item	Parameter
Product name	Highway guardrail roll forming machine
Main motor power	22KW with Cycloidal reducer
Hydraulic station power	5.5KW
Hydraulic oil	36#40# abrade oil
Thickness of material	3mm~4mm
Electric tension	380V 3phase 50HZ
Material of roller	GCR15 Bearing Steel quenched HRC58-62, hard chrome coated 0.05mm
Processing speed	12-16m/min
Processing precision	within 1.00mm
Material of cutting blade	Cr12 Mov
Transmission	Sprocket&Chain(1.5 inch)
Roller station	13 Rollers

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Highway Railing B Profile Roll Forming Machine Full Auto 0
