V Frame Racking Beam Pallet Rack Roll Forming Machine PLC Control

PLC Pallet Rack Roll Forming Machine

30m/Min Pallet Rack Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Warehouse Shelf V-Frame Racking Beam Pallet Rack Roll Forming Machine

HigzhControl Type:

PLC Control System-accuracy

Production Capacity:

15-30m/Min

Rolling Thincknes:

0.6 Mm ~ 1.5 Mm

Material Width:

135/ 170/ 180/ 215 Mm

Control System:

PLC Computer Control With Inverter

Power:

25KW

Frame:

400H Stee

Dimension(L*W*H):

4.8m*0.8m*1.2m

Weight:

3500 Kg

Voltage:

380 V/customized

Highlight:

PLC Pallet Rack Roll Forming Machine

30m/Min Pallet Rack Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

20 sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

Warehouse Shelf V-Frame Racking Beam Pallet Rack Roll Forming Machine

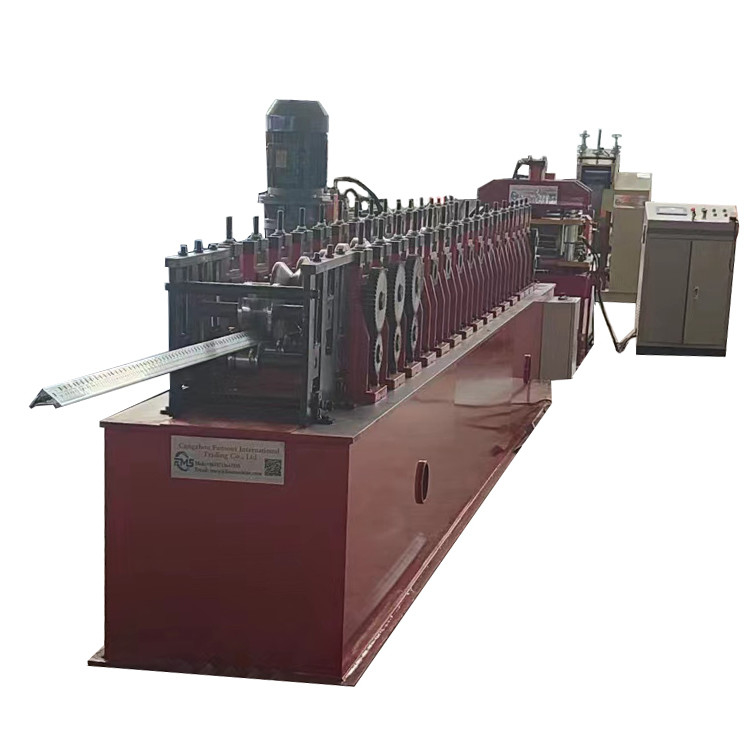

The picture shows the whole process of cold roll forming machine :
The machine is fully automatic and it is easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding
equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.

specifications

Type	Steel Frame & Purlin Machine
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Production Capacity	15-30 m/min
Place of Origin	China
Voltage	380 v/customized
Power	25KW
Dimension(LWH)	4.8m0.8m1.2m
Weight	3500kg
Warranty	1 Year
Key Selling Points	Low Noise Level
Dimension(LWH)	4.8m0.8m1.2m
Rolling thincknes	0.6 mm ~ 1.5 mm
Roller material	Cr12mov
Shaft material	High grade 45 # steel
Weight	3500 kg

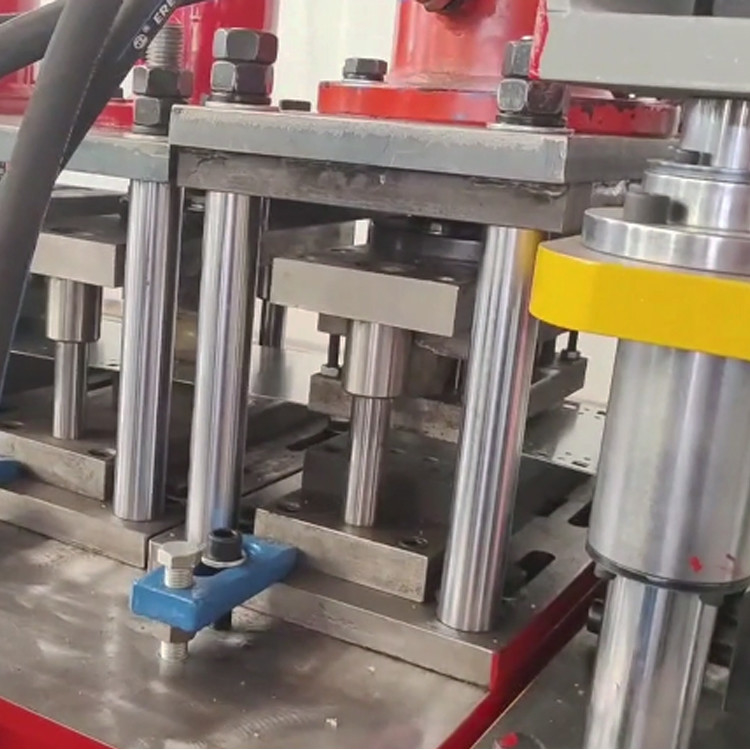

Profile cutting	Hydraulic cylinder
Control system	PLC HMI automatic programmable
Material width	135/ 170/ 180/ 215 mm

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.

V Frame Racking Beam Pallet Rack Roll Forming Machine PLC Control 0
