Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hot Sale 915 Floor Deck Roll Forming Machine Full Automatic Hydraulic System | Cutter Material: | Cr12 Mould Steel |
|---|---|---|---|
| Shafts: | 82mm Solid Steel | Feeding Width: | 1220mm (Can Be Designed As Per Buyer's Request) |
| Weight: | About 10T | Voltage: | 380V 50Hz 3phases |
| Production Capacity: | 25m/min. | Thinckness: | 0.8-1.2mm |
| Dimension(L*W*H): | 12000*1500*1500mm | Main Motor: | 11kw*2 |
| High Light: | Hydraulic System Floor Deck Roll Forming Machine,Hydraulic System deck roll former,Floor Deck Forming Machine Full Automatically |
||

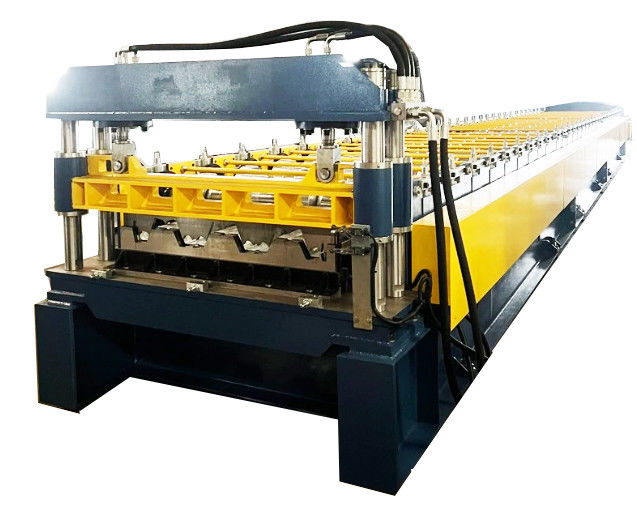

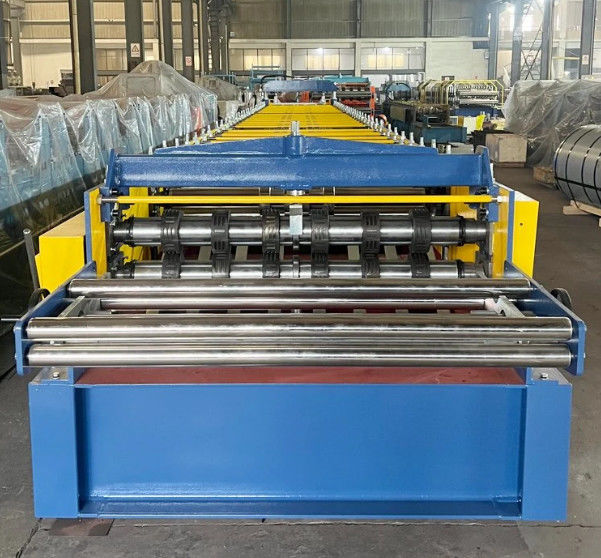

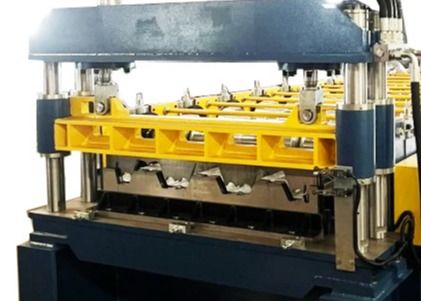

Hot Sale 915 Floor Deck Roll Forming Machine Full Automatic Hydraulic System
Hot Sale 915 Floor Deck Roll Forming Machine Full Automatic Hydraulic SystemWorking flow
Decoiler----feeding----roll forming----pressing----cut to length----output table
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly. We can also supply the customized machines.
Applications of Deck Floor Roll Forming Machine:
The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
Specification
| Suiting material | Galvanized coils |
| Forming speed | 25m/min |
| Machine frame | H450 |
| Roller Material | 45# Steel, plated chrome |
| Forming rollers qty. | 32 stations |
| Main motor | 11kw*2 |
| Feeding width or coil width | 1220mm (Can be designed as per buyer's request) |
| Material Thickness | 0.8-1.2mm |
| Applicable material | Galvanized coils(GI coils) |
| Yield strength of material | 235Mpa-350Mpa |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
