Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former 5.5kw

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

HigzhControl Type:

PLC Control System-accuracy

Production Capacity:

8-12m/Min

Material Thickness:

1-3mm

Blade:

At Buyer's Requirement

Control System:

PLC Computer Control With Inverter

Pump Power:

5.5kw

Frame:

400H Stee

Specification:

10*1.35*1.75m

Main Shaft Material:

40 Cr

Highlight:

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

20 sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Product name: Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Production Process: Decoiling - Feeding - Flattening - Lip forming - Flange forming - Angle forming - Straightening - Punching - Cutting - Stacking

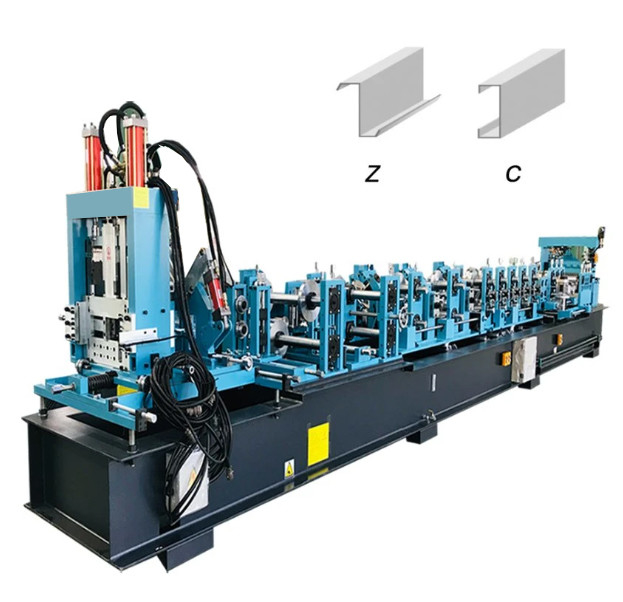

This automatic CZ purlin roll forming machine can produce both C and Z shape purlin, C Z shape change by computer automatically in 1 minute, which highly improve the efficiency and save space&time&cost.

It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel
2	Material thickness:	1.5 mm-3.0 mm
3	Capacity:	8-12m/Min
4	The weight:	13-15 ton
5	Roll Forming Machine Shaft Material	Cr12, Heat Treatment
6	Hydraulic Station	5.5kw
7	Specification	101.351.75m
8	Cutting Blade	Cr12MOV After Heat Treatment
9	Forming Stations	18
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
