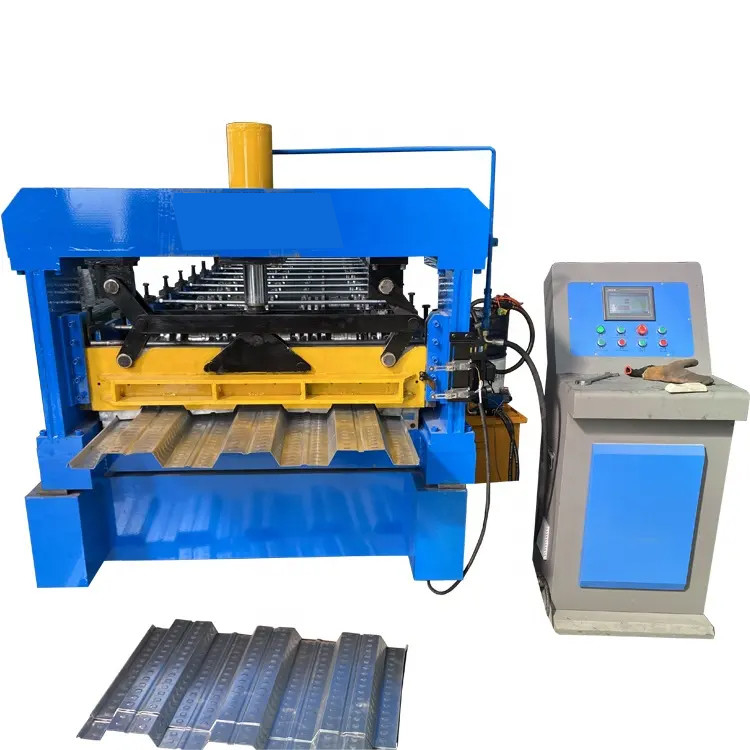

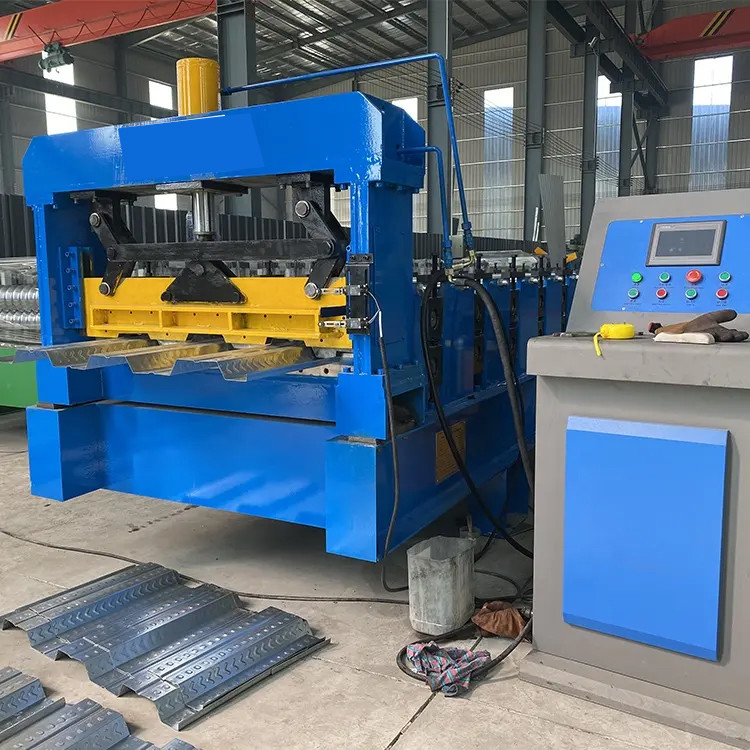

Steel Structure 1020 Floor Decking Roll Forming Machine With PLC System

Steel Structure 1020 Floor Decking Roll Forming Machine  With PLC System
Steel Structure 1020 Floor Decking Roll Forming Machine  With PLC System Steel Structure 1020 Floor Decking Roll Forming Machine  With PLC System

Large Image :  Steel Structure 1020 Floor Decking Roll Forming Machine With PLC System

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Floor Deck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Steel Structure 1020 Floor Decking Roll Forming Machine Hot Sale Indonesia Dimension(L*W*H): 12.5*1.8*2.0
Cutting Blade Material: Cr 12 High Grade Steel Control Type: PLC System
Roller Material: 45# Forged Steel Weight: 4500 Kg
Voltage: 380V 50Hz 3phases Production Capacity: 20M/MIN
Rolling Thinckness: 0.3-0.8mm
High Light:

1020 Floor Decking Roll Forming Machine

,

PLC System steel deck roll forming machine

,

PLC System Floor Decking Roll Forming Machine

Steel Structure 1020 Floor Decking Roll Forming Machine Hot Sale Indonesia


Steel Structure 1020 Floor Decking Roll Forming Machine Hot Sale Indonesia :

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables

   The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.

  The floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.



Specification

Steel Structure 1020 Floor Decking Roll Forming Machine Hot Sale Indonesia
Material thickness 0.3-0.8mm
Diameter of shaft(solid shaft) 70mm
Material of shaft (solid shaft) (high grade) 45# Steel, quenching and tempering treatment
Material of roller 45# steel polished and coated with chrome HRC55-60°
Reducer 8# cycloid reducer (high grade)
Cutting hydraulic cutting after roll forming
Control system PLC Frequency Control System with touch screen



Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
