| Product Name: | PPGI Double Layer Roll Forming Machine With Hydraulic Cutting | Dimension(L*W*H): | 560*150*160cm |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Production Capacity: | 8-15 M/min |
| Rolling Thinckness: | 0.3-0.8mm | Shaft Material: | 45# Steel Forging Treatment |
| Voltage: | 380V 50Hz | Feeding Width: | 1250mm, 1250mm |
| Cutting Blade Material: | Cr 12 High Grade Steel | Weight: | 2500 Kg |
| High Light: | Double Layer Roll Forming Machine Hydraulic Cutting,galvanized roll forming machine Hydraulic Cutting,Double Layer Roll Forming Machine 15m/Min |
||

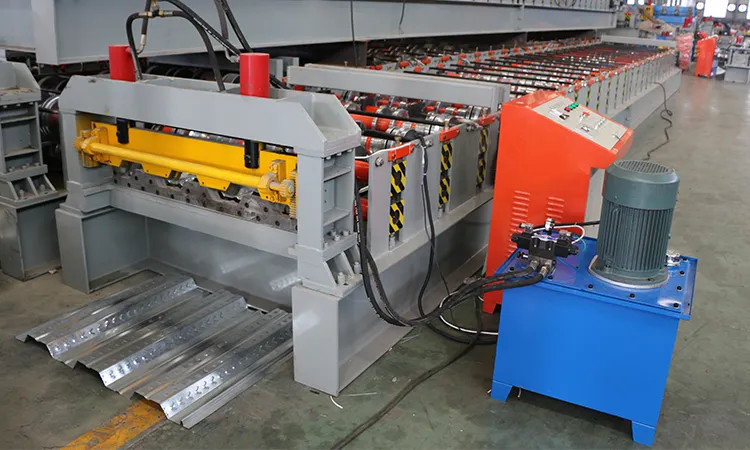

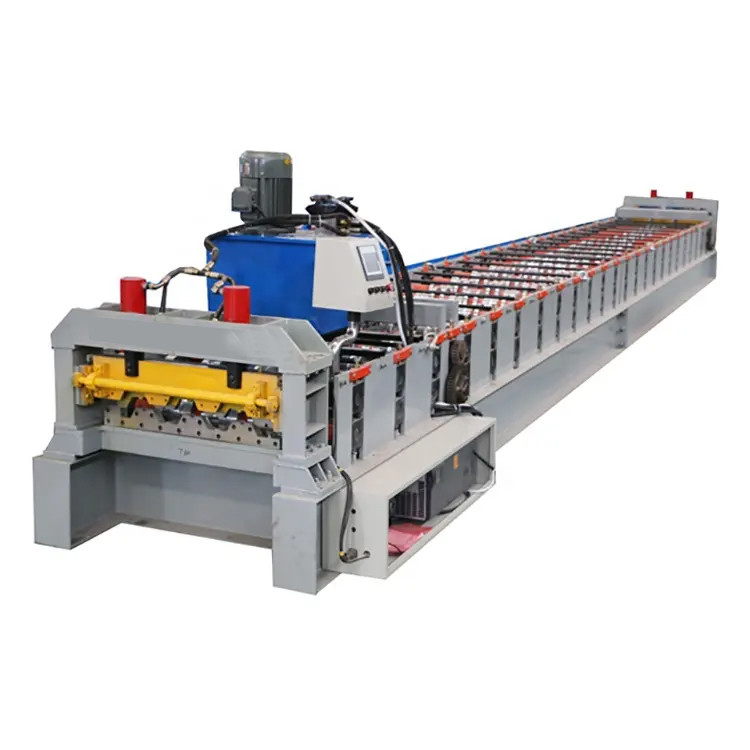

PPGI Double Layer Roll Forming Machine With Hydraulic Cutting
PPGI Double Layer Roll Forming Machine With Hydraulic Cutting popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
We sell lots of double layer roll forming machine to Peru, Brazil, Colombia, Chile etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
1) This double layer oof sheet roll forming machine adopts coil production material to form 2 different roofing profiles through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.
2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
Specification
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
914mm/1000mm/1200mm/1220mm/1250mm
|
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one, can load 5 tons raw material
|
|
5
|

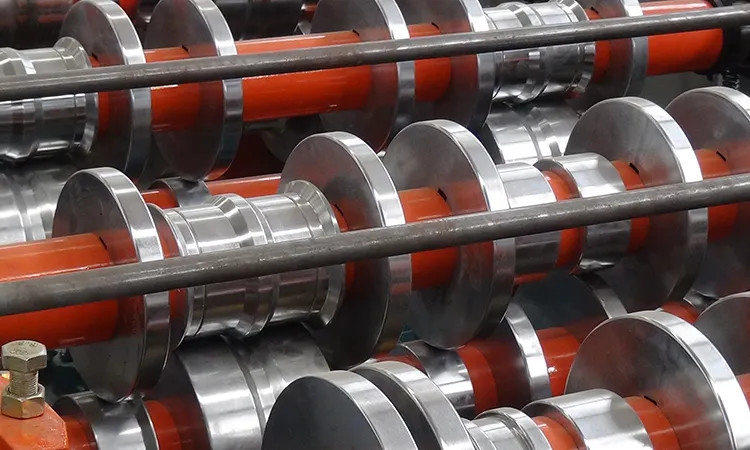

Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 3T
|
|
16
|
Dimensions
|
5.6*1.2*1.5m
|
|
17
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer's requirements
|
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
