Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hot Sale PPGI Downspout Roll Forming Machine Full Automatic 10m / Min Speed | Production Capacit: | 7-10m / Min |
|---|---|---|---|
| Power: | 11KW | Dimension(L*W*H): | 8.5m*1.7m*1. 2m |
| Weight: | 4500 Kg | Voltage: | 380V 50Hz 3phases Or As Requirements |
| Hydraulic Station Motor:: | 4kw | Thickness: | 0.3-0.8mm |
| High Light: | PPGI Downspout Roll Forming Machine,Downspout Roll Forming Machine 10m/Min,downspout forming machine fast Speed |
||

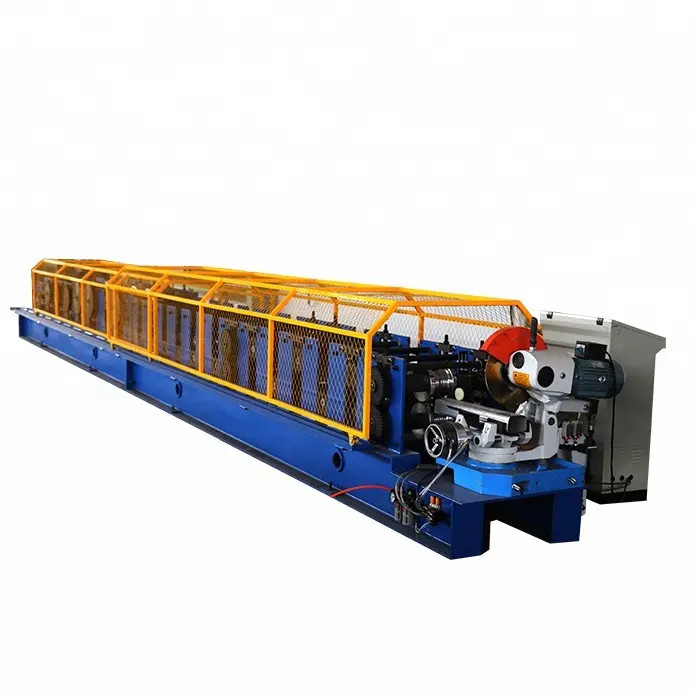

Hot Sale PPGI Downspout Roll Forming Machine Full Automatic 10m / Min Speed
Hot Sale PPGI Downspout Roll Forming Machine Full Automatic 10m / Min Speed
Uncoiling---main roll former---measure to length---fly saw cutting---product collect table

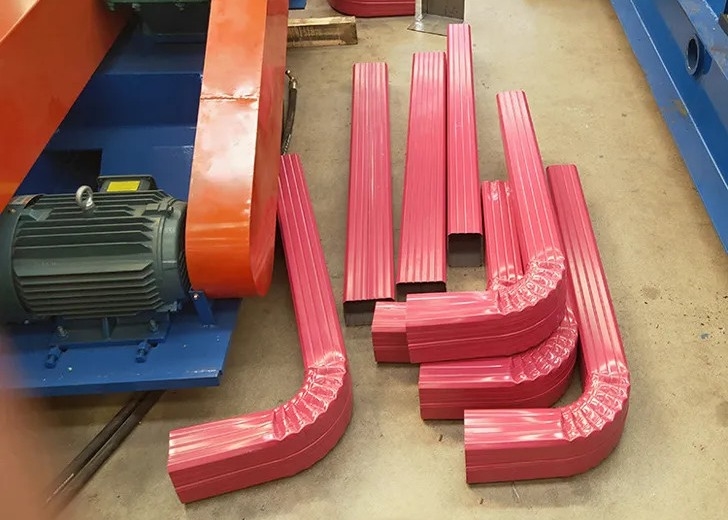

automatic control PPGI steel Downspout making Machine downspout machine and Bending Machine adopts new high-tech, owning higher speed and lower noise.All machines can be customized. Machine frame is Wall plate welded, plate thickness of 16mm, which is durable for many years.
Long Life Machine]Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.High Precision]Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.Automatic & Easy Operate]Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
Specification
| Item | Name | Description |
| 1 | Decoiler | Capacity:5 tons |
| 2 | Material | Steel Coil |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Transmission | Chain/Gear/Gearbox |
| 5 | Speed | 10-15m/min |
| 6 | Roller | Steel with quenched treatment,chromed on the surface |
| 7 | Shaft | steel with tempering treatment |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Cutting material | Cr12 with quenched treatment Hardness58°-62° |
| 10 | Welding | Automatic spot welding |
| 11 | Control system | PLC |
| 12 | Electric brand | Delta,Siemens,Schneider |
| 13 | Voltage | 380V,50HZ,3PH(or as customers' request) |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
