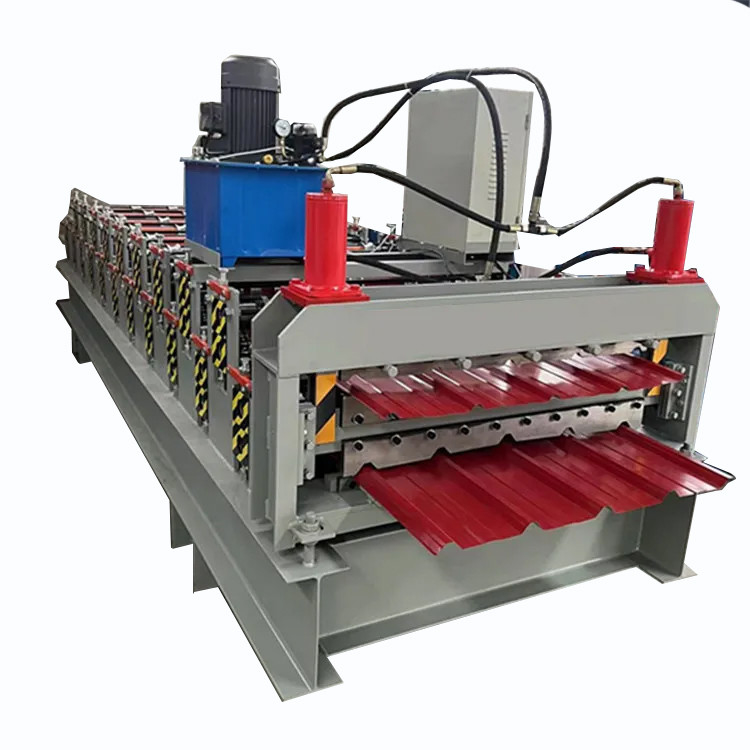

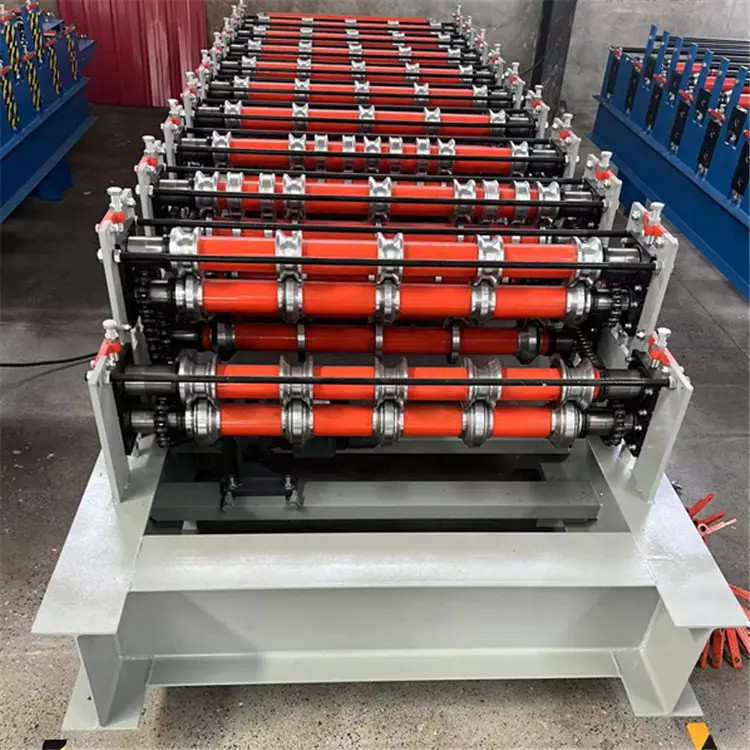

Automated PPGI material Double Layer Roll Forming Machine Color Steel Tile Making Machine

Automated PPGI material Double Layer Roll Forming Machine Color Steel Tile Making Machine

Automated Double Layer Roll Forming Machine

Automated Color Steel Tile Making Machine

PPGI material Double Layer Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Double Layer

Contact Us
Request A Quote
Automated PPGI material Double Layer Roll Forming Machine Color Steel Tile Making Machine
Automated PPGI material Double Layer Roll Forming Machine Color Steel Tile Making Machine Automated PPGI material Double Layer Roll Forming Machine Color Steel Tile Making Machine
Product Details
Product Name:
High Quality Automatic Double Layer Roll Forming Machine Color Steel Tile Making Machine
Dimension(L*W*H):
6*1.5*1.3 M
Raw Material:
PPGI
Working Speed:
8-15 M/min
Rolling Thinckness:
0.3-0.8mm
Shaft Material:
45# Steel
Pow Supply:
380v/50HZ,3P, Or Customize
Profile:
As Customer Requested
Cutting Blade Material:
Cr 12 High Grade Steel
Control System:
PLC(imported Brand)
Highlight:

Automated Double Layer Roll Forming Machine

,

Automated Color Steel Tile Making Machine

,

PPGI material Double Layer Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price 2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 online Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

High Quality Automatic Double Layer Roll Forming Machine Color Steel Tile Making Machine

High Quality Automatic Double Layer Roll Forming Machine Color Steel Tile Making Machine

The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screws which makes the machine flexible and stronger. All the components of the machine are from brand-famous enterprises so they ensure the machine's normal function very effectively. It makes different shapes of color steel roof sheet, which is used for buildings, factories, supermarkets, etc. We adopt the automatic length-fixed forming and cutting to guarantee the length is precise and the finished product clear without deforming. It is very easy to install the equipment and suitable for production in the factory. Low noise with high efficiency.


Specification

Part Details
Item Name
Specification
Material
Raw material
PPGI
Thickness
0.3-0.8 mm
Machine
Roller station
Depending on the customer's drawing
Shaft diameter
70 mm
Shaft material
45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC
45# steel with 0.05mm chrome
Machine size
About 6×1.5×1.3 m
Machine weight
About 5.5 ton
Machine color
As the customer's request
Working speed
8-15 m/min
Cutter
Hardness
50-65 HRC
Cutting tolerance
± 1 mm
Material
Cr 12
Operate
Hydraulic cutting
Power
Driving way
Chain 1 inch
Main power
5.5 kW
Pump power
7.5 kW
Voltage
380v/50HZ,3P, or customize
as customer's request
Control system
PLC brand
Delta made in Taiwan
Screen
Touchable screen
Language
Chinese and English or add language as customer need
Decoiler
Operation
Manual
Weight capacity
5 ton
Price
Free as Gift
Receiving table
Operation
Manual
Length
3 m
Price
Free as Gift



Guarantee





  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

  30% in advance as down payment
  70% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.

Automated PPGI material Double Layer Roll Forming Machine Color Steel Tile Making Machine 0
