Product Details:
Payment & Shipping Terms:
|
| Product Name: | Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine | Dimension(L*W*H): | 7.5m*1.6m*1.4m |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Production Capacity: | 15m/min |
| Weight: | 3500 Kg | Material Of Roller: | 45# Cr Plated |
| Pow Supply: | 380V 50Hz 3phases(customizable) | Machine Cutter Material: | CR12 |
| Thickness Of The Plate: | 0.3-0.8mm | Control System: | PLC Control |
| High Light: | Customizable Cold Roll Forming Machine,Customizable Double Layer Roll Forming Machine,Cold Roll Forming Machine 15m/min |
||

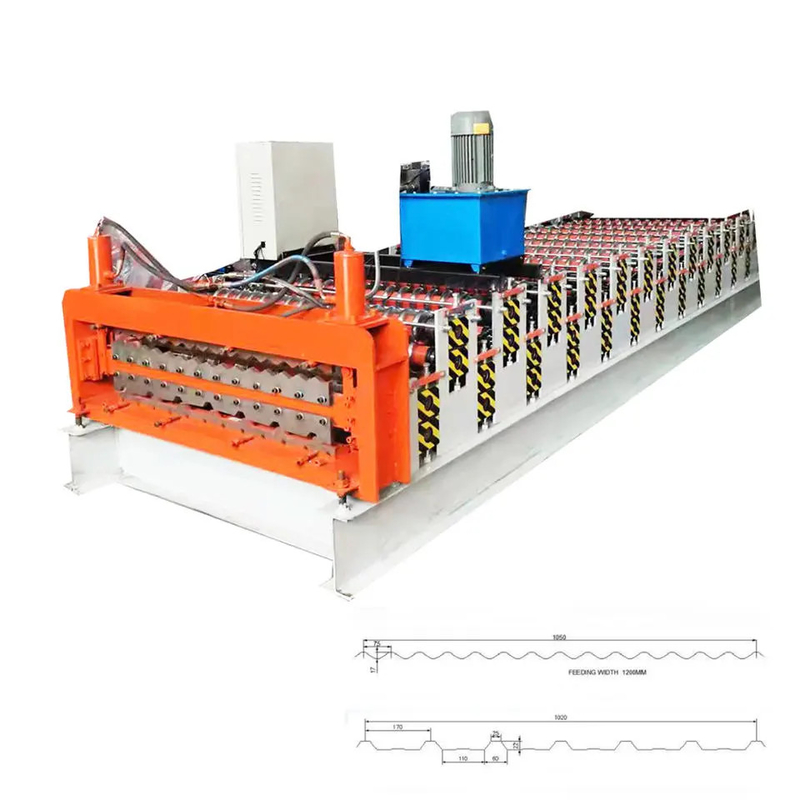

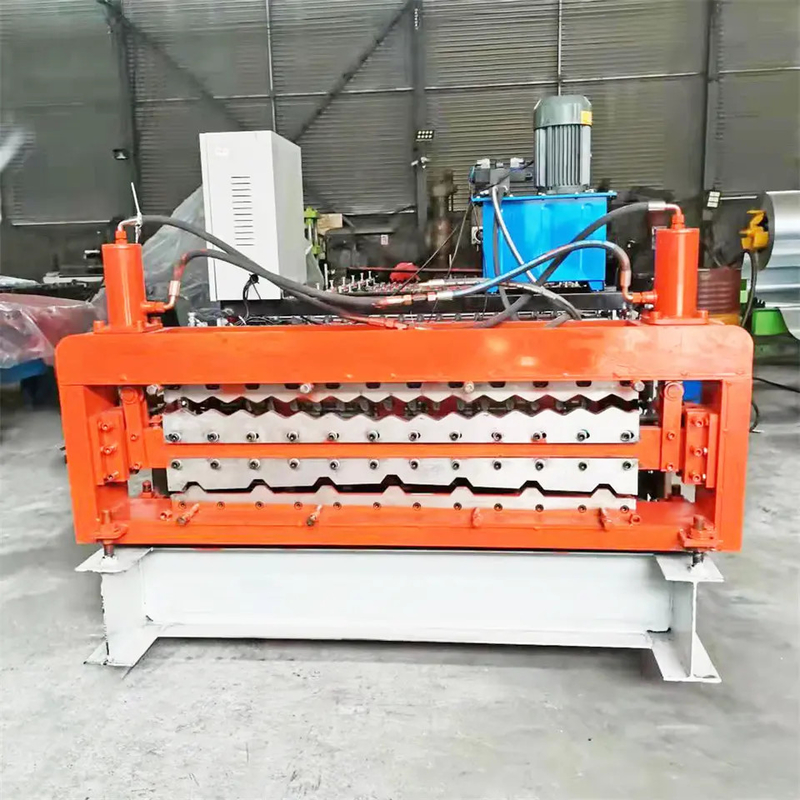

Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine
The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.
Specification
|
No
|
Item
|
Data
|
|
1
|
Raw material width
|
1000-1200 mm
|
|
2
|
Sheet effective width
|
750-1000 mm
|
|
3
|
Raw material
|
Color steel sheet or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
7
|
Shaft diameter
|
70mm
|
|
8
|
Control system
|
PLC control
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
